      [LS 1200d Pro] Manual Light Mode

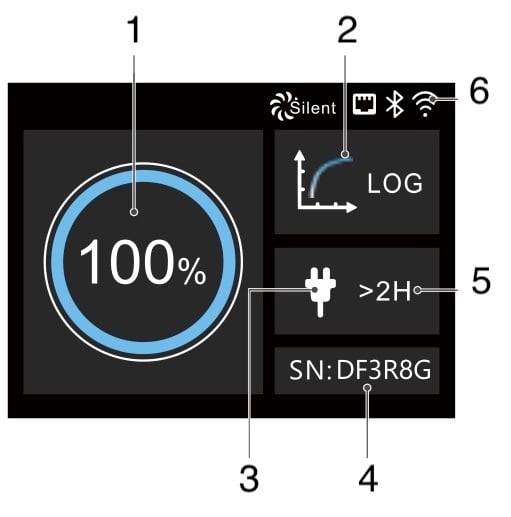

      LS 1200d Pro Light Modes

      ls_1200d_pro_light_mode-1

      1. Brightness
      2. Dimming curve
      3. AC/DC Power Symbol
      4. Bluetooth series No.
      5. Remaining time display
      6. Wireless Mode

      Manual Control

      Rotate the Select Wheel to adjust the intensity of the light from 0-100% in 0.1% increments. The speed with which you turn the knob will change the rate of increase or decrease.

      Screen Shot 2023-07-12 at 11.00.10 AM

      Custom FX

      Press the MENU button to enter the menu interface. Rotate the Select Wheel and press to enter the Custom FX. You can choose to enter Picker FX, Music FX, or Touchbar FX interface. Each type can save 10 custom FXs. In the name of each FX, "NO FX" means unsaved FX, and "Untitled" means saved FX.

      Screen Shot 2023-07-12 at 11.03.30 AM

      Effects

      Press the Effects Button to enter the Effects Mode. Rotate the Select Wheel to select and press to enter the Effects interface. You can choose from Paparazzi, Firework, Faulty Bulb, Lightning, TV , Pulsing, Strobe and Explosion effect.

      1) Short press the Select Wheel to select brightness adjustment. Rotate the Select Wheel to change the brightness of the lamp between 0%~100%.

      2) Short press the Select Wheel to select frequency adjustment. Rotate the Select Wheel to change the frequency of the lamp between 1~10; R means random.

      3) In any Lighting Mode, you can return to the regular lighting interface directly by pressing the Lighting Button.

      4 ) In Lighting Mode, you can return to the light effect interface by pressing the Effects Button.

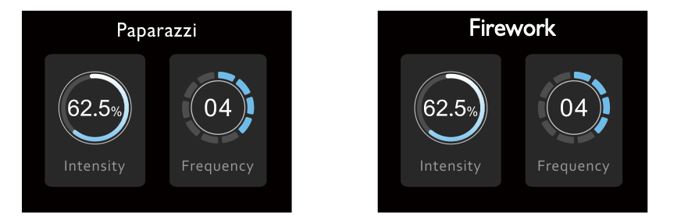

      Paparazzi Effect                                             Firework Effect

      Screen Shot 2023-07-12 at 1.37.47 PM

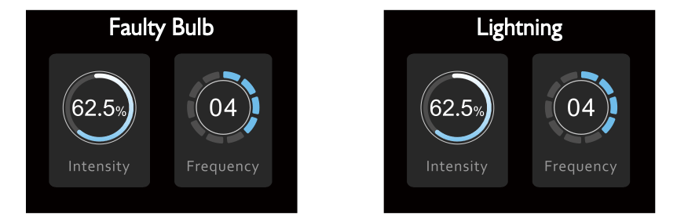

      Faulty Bulb Effect                                          Lightning Effect

      Screen Shot 2023-07-12 at 1.37.58 PM

      * In Lighting FX mode, manually short press the Effect Button to trigger the lightning single mode; manually long press the Effect Button to enter the lightning cycle mode. Long press the Effect Button again to exit the lightning cycle mode.

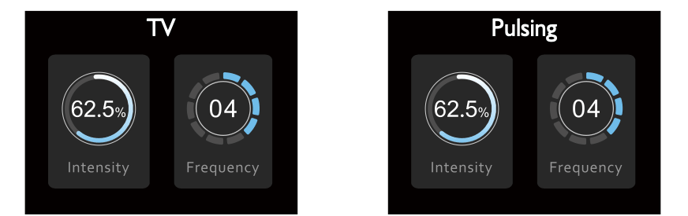

      TV Effect                                                         Pulsing Effect

      Screen Shot 2023-07-12 at 1.38.10 PM

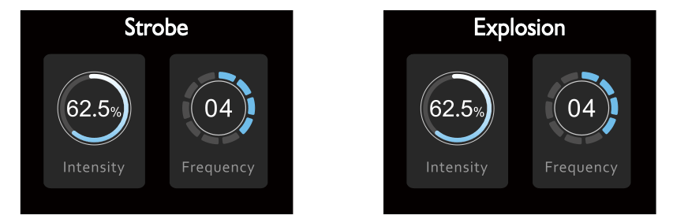

      Strobe Effect                                                  Explosion Effect

      Screen Shot 2023-07-12 at 1.38.25 PM



      *In the Explosion FX mode, the light effect needs to be triggered by the Effect Button--each press of the button causes another Explosion Effect.
