[LS 300d II] 2.4G Handheld Remote Control

Using the Remote Control of LS 300d II

LS300d II

You can control the LS C300d II from any channel or group configuration.

* Light Storm lights have three channels (1/2/3) and four groups (A/B/C/D).

1) Configuring channel and group settings on the control box

Press the CHANNEL button to toggle between channels 1, 2, & 3.

ls300dII-ls300x_channel_button

Press the GROUP button to toggle between groups A, B, C, & D

ls300dII-ls300x_group_button 2) Configuring channel settings on the remote

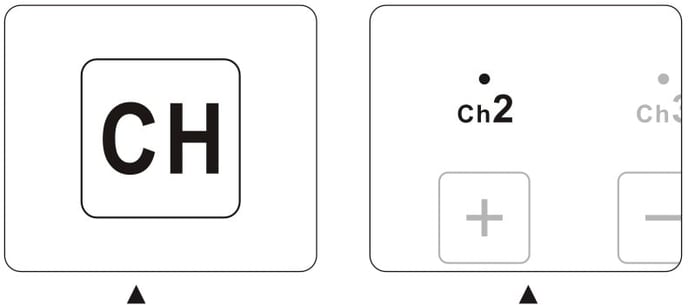

ls_300dII-300x_configuring_channel Press the CH button to toggle "ch2" indicator lights between channels 1,2, and 3

3) Adjusting brightness
Press A/B/C/D to toggle the lights on or off, press ( [+] / [－] ) to adjust the brightness of the light from 0 to 100% accordingly.

ls300dII-ls300x_adjusting_brightness

This remote will not work in either DMX or DMX FX Modes.

The remote control will only control the operation if the lights is in 2.4Ghz wireless connectivity mode.

FX Control

Press the (FX + C / D) button to enter or exit the lighting effect mode. Press the (FX + [+] / [－]) to toggle different effects.

Press the ([+] / [－]) buttons to adjust the output of the light. Press the ( ◀︎ / ▶︎ ) buttons to toggle the effect frequency.

ls300dII-ls300x_fx_control_1

A. Enter of Exit Effect Mode

ls300dII_fx_control_2

A. Paparazzi Mode

B. Fireworks Mode

C. Faulty bulb Mode

D. Lighting Mode

E. TV Mode

F. Pulsing Mode

G. Strobe Mode

H. Explosion Mode

Only the "FX + "C and D" can be used to control lighting effects, while groups "A and B" can only be used for normal brightness adjustments turning lights on and off.
