      [LS 300d II] Light Configuration & Settings

      System Menu of 300d II

      LS300d II

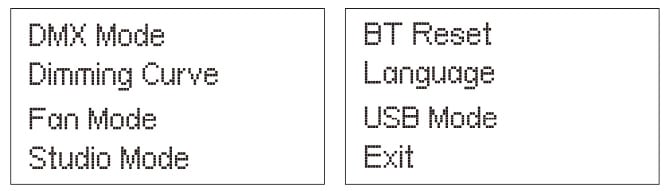

      Press the MENU button to enter the system menu interface, as shown below.

      ls300dII_system_menu_interface

      1) DMX mode
      Press the MENU button to enter the system menu, rotate the dimming wheel to select DMX mode and press the MENU button again to enter DMX mode.ls300dII-ls300x_dmx_mode

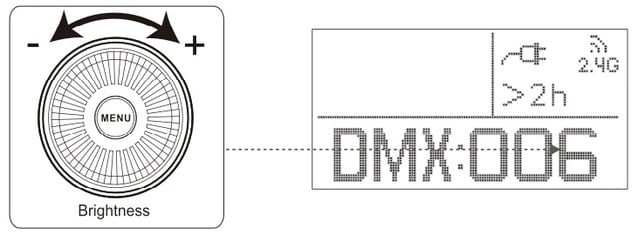

      When in DMX mode, rotate the brightness control wheels to set the device's DMX channel. Then press the MENU button to take you back to the Menu interface.

      ls300dII-ls300x_dmx_mode_brightness_controll

      2) Dimming curve mode

      Press the MENU button to enter the system menu, rotate the dimming wheel to select Dimming Curve, and press the MENU button again to enter the dimming curve selection menu. Using the wheel to choose from exponential (Exp), logarithmic (Log), S-Curve, or linear dimming curves, and press the MENU button to make your selection.

      ls300dII_dimming_mode3) Fan mode
      Press the MENU button to enter the system menu, rotate the dimming wheel to select Fan Mode, and press the MENU button again to enter Fan Mode. Use the wheel to select between Force* and Auto, then press the MENU button to confirm your selection.

      ls300dII-ls300x_fan_mode

      In "Force Mode" the fan will continuously spin at its maximum speed. In "Auto Mode" the fan will only begin spinning when the light has reached 45°C.

      4)  Studio mode
      Press the MENU button to enter the system menu, rotate the dimming wheel to select Studio Mode, and press the MENU button again to enter the Studio Mode menu. Once in the menu, use the wheel to choose between "YES"*** or "NO" and press the MENU button to confirm your selection.

      ls300dII-ls300x_studio_mode

      When Studio Mode is active, the light will turn on as soon as it receives power, without having to press the power button.

      Studio Mode is active as the factory default.

      5) Bluetooth reset
      (1) Press the MENU button to enter the system menu, rotate the dimming wheel to select BT Reset. Press the MENU button again to enter the Bluetooth Menu. Use the wheel to select "YES" to reset the Bluetooth pairing (the pop-up window displays the current reset progress and is completed within 5 seconds); or select "NO" to return to the previous menu.

      ls300dII-ls300x_bluetooth_reset

      (2) After resetting the light's Bluetooth connection, your mobile phone or tablet will be able to connect to and control the light.
      (3) If the Bluetooth Reset fails, a [Reset Failed] screen will pop-up, and the light will return to Bluetooth mode after 2 seconds.The light must be connected to your mobile device using the Sidus Link mobile application, and not via your device's typical Bluetooth connection menu.

      The Bluetooth reset function must be performed when the light is in Bluetooth wireless connectivity mode.

      The light must be connected to your mobile device using the Sidus Link mobile application, and not via your device's typical Bluetooth connection menu.

      6) Language
      Press the MENU button to enter the system menu, rotate the dimming wheel to select Language, and press the MENU button again to enter the Language menu. Use the wheel to select from the available languages. Initial languages include "English" and "Chinese".

      ls300dII-ls300x_language

      The factory default language is English.

      Enter the language selection interface and select "English" or "中文".

      7) USB Mode
      (1) The control box has a built-in USB port for firmware updates (for both the control box and lamp head).
      (2) To update the light's firmware, press the MENU button to enter the system menu, rotate the dimming wheel to select USB Mode, and press the MENU button again to enter the Update menu. Use the wheel to select "YES" or "NO". If a USB flash drive containing a firmware update is mounted in the USB port, the screen will display an update progress bar.
      (3) If a USB flash drive is not inserted into the USB port of the flash drive does not contain a firmware upgrade file, entering the Update menu and choosing "YES" will return you to the system menu interface.

      ls300dII-ls300x_usb_mode_update

      Only FAT16 and FAT32 storage formats can be used for firmware updates. Incompatible formats will result in the screen displaying a format error and will return to the main menu.

      DO NOT unplug the light or the USB flash drive during the update process. In the case of an unexpected power failure, DO NOT remove the USB flash drive. When the power is restored, the fixture will automatically resume the update process. After successfully updating the firmware, the fixture will automatically restart.
