      [LS 300d II] User Interface Details

      Fixture Buttons, Parts and Ports of LS 300d II

      Light

      ls_300dII_light

      1. Bowens Mount Release Latch

      2. Bowens Mount

      3. COB LED

      4. 55° Reflector

      5. Ratcheting Disk Brake Handle

      6. Tie Down

      7. 5/8 in. Receiver/Mounting Column

      8. Cable Relief Hook

      9. Yoke

      10. 5-Pin Male XLR Receiver

      11. UID

      12. Label

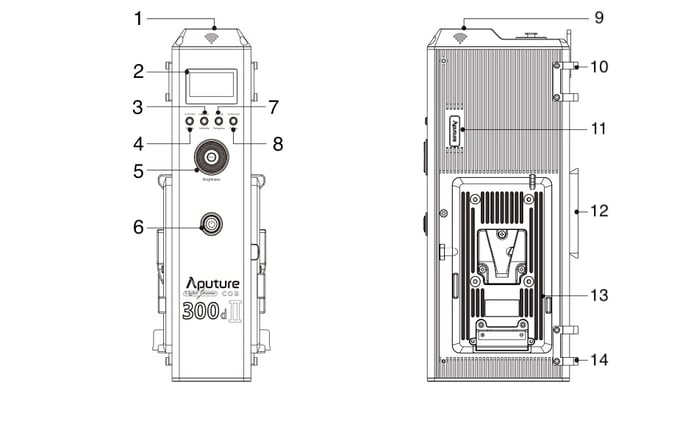

      Controller Box

      ls_330dII_controller_box

      1. Paracord Strap Plate
      2. OLED Display
      3. Channel Setting / FX: Intensity Selection
      4. Lighting Control Mode / FX: Lighting Effects Selection
      5. Brightness Control Wheel / Menu Button
      6. Power Button
      7. Group Setting / FX: Frequency Selection
      8. Wireless Control Selection / FX: Trigger
      9. Antenna Box
      10. Floor Stand
      11. USB Port
      12. Quick-Release Plate
      13. Battery Plate (*Anton Bauer or V-mount)
      14. Floor Stand

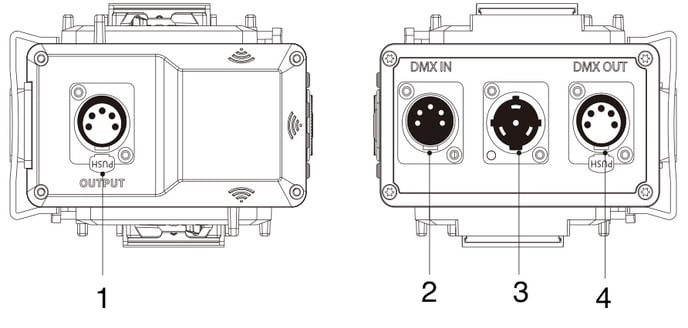

      ls300dII_product_details-2

      1. 5-Pin Female XLR Power Output
      2. DMX IN Port
      3. NEUTRIK powerCON Power Input
      4. DMX OUT Port
