      [LS 300d II] Wired DMX Control

      Connecting & Controlling via DMX LS 300d II

      LS300d II

      DMX control

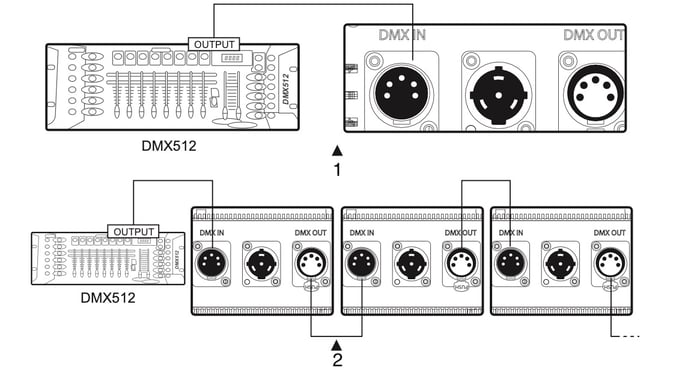

      1) Connect a standard DMX controller

      ls300dII-ls300x_connecting_to_dmx

      1. Connecting DMX to only one 300d II

      2. Daisy chaining multiple lights using DMX

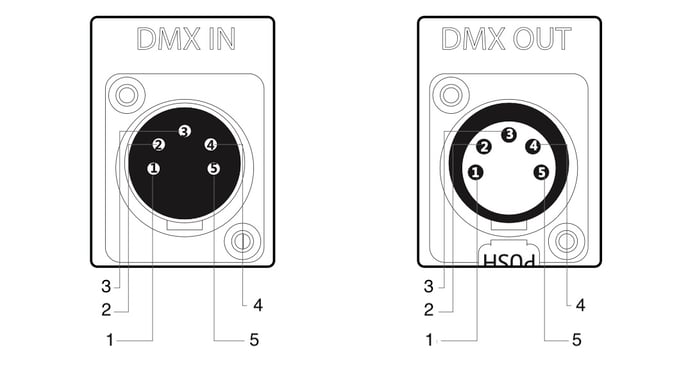

      See the DMX interface definition as seen in the pictures below:

      ls300dII-ls300x_dmx_interface_schematic

      1. Signal Common
      2. Data 1- (Primary Data Link)
      3. Data 1+ (Primary Data Link)
      4. Data 2- (Optional Secondary Data Link)
      5. Data 2+ (Optional Secondary Data Link)



      2) DMX Control

      In DMX mode, match the channel of your DMX controller with the light, and then adjust
      accordingly.

      The default DMX channel is "001".

      The range of DMX channels is 1 to 512.

      Controlling Effects Via DMX

      1) Connect the DMX controller's OUTPUT to the 300x's controller INPUT  as shown in the figure below.

      ls300dII-ls300x_controlling_device_via_dmx

      2) DMX Control

      DMX Channel Values / Functions

      (5 DMX Channels)
      Channel Value  Function
      1   Dimmer
      0-255 Intensity 0 to 100%
      2   Mode Selection
      0-127 Manual Mode
      128-255 FX Mode
      3   FX Control
      0-19 Paparazzi
      20-39 Fireworks
      40-59 Fault Bulb
      60-79 Lighting
      80-99 TV
      100-119 Pulsing
      120-139 Strobe
      140-159 Explosion
      160-255 Undefined
      4   FX Frequency Control
      0-19 1
      20-39 2
      40-59 3
      60-79 4
      80-99 5
      100-119 6
      120-139 7
      140-159 8
      160-179 9
      180-199 10
      200-219 R
      220-255 Undefined
      5   IN Lighting mode
      0 Start Point
      1-127 Single Trigger
      128-255 Cycle Mode
        IN Explosion Mode
      0 Start Point
      1-127 Single Trigger
      128-255 Undefined

      In DMX mode, intensity and FX frequency can only be controlled by a DMX controller.

      Controlling multiple lights using DMX: When controlling multiple 300d II lights independently (i.e., A and B), offset each light by 5 channels. If you set light A at DMX 001, set light B at DMX 006, to control A via CH 1 to CH 5 and to control B via CH 6 to CH 10 on the DMX controller.
