      [LS 300x] Fixture Buttons, Parts and Ports

      Fixture Buttons, Parts, and Ports LS 300x

      LS 300x

      Light

      ls_300x_light

      1. Bowens Mount Release Latch

      2. Bowens Mount

      3. LED Light Source

      4. Optical Blending Prism

      5. 55° Hyper-Reflector

      6. Ratcheting Disk Brake Handle

      7. T-Handle / Baby Pin Mounting Screw

      8. Baby Pin Receiver/Mounting Column (5/8in. / 16mm)

      9. Cable Relief Hook

      10. Yoke

      11. 5-Pin Male XLR Receiver

      12. UID

      13. Label

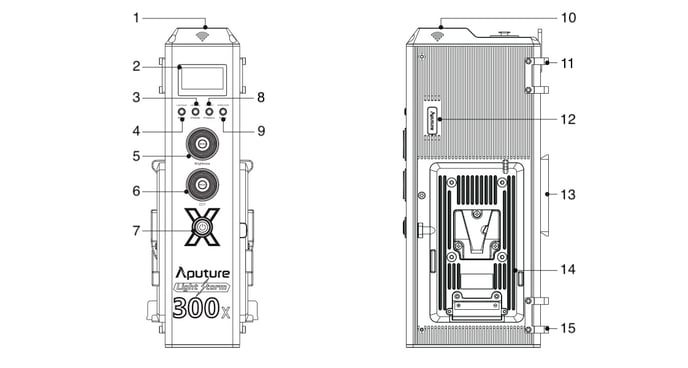

      Controller Box

      ls_300x_controller_box

      1. Paracord Strap Plate
      2. OLED Display
      3. Channel Setting / FX: Intensity Selection
      4. Lighting Control Mode / FX: Lighting Effects Toggle
      5. Brightness Control Wheel / Menu Button
      6. CCT Control Wheel / Preset Button
      7. Power Button
      8. Group Setting / FX: Frequency Selection
      9.  Wireless Control Selection / FX: Trigger
      10. Antenna Box
      11. Floor Stand
      12. USB Port
      13. Quick-Release Plate
      14. Battery Plate (*Anton Bauer or V-mount)
      15. Floor Stand

      LS300x

      ls300dII-ls300x_controller_box

      1. 5-Pin Female XLR Power Output
      2. DMX IN Port
      3. Neutrik® powerCON Power Input
      4. DMX OUT Port
