[LS 300x] Getting Started

Setting up the LS 300x

1. Installing the cable relief hook

2. Attaching/detaching the protection cover

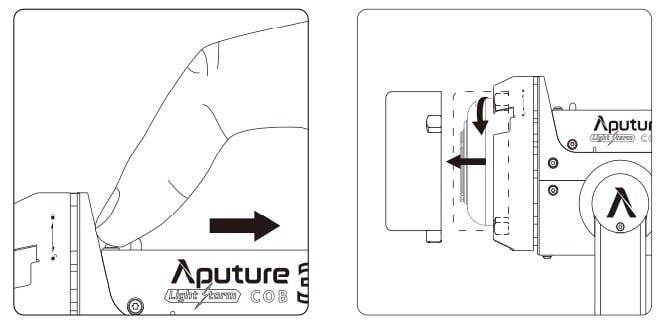

Pull back the retaining pin, rotate the cover clockwise, then detach the cover.

To reattach the cover, insert it into the Bowens mount and rotate counterclockwise.

ls300dII-ls300x_attaching_protection_cover

Notice: Always remove the protection cover prior to turning on the light. Always re-install the cover when packing it away.

3. Attaching/detaching the reflector/Hyper-Reflector

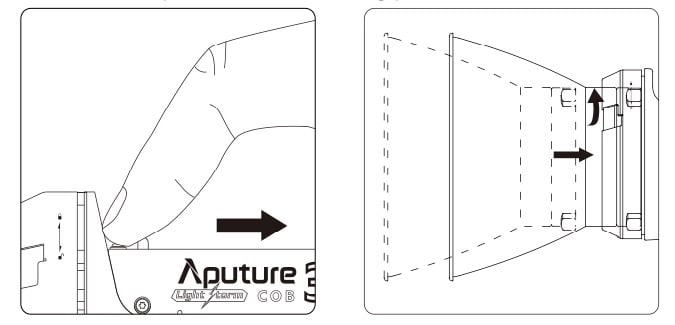

To install the reflector, pull back the retaining pin, insert the reflector into the Bowens mount, and rotate it counterclockwise as shown in the following pictures.

To remove the reflector, pull back the retaining pin and rotate the reflector clockwise.

4. Instructions for the Quick-Release Clamp/"Lightning Clamp"

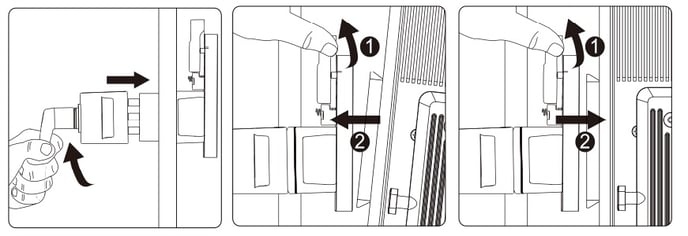

1) Clamp the Lightning Clamp/"Lightning Clamp" onto a light stand.
2) To attach the control box, rotate the release lever to unlock the quick-release
baseplate, then mount the control box onto the Lightning Clamp (the release
lever will automatically spring back).
3) To remove the control box, grasp it firmly, then unlock the quick-release plate by
turning the release lever, and detach the control box.

ls300dII-ls300x_quick_release_clamp

Specifications

Weight	670g/1.48lbs	Sizes (LWH)	10.35x8.74x12.5cm / 4.07x3.44x4.92in
The Quick-Release Clamp / "Lightning Clamp" can clamp onto square or round pipe with a diameter between 2-5cm or 0.79-1.97in.

5. Connect the light to the control box

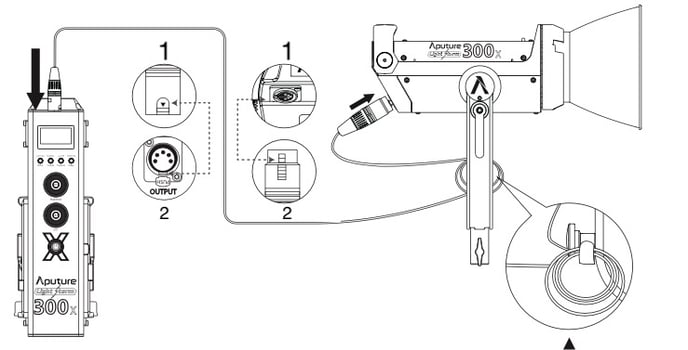

Connect the light to the control box using the 5-Pin Male-to-Female XLR Head Cable.

ls300dII-ls300x_connect_light_control_box

*Hang the cable from the head cable relief hook
to manage and reduce tension on the cable.

XLR Locking Slot
XLR Locking Tab

Disconnect the XLR head cable by pushing down on the locking tabs on the female XLR connectors, then remove the cable.
