[LS 300x] Using the Remote Control

Using the Remote Control of LS 300x

LS300x

You can control the LS 300x from any channel or group configuration.

Light Storm lights have three channels (1/2/3) and four groups (A/B/C/D).

Only groups "C" or "D" can be used to control brightness, CCT and lighting effects, while groups "A" and "B" can only be used to control brightness.

1) Configuring channel and group settings on the control box
Press the CHANNEL button to toggle between channels 1, 2, & 3.

ls300dII-ls300x_channel_button Press the GROUP button to toggle between groups A, B, C, & D

ls300dII-ls300x_group_button 2) Configuring channel settings on the remote

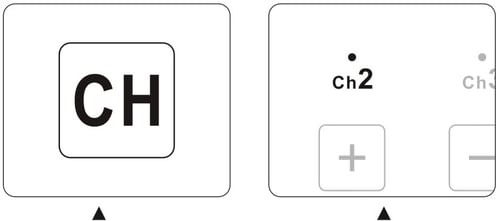

ls_300dII-300x_configuring_channel Press the CH Button to toggle "ch2" indicator lights between channels 1,2 and 3

3) Adjusting brightness

Press A/B/C/D to toggle the lights on or o, press ( [+] /[－] ) to adjust the brightness of the light from 0 to 100% accordingly.

ls300dII-ls300x_adjusting_brightness

This remote will not work when the light is in DMX mode.

The remote control will only control the operation of the light when the fixture is in 2.4Ghz Wireless Control Mode

4) CCT Control
In normal light control mode, press the ( ◀︎ / ▶︎ ) buttons to adjust the light's output CCT.
In FX Mode, press the ( FX+◀︎ / ▶︎) buttons to adjust the lights output CCT.

The remote control can only be used to adjust CCT if the lights are in groups C or D

5) FX Control
Press the ( FX + C / D ) button to enter or exit lighting effect mode. Press the ( FX + [+] / [－] ) to toggle between different effects.
Press the ( [+] /[－] ) buttons to adjust the output of the light. Press the ( ◀︎ / ▶︎) buttons to toggle the effect frequency.

ls300dII-ls300x_fx_control_1

A. Enter or Exit Effect Mode

LS300x_fx_control_2

A. Paparazzi Mode

B. Fireworks Mode

C. Faulty Bulb Mode

D. Lightning Mode

E. TV Mode

F. Pulsing Mode

G. Strobe Mode

H. Explosion Mode

I. Fire Mode

The remote control can only be used to operate lighting effects if the lights are in groups C or D.
