      [LS 600c Pro] Manual Light Modes

      LS 600c Pro Light Modes

      To enter Manual Light Mode, press the LIGHT MODE button on the control box and select the mode:

      • CCT

      • Adv. HSI

      • FX

      • RGB

      • X Y

      • Source

      • GEL

      CCT

      Press the LIGHT MODE button to enter the light mode interface; rotate the Select Wheel

      and short press to CCT. You can adjust Intensity (0-100%), Correlated Color Temperature (2300K - 10000K), and Green/ Magenta adjustment (-1.0 to+ 1.0).

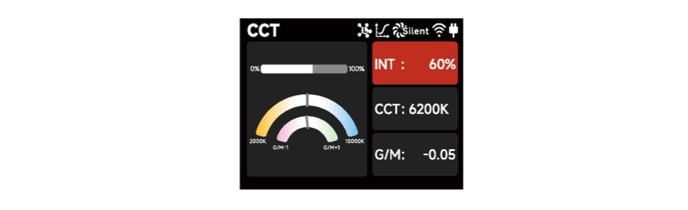

      Screen Shot 2023-07-07 at 7.09.56 PM

      Adv. HSI

      Press the LIGHT MODE button to enter the light mode interface; rotate the Select Wheel and short press to Adv. HSI. You can adjust Intensity (0-100%), Hue(l-360°), Saturation(0-1 00%), and Correlated Color Temperature (2300K - 10000K).

      Screen Shot 2023-07-07 at 7.11.12 PM

      FX

      Press the LIGHT MODE button to enter the light mode interface; rotate the Select Wheel

      and short press to FX.

      You can choose between 16 light preset effects: Fire, Strobe, Explosion, Faulty Bulb, Pulsing, Welding, Cop Car, Color Chase, Party Lights, Firework, Club Lights, Paparazzi, Lightning, TV and Candle.
      Each preset has multiple parameters that can be changed to customize the effects.

      Screen Shot 2023-07-07 at 7.12.11 PM

      RGB

      Press the LIGHT MODE button to enter the light mode interface; rotate the Select Sheel and short press to RGB. You can adjust Intensity (0-100%) and Red/Green/Blue values (0-100%).

      Screen Shot 2023-07-07 at 7.13.43 PM

      xy

      Press the LIGHT MODE button to enter the light mode interface; rotate the Select Wheel and short press to xy. You can adjust Intensity (0-100%) and xy coordinates
      (0.0000 - 0.8000).

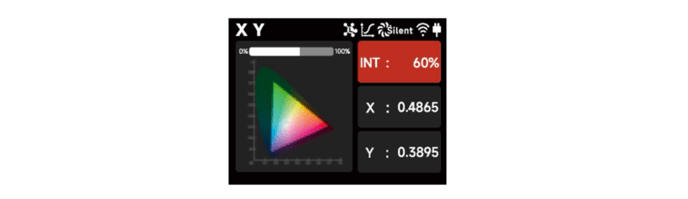

      Screen Shot 2023-07-07 at 7.14.44 PM

      Source

      Press the LIGHT MODE button to enter the light mode interface, rotate the select wheel

      and short press to Source. You can choose 46 preset light source effects.

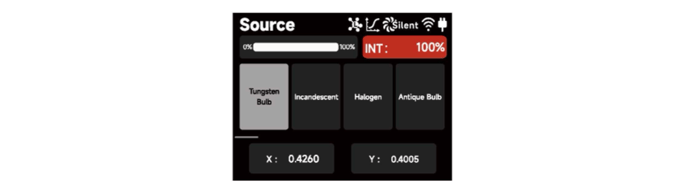

      Screen Shot 2023-07-07 at 7.15.56 PM

      GEL

      Press the LIGHT MODE button to enter the light mode interface; rotate the Select Wheel and short press to GEL. You can set 3200K or 5600K as the light color temperature, and then select the Rosco or LEE Gel Lighting Filter paper.

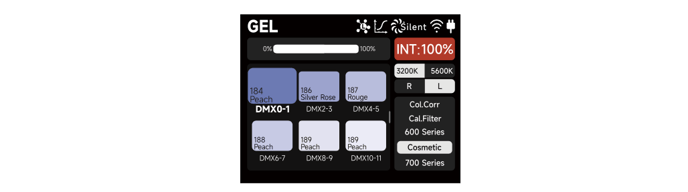

      Screen Shot 2023-07-07 at 7.16.38 PM
