[LS 600c Pro] Getting Started

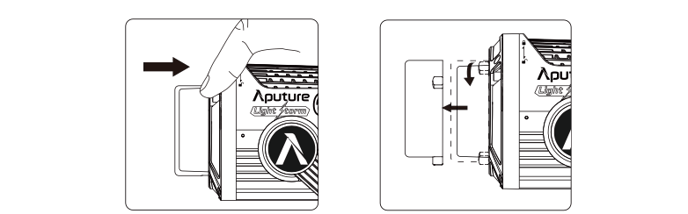

Press the release button following the arrow and rotate the cover clockwise to detach the cover. To reattach the cover, insert it into the Bowens mount and rotate counter- clockwise.

To install the reflector, press the release button, insert the reflector into the Bowens Mount, and rotate it counterclockwise as shown in the following pictures. To remove the reflector, push in the release button and rotate the reflector clockwise.

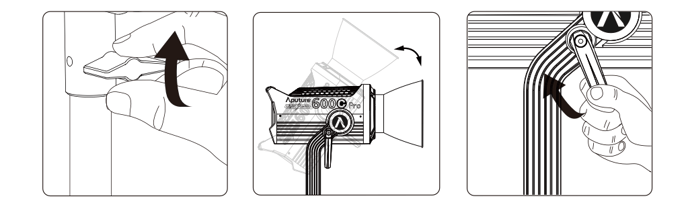

If using a 5/8 in / 16mm stand (Baby Pin), then mount the Lamp Head onto the stand, and fix it in place using the T-Handle/Mounting Screw on the Baby Pin Receiver.
If using a 1.125 in / 28mm stand (Junior Pin), then mount the Lamp Head into the Junior Pin receiver, and fix it in place using the T-Handle on the stand. Loosen or tighten the handbrake locking mechanism on the yoke to adjust the fixture's angle of tilt.

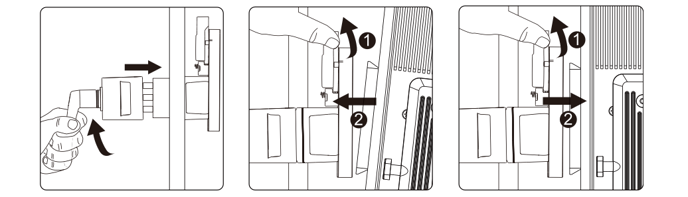

1) Clamp the Lightning Clamp onto a light stand.
2) To attach the control box, rotate the release lever to unlock the quick-release plate, then mount the control box onto the Lightning Clamp (the release lever will spring back).

3) To remove the control box, grasp it firmly, then unlock the quick-release plate by turning the release lever, and detach the control box.
