      [LS 600c] Power Options

      Powering your LS 600c from AC & DC power

      Powering Up the Control Box

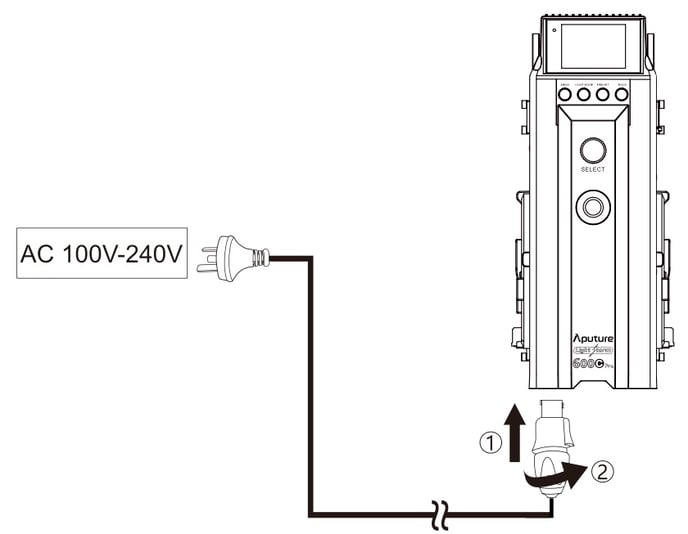

      Powering by AC

      ls_600c_pro_powering_by_ac-1-1

      To disconnect the Neutrik®️ powerCON cable, pull back on the silver release tab on the cable connector and rotate the connector counter clockwise. Do not pull directly.

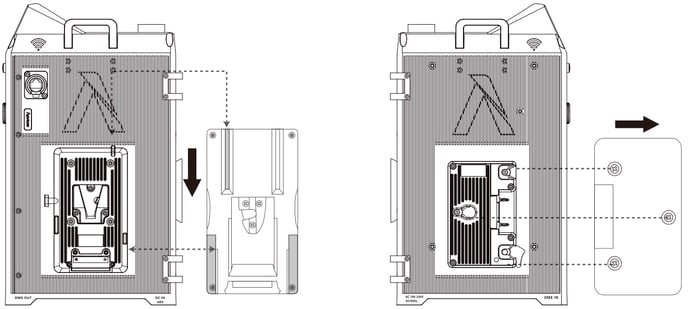

      Powering by DC

      ls_600c_pro_powering_by_dc

      ⬆︎V Mount Battery ⬆︎ Anton Bauer Battery

      Power by DC Supply

      ls_600c_pro_dc_supply

      You can charge batteries via built-in Battery Plates, but the maximum intensity that the light can operate at while charging batteries is as follows:

      Exponential(Exp) or Linear: ≤ 70%

      Logarithmic(Log): ≤ 30%

      S-Curve: ≤ 55%
