[LS 600c Pro] Wireless DMX Control (CRMX)

LS 600c Pro Wireless DMX Control (CRMX)

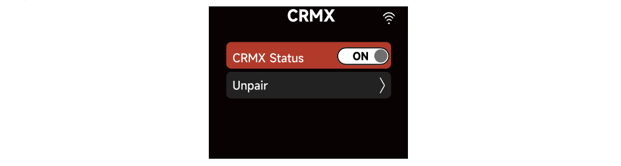

Rotate the Select Wheel and short press to enter the Lumen Radio CRMX. When CRMX Status is "ON", it will continuously search for a linkable signal in the background to connect with. "Unpair" will disconnect the currently established connection so that other signal transmitters can be linked.

CRMX Status: When CRMX Status is ON, it will continuously search for a linking signal in the background to connect with.

Unpair: Unpair will disconnect the currently established connection so that another Transmitter's signal can be linked.

Linking

Press the Select Wheel to select CRMX Settings.

If the CRMX chip of your fixture has never been linked with a CRMX Transmitter before, then use the Select Wheel to select "ON" within the CRMX Settings Screen; this will allow the fixture to search for a link signal from a Transmitter.

If your fixture was previously linked to an undesired Transmitter, select "Unpair" to allow the CRMX chip to listen for a new Tx link.

When you press the Link button on your Transmitter, your fixture screen will show a "Pairing" animation screen followed by a "Pairing Complete" screen.

For the fixture to listen to DMX data, the fixture must have the "DMX Settings" screen displayed.

Unlinking

Selecting "Unpair" in the CRMX Settings will disconnect the currently established connection so that another Transmitter's signal can be linked.

If BT Settings (Sidus Mesh BT) is enabled ("ON"), then CRMX is disabled ("OFF") automatically. If CRMX is enabled ("ON"), the BT Settings (Sidus Mesh BT) are disabled ("OFF") automatically.
