[LS 600d] DMX Mode

Enabling DMX Mode on LS 600d

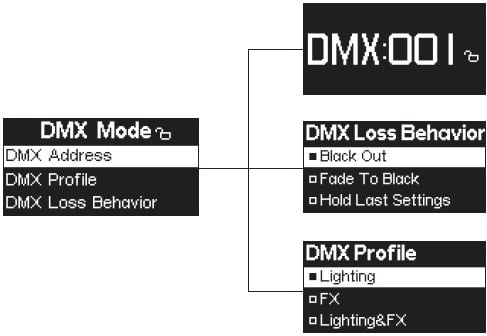

Press the MENU button to enter the system menu, rotate the Knob to select DMX mode and press the MENU button again to enter DMX mode. Rotate the Knob to Select DMX Address / DMX Profile / DMX Loss Behavior / Exit.

DMX Address: LS 600d will set to in DMX Address interface.

DMX Profile: Lighting 8bit / FX 8bit / Lighting& FX 8bit.

DMX Loss Behavior:
① Black out -when the DMX signal is lost, it will be Black out.

② Fade to Black -after DMX signal is lost, it will fade to Black in 60 seconds.

③ Hold last setting -After DMX signal is lost, remember the last control setting.

④ Hold 2 min& Fade Out -After the DMX signal is lost, keep the last control setting for two minutes, and then Fade to Black within 60 seconds.

ls_600d_DMXmode

The fade-out time decreases as the percentage of brightness decreases. When the brightness output is 100%, the fade-out time is 60 seconds, which decreases in sequence.

If the signal is reconnected, the DMX console will continue to maintain the signal output as same as before.

Press and hold the MENU 2s to lock the DMX Address to prevent accidental touch. In the locked state, cannot enter other interfaces other than the DMX Mode, Press and hold 2s again to unlock

Channel Selection

In DMX mode, match the channel of your DMX controller with the light, and then adjust accordingly.

The default DMX channel is "001".

The range of DMX channels is 1 to 512.
