[LS 600x Pro] DMX Control

LS 600X Pro Connecting to DMX

DMX Mode

Press the MENU Button to enter the menu interface, rotate the Select wheel and short press to enter the DMX mode. Select the DMX address that LS 600x Pro will set to in DMX Address interface.

DMX Address

Set the DMX address for the light to listen to.

DMX Loss Behavior:

Use the Select button to select Black out /fade to
Black /Hold last setting/ Hold 2 min& fade Out.
① Black out -when the DMX signal is lost, it will be Black out.
② Fade to Black -after DMX signal is lost, it will fade to Black in 60 seconds.
③ Hold last setting -After DMX signal is lost, remember the last control setting.
④ Hold 2 min& Fade Out -After the DMX signal is lost, keep the last control setting for two minutes, and then Fade to Black within 60 seconds.

DMX Profile:

Rotate the, and short press to select Lighting 2Channels / Effect 5Channels / Lighting& Effects 6 Channels.

Connect a standard DMX controller

Connecting DMX to only one 600x Pro

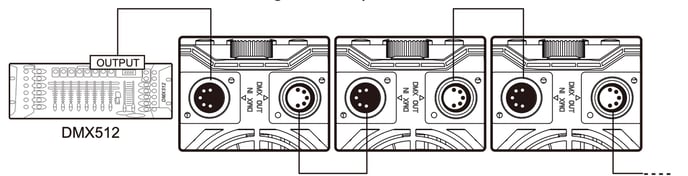

Daisy chaining multiple lights using DMX

DMX IN                                                                                 DMX OUT

1. Signal Common                                                        1. Signal Common

2. Data 1- (Primary Data Link)                                      2. Data 1- (Primary Data Link)

3. Data 1+ (Primary Data Link)                                     3. Data 1+ (Primary Data Link)

4. Data 2- (Optional Secondary Data Link)                   4. Data 2- (Optional Secondary Data Link)

5. Data 2+ (Optional Secondary Data Link).                 5. Data 2+ (Optional Secondary Data Link)

Channel Selection

In DMX mode, match the channel of your DMX controller with the light, and then adjust accordingly.
