LS 600X Pro Powering Up the Control Box

Powering by AC

AC 100V-240V
Neutrik® powerCON Female Locking Connector PUSH AC 100V-240V ~
Neutrik® powerCON Male Connector

To disconnect the Neutrik® powerCon cable, pull back on the grey release tab on the cable connector, and rotate the connector counter clockwise. Do not pull directly.

Powering by Batteries

ls600x_pro_powering_up_by_batteries

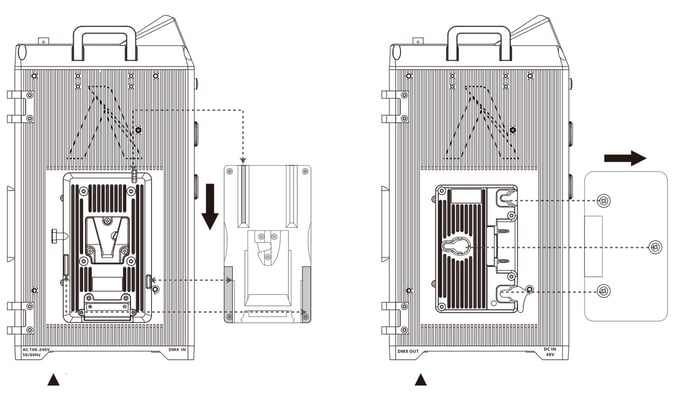

V-Mount Battery Anton Bauer Battery

Battery Requirements: V/AB-Mount Batteries: 14.4V(15A)-28.8V(7.5-15A) DC Input: 48V (15A) (720W Load).

Customers can choose V-Mount or A-Mount battery plates for their control boxes upon purchase according to their needs.

Charge Batteries

When selecting the Exponential (Exp) or Linear dimming curve option, you can charge batteries if the brightness intensity is ≤ 70%. When selecting the Logarithmic (Log) dimming curve option, you can charge batteries if the brightness intensity is ≤ 30%. When selecting the S-Curve dimming curve option, you can charge batteries if the brightness intensity is ≤ 55%.

Battery Power Options

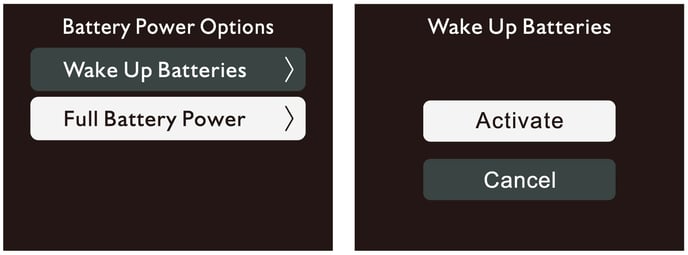

1. Battery Wake Up: for A-Mount or V-Mount lithium battery, you need to activate the lithium battery from over-discharge protection. Select the lithium battery specification 14.4V/26V and enter the Wake Up Batteries interface, confirm Activate to output 3A current in order to activate the lithium battery; After activation, check whether the lithium battery has a voltage output. If so, the activation is successful, otherwise the activation fails.
2. Full power output: a single lithium battery meets 360W continuous output (14.4V lithium battery maximum output current 30A, 26V lithium battery maximum output current 15A), two lithium batteries can meet the input power requirement of 720W, and the lamp can achieve 100% illumination Output.

ls600x_pro_battery_power_options
