[LS 600x Pro] Getting Started

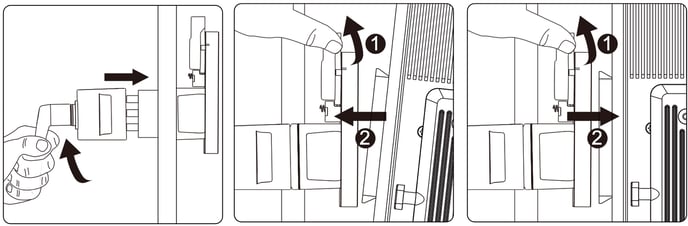

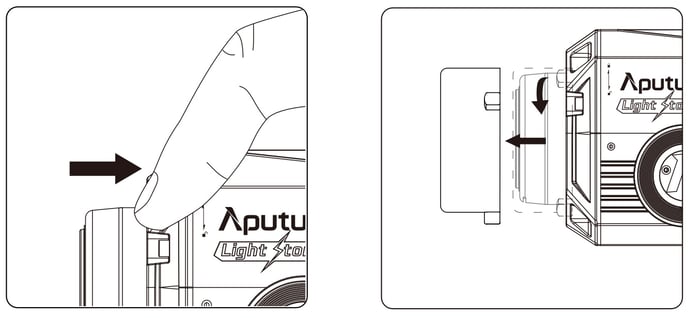

To install the reflector, pull back the retaining pin, insert the reflector into the Bowens mount, and rotate it counter clockwise as shown in the following pictures.

To remove the reflector, pull back the retaining pin and rotate the reflector clockwise.

Setting Up the Lamp Head

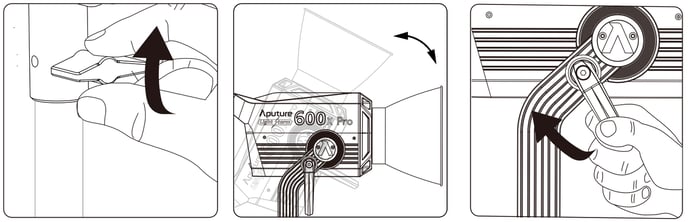

Adjust the lamp head to required angle then tighten the T-Handle to attach the light to stand. Then twist the Ratcheting Disk Brake Handle to fix the Lamp Head. If using a 5/8in/ 16mm stand (Baby Pin), then mount the Lamp Head onto the stand, and proceed to fix it in place using the Stand Mounting Screw / Tie Down on the Baby Pin Receiver/Mounting Column. If using a 1.125in / 28mm stand (Junior Pin), then mount the Lamp Head into the Junior Pin receiver, and fix it in place using the T-Handle on the stand. Loosen or tighten the Tilt Lock Handle on the yoke to adjust the fixture's angle of tilt.

Lightning Clamp Operation Instructions

1. Clamp the Lightning Clamp onto a light stand.
2. To attach the control box, rotate the release lever to unlock the quick-release baseplate, then mount the control box onto the Lightning Clamp (the release lever will automatically spring back).
3. To remove the control box, grasp it firmly, then unlock the quick-release plate by turning the release lever, and detach the control box.



Specifications

Connect the Lamp Head to the Control Box

Connect the Lamp Head to the control box using the LS 600 Series 5-Pin Weatherproof Head Cable.

* Hang the cable using the rope to manage
and reduce tension on the cable.
