LS-60X Installation Instructions

Rotate the red rotary ring of the DC input connector clockwise, then pull out to remove the adapter

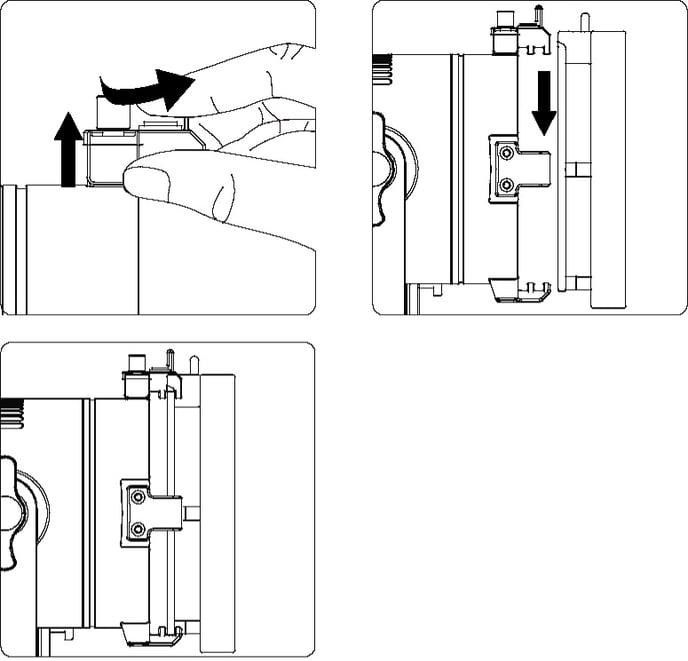

1. Install the Bowens Mount Adapter

Lift the claw directly above the lamp cap and rotate it 90° to the side, then point the Bowens Mount Adapter at the other three slots on the lamp cap, place it into the slots from top to bottom, then lift the socket directly above and rotate it to the front.

ls60x_installation_bowens_mount_adapter

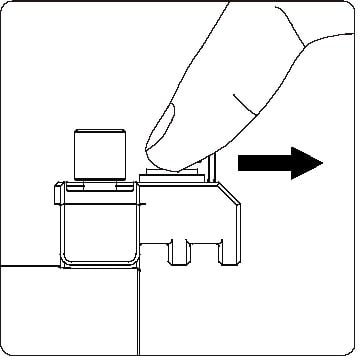

Make sure the pick is pushed to the front of the claw before installation.

ls60x_installation_bowens_mount_adapter_tip

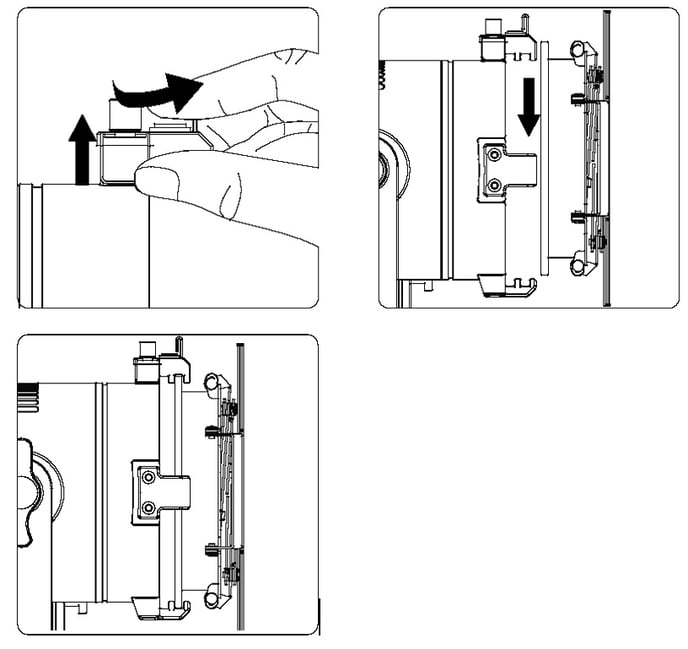

2. Install the Barn Doors
Lift the claw directly above the lamp cap and rotate it 90° to the side, then point the Barn Doors at the other three slots on the lamp cap, place it into the slots from top to bottom, then lift the socket directly above and rotate it to the front.

ls60x_installation_barn_doors

Make sure the pick is pushed to the front of the claw before installation.

ls60x_installation_barn_doors_tip

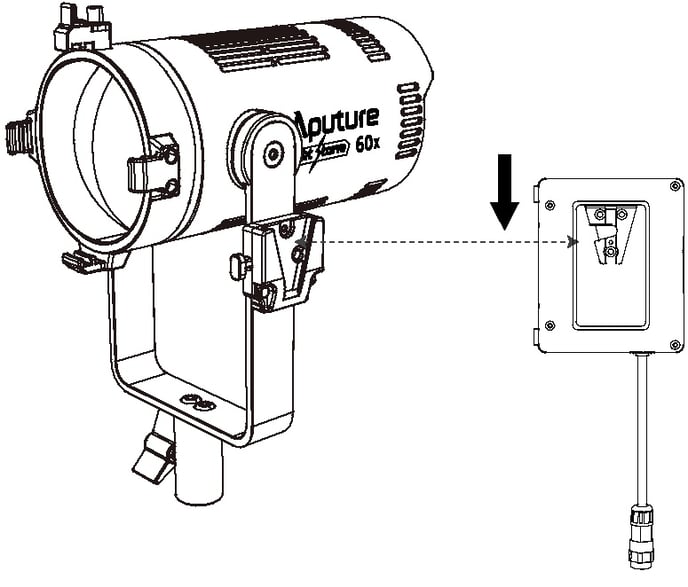

3. Install the Battery case

ls60x_installation_batter_case

To remove the battery case, press the V-mount seat button and pull the battery case upward.

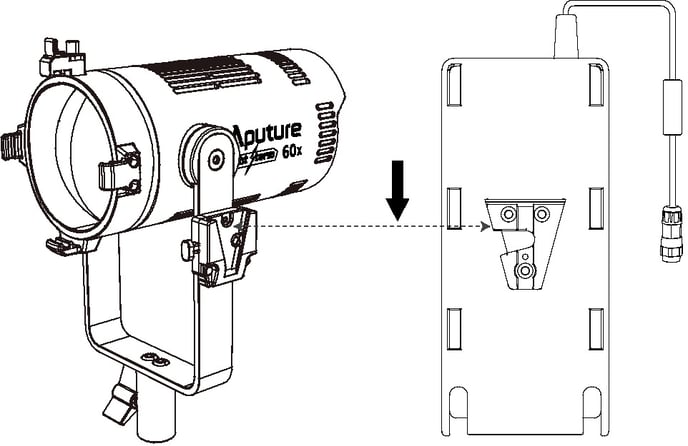

4. Install the Adapter

ls60x_installation_adapter

To remove the Adapter, press the V-mount seat button and pull the Adapter case upward.
