[Dome] Light Octadome 120

Aputure Light Octadome 120

Light Octadome 120 is designed for LS 120d II,LS 300d II,LS 300X, LS 600d Pro,Amaran 60,Amaran 100 and Amaran 200 series. And also compatible with other Bowens Mount LED video light.

IMPORTANT SAFETY INSTRUCTIONS

When using this unit, basic safety precautions should always be followed, including the following:

1. Read and understand all instructions before using.

2. Close supervision is necessary when any fixture is used by or near children. Do not leave the fixture unattended while in use.

3. Care must be taken as burns can occur from touching hot surfaces.

4. Care must be taken when touching, installing or disassembling the elastic support rod.

5. Let the fixture cool completely before storing.

6. To reduce the risk of injury, please install or disassemble the fixture properly.

7.The use of an accessory attachment not recommended by the manufacturer may increase the risk of fire, electric shock, or injury to any persons operating the fixture.

8. Please do not place the fixture near any liquids or other flammable objects.

9. Only use a dry microfiber cloth to clean the product.

10.This product is certified by RoHS. Please operate the product in full compliance with the operation standards. Please note that this warranty does not apply to repairs arising from malfunctions, although you may request such repairs on a chargeable basis.

11. The instructions and information in this manual are based on thorough, controlled company testing procedures. Further notice will not be given if the design or specifications change.

SAVE THESE INSTRUCTIONS

Check list

When you unbox the product, please make sure all the items listed below are included. Otherwise, please contact the seller immediately.

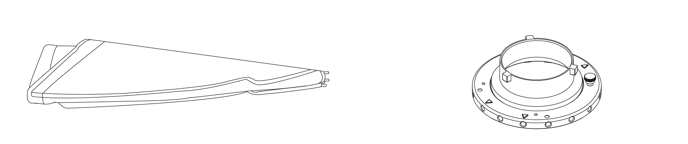

Light Octadome 120 softbox (1pc)	Speed Ring Adapter (1pc)

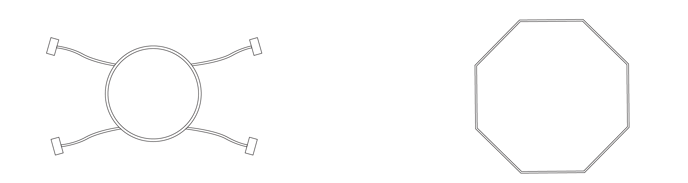

Inside Fabric Diffusion (1pc)	Front Fabric Diffusion (1pc 1.5 Stop Diffusion, 1pc 2.5 Stop Diffusion)

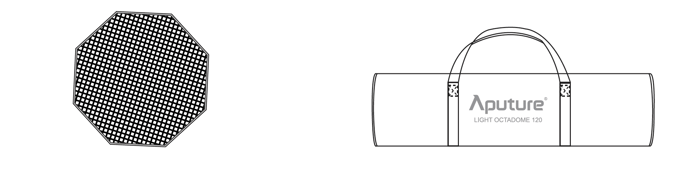

Fabric Light Control Grid （1pc）	Light Octadome 120 Carrying Bag (1pc)

Tips: The illustrations in the manual are only diagrams for reference. Due to the continuous
development of new versions of the product, if there are any differences between the product
and the user manual diagrams, please refer to the product itself.

Installations

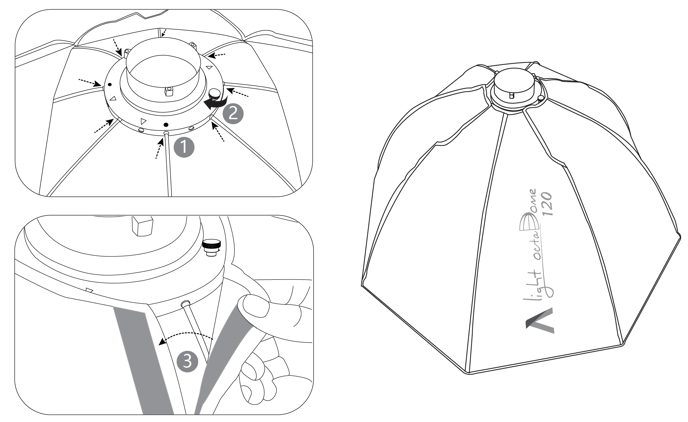

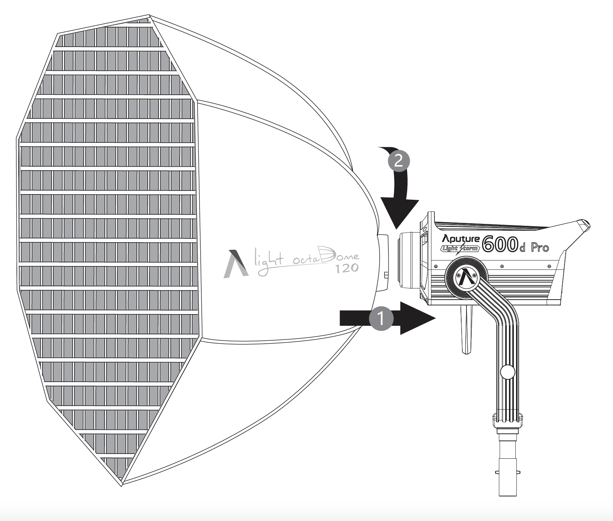

According to the diagonal installation method, insert the eight support rods, then lock the chuck, and fit the velcro on the softbox, then install the softbox on the lamp.

Use Velcro to install the Fabric Light Control Grid on the diffuser.

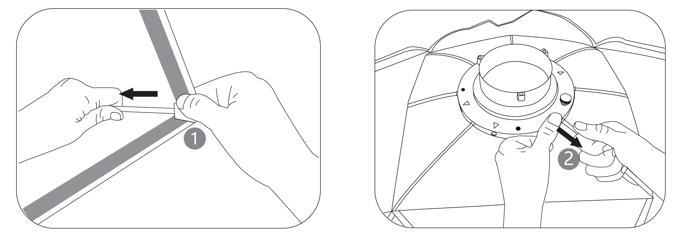

Disassembly: Pull out eight steel rods diagonally and in the opposite direction

Trademarks

Bowens is a trademark registered by Bowens in China and other countries.
