      [Motorized F14 Fresnel] Getting Started

      Setting up your Motorized F14 Fresnel

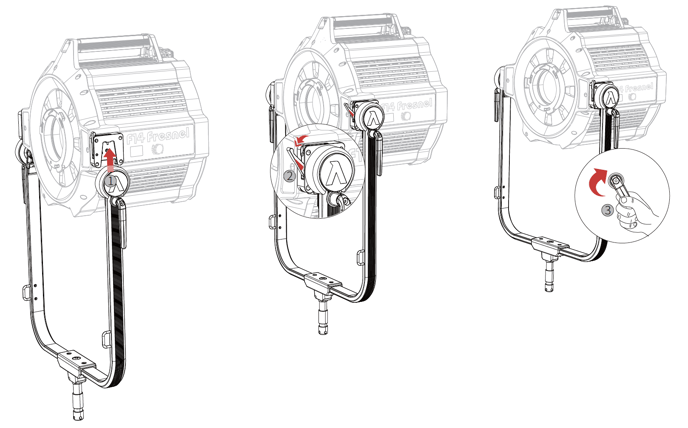

      Installation of the F14 onto the Removable Yokemotorize-f14-fresnel-removableyoke

      The Yoke Release Levers will display red on the sides if the lamp is not completely seated and locked. Please re-align and insert the lamp again until the Yoke Release Levers show no red and a "click" noise of the plate locking has been heard.



      Attaching the Skid to the CS15/XT26

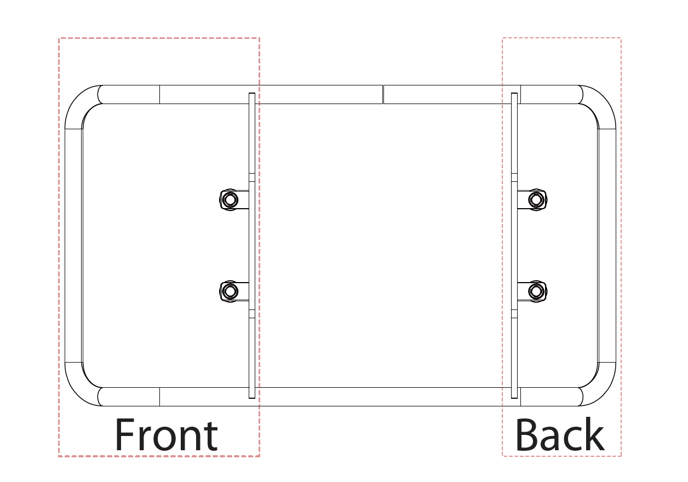

      motorized-f14-fresnel-skidinstallation

      The Skid allows for F14 lens clearance when used on the ground.

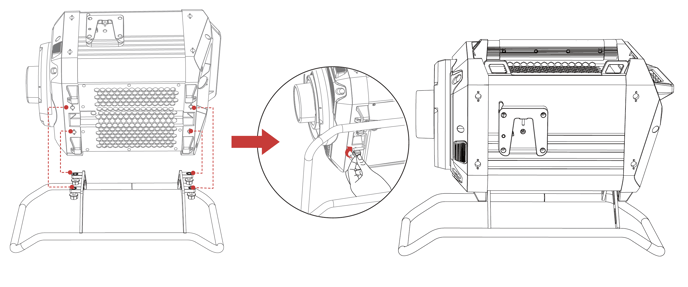

      motorized-f14-fresnel-skininstallation2

      Pay attention to Skid direction.



      Barn Doors Installationmotorized-f14-fresnel-barndoors

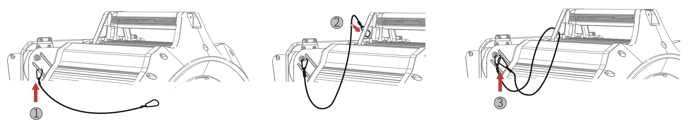

      Safety Cable Installationmotorized-f14-fresnel-safetycable

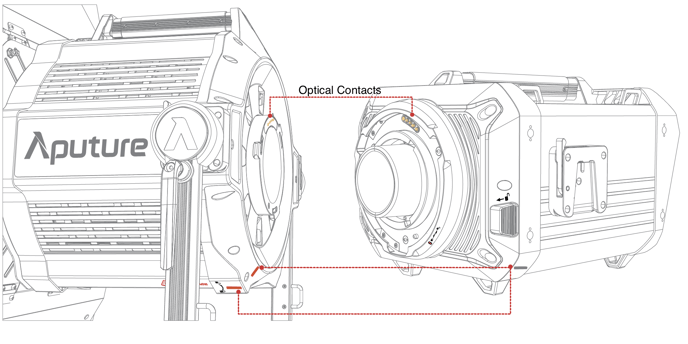

      Attaching the CS15/XT26 to the F14 Fresnelmotorized-f14-fresnel-installation-1

      motorized-f14-fresnel-installation2

      motorized-f14-fresnel-installation3-1
