      [Motorized F14 Fresnel] Operating Instructions

      Operating Instructions of Motorized F14 Fresnel

      Controlling using the integrated Control Knob:

      Rotating the Control Knob adjusts the Fresnel beam angle. Press and hold the Control Knob to recalibrate the Fresnel and reset to 50 degrees beam angle.

      Controlling from the CS15/XT26 Control Box:

      Go to the Accessory menu on the Control Box. Using the Control Knob on the Control Box, users can adjust the Fresnel beam angle and run the calibration by selecting the "Reset Position" option.

      DMX

      Wired DMC control of the F14 Motorized Fresnel can be achieved by utilizing the 5-pin XLR port on the CS15/XT26 Control Box. Please refer to the CS15/XT26 DMC Profile Charts for detailed information.

      Motorized Accessory must be enabled in the DMX Profile Extension Menu.

      Art-Net & sACN:

      Wired Art-Net/sACN control of the F14 Motorized Fresnel can be achieved via the LAN port on the CS15/XT26 Control Box. Please refer to the CS15/XT26 DMX Profile Charts for detailed information.

      Motorized Accessory must be enabled in the DMX Profile Extension Menu.

      CRMX:

      Wireless CRMX control of the F14 Motorized Fresnel can be set up in the Control System Menu on the CS15/XT26 Control Box. Please refer to the CS15/XT26 Product Manuals and the DMX Profile Charts for detailed information.

      Motorized Accessory must be enabled in the DMX Profile Extension Menu

      Sidus BT:

      The F14 Motorized Fresnel can be controlled wirelessly over Sidus BT using the Sidus Link App.

      Enabling the F14 for DMX Control

      Motorized Accessory Extension:

      When the Motorized Accessory profile extension is enabled, the DMX profile includes the F14 and Motorized Yoke channels. When disabled, these accessories cannot be controlled.

      Motorized Accessory extension is enabled by default.

      Function Configuration Extension:

      When the Function Configuration profile extension is enabled, the DMX profile includes the Fan Mode and Dimming Curve channels.

      motorized-f14-fresnel-dmx

      Function Configuration extension is enabled by default. Function Configuration channels are added after Motorized Accessories channels when both extensions are enabled.

      Controlling the F14 with the CS15/XT26 Control Box Interface

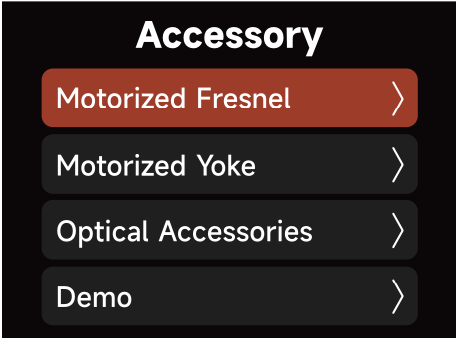

      Accessory Control

      The Motorized Fresnel, Motorized Yoke, and other Aputure-Mount Accessories can be purchased separately. In the Accessory interface, information about the accessories can be found and the settings for the accessories can be adjusted.

      motorized_fresnel_14_accessory_controlMotorized Fresnel:

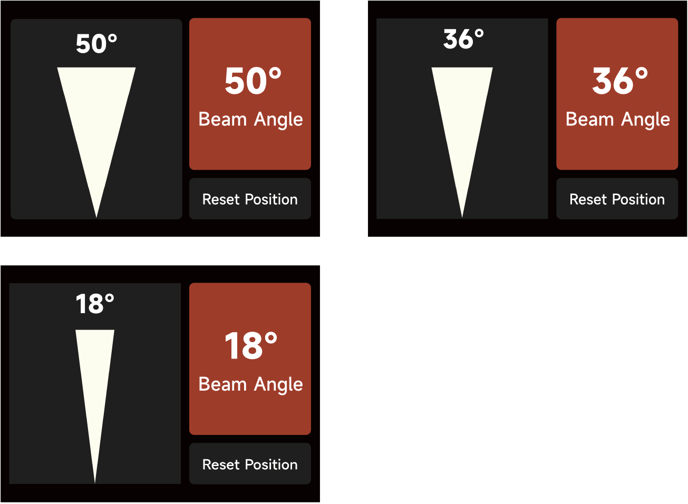

      When the fixture is equipped with the Motorized F14 Fresnel, you can enter this interface to manually adjust the beam angle.

      motorized_fresnel
