[Nova 9° 2x1] Fixture Details & Buttons

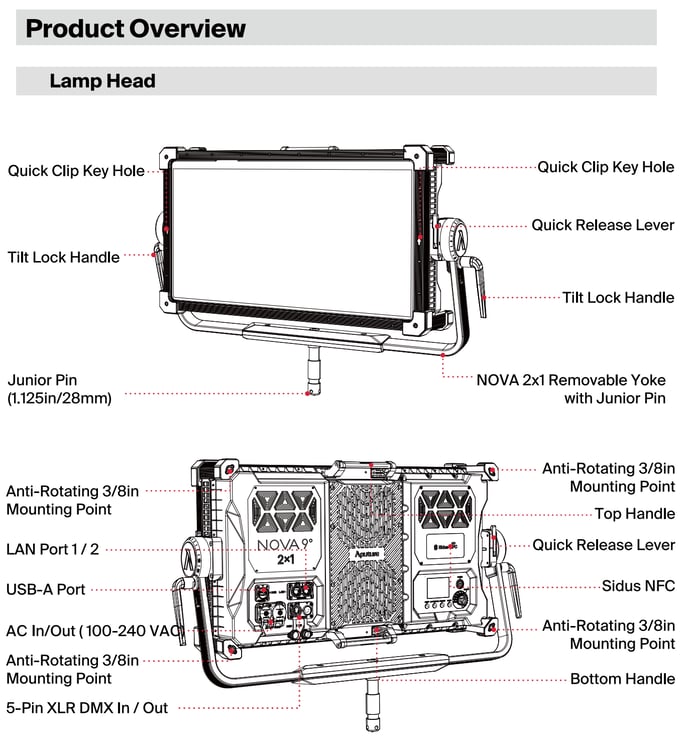

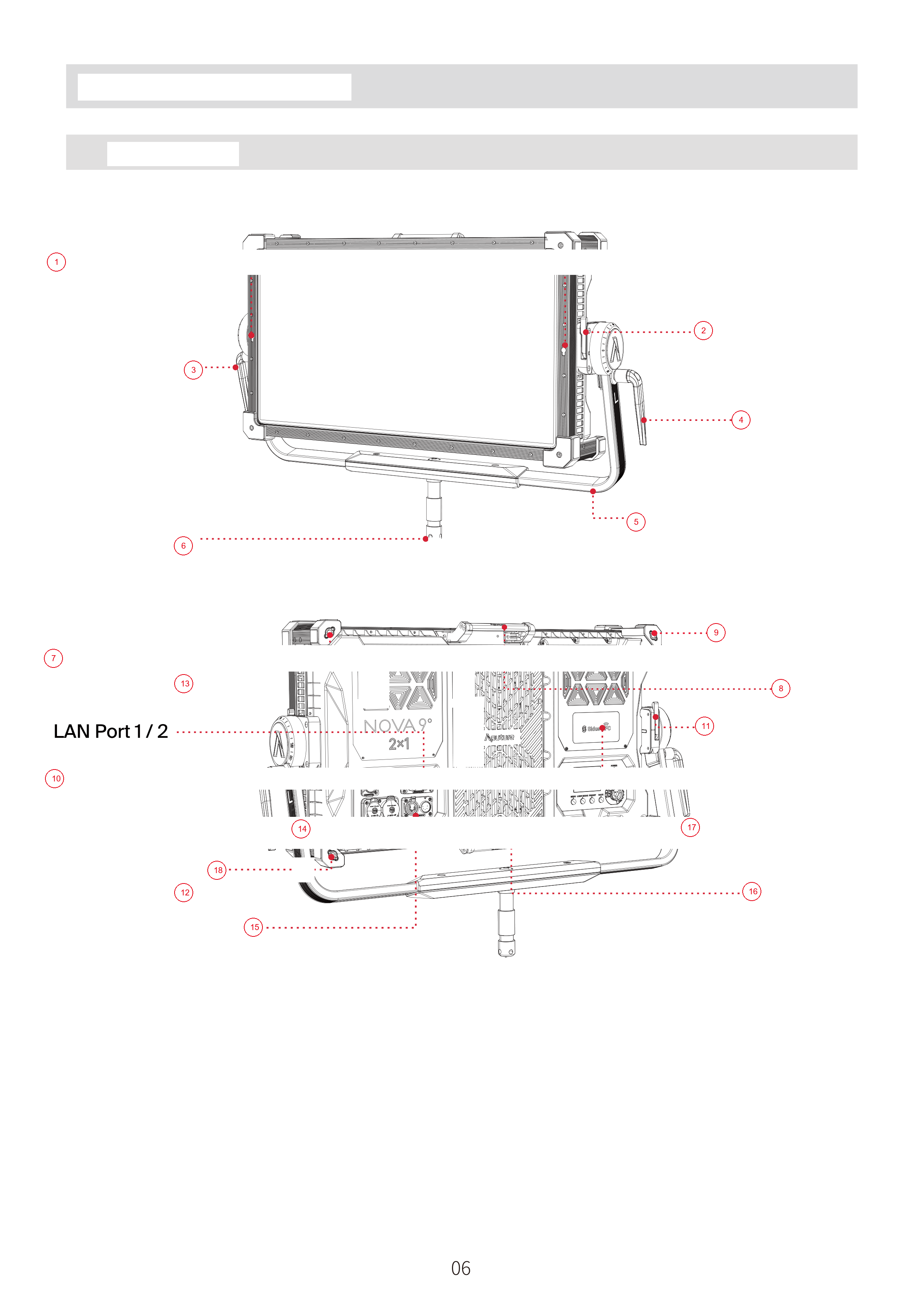

Lamp Head

1. Quick Clip Key Hole Quick Clip Key

2. Quick Release Lever

3. Tilt Lock Handle

4. Tilt Lock Handle

5. NOVA 2x1 Removable Yoke

6. (1125in/28mm)

7. Mounting Point Anti-Rotating 3/8in

8. Top Handle

9. 3/8in Anti-Rotating

10. Sidus NFC USB-A Port

11. Quick Release Lever

12. Mounting Point

13. Mounting Point

14. 4

15. 5-Pin XLR DMX In / Out

16. Bottom Handle

17. .... Anti-Rotating

18. Anti-Rotating 3/8in

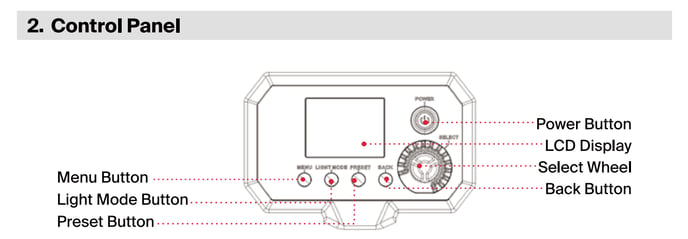

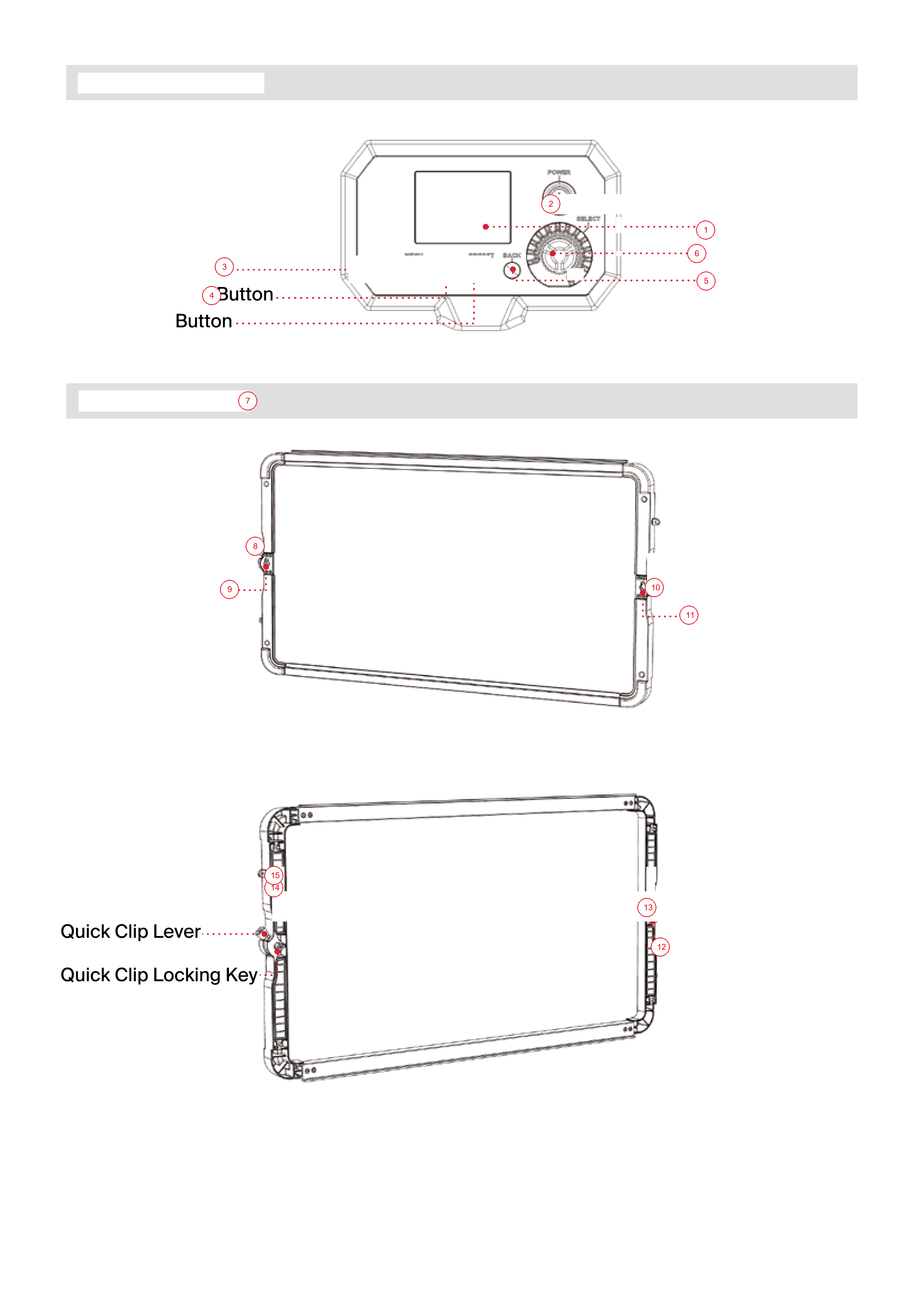

Control Panel

1. LCD Display

2. Power Button et

3. Menu Button

4. Light Mode

5. Back Button

6. Select Wheel

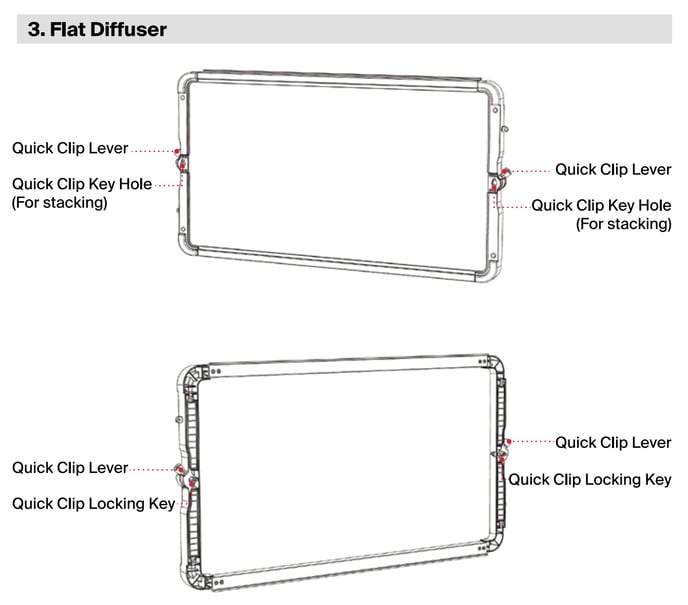

7. 3. Flat Diffuser

8. Quick Clip Lever..........

9. Quick Clip Key Hole

10. }

11. Quick Clip Key Hole

12. Quick Clip Locking Key

13. ho

14. 5

15. =

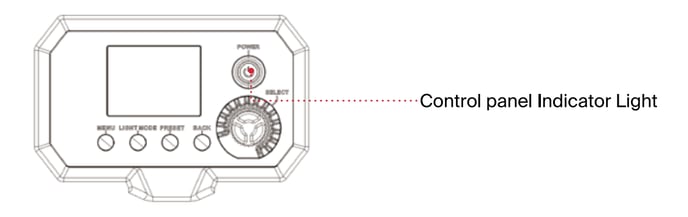

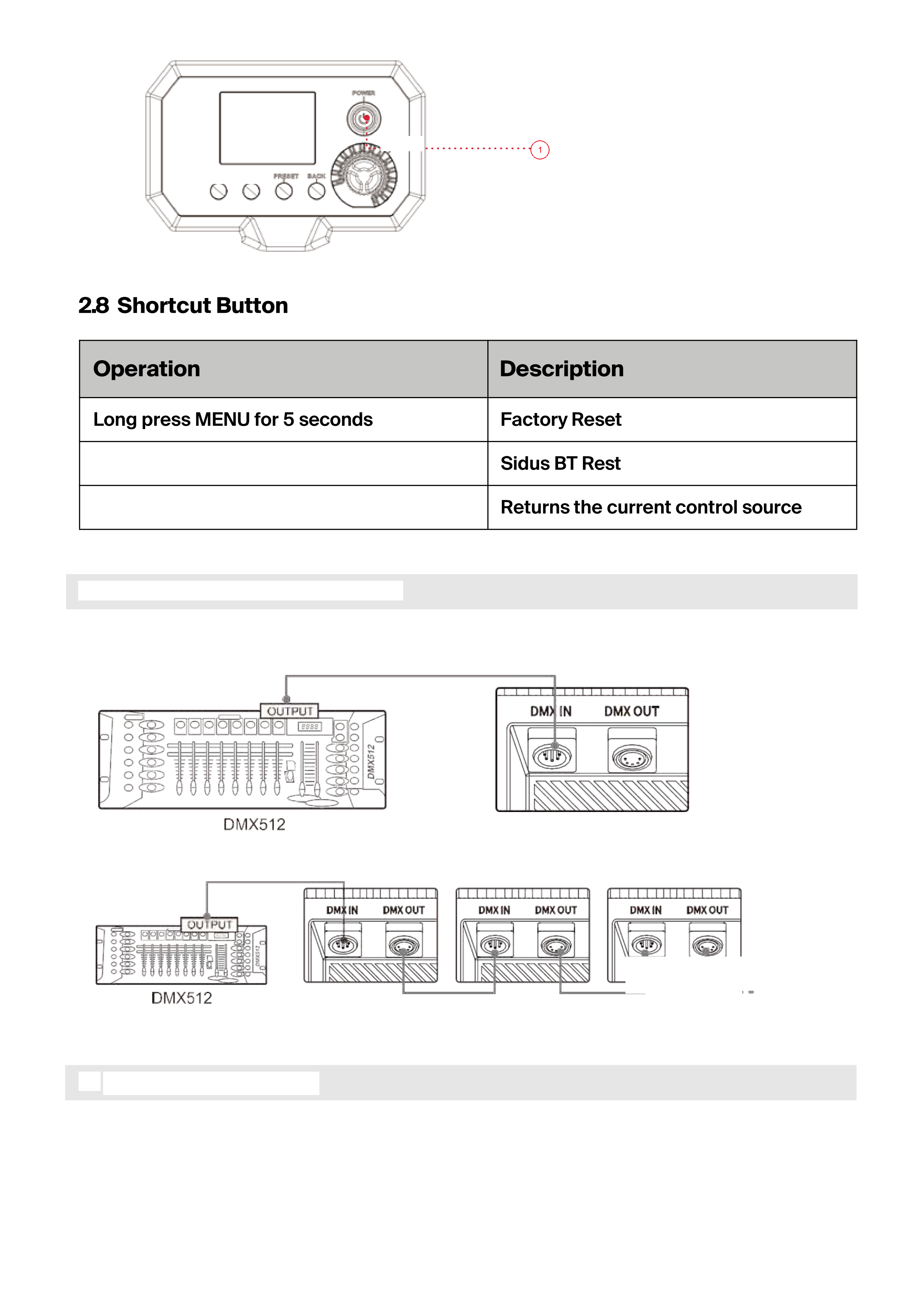

Control Panel Indicator Light

1. Control panel Indicator Light
