[Nova 9° 2x1] Getting Started

Setting up the NOVA 9° 2x1

Setup Diagrams

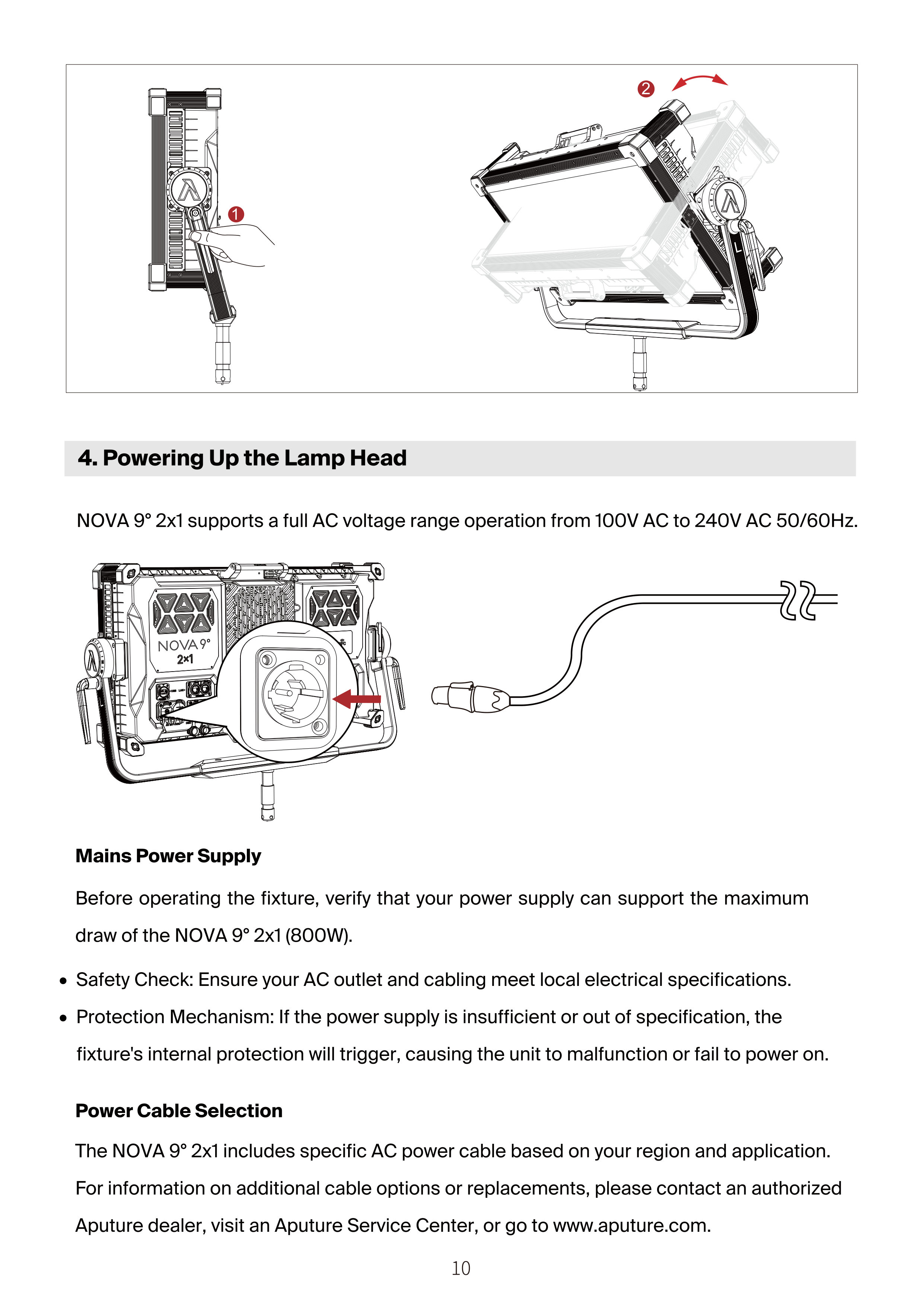

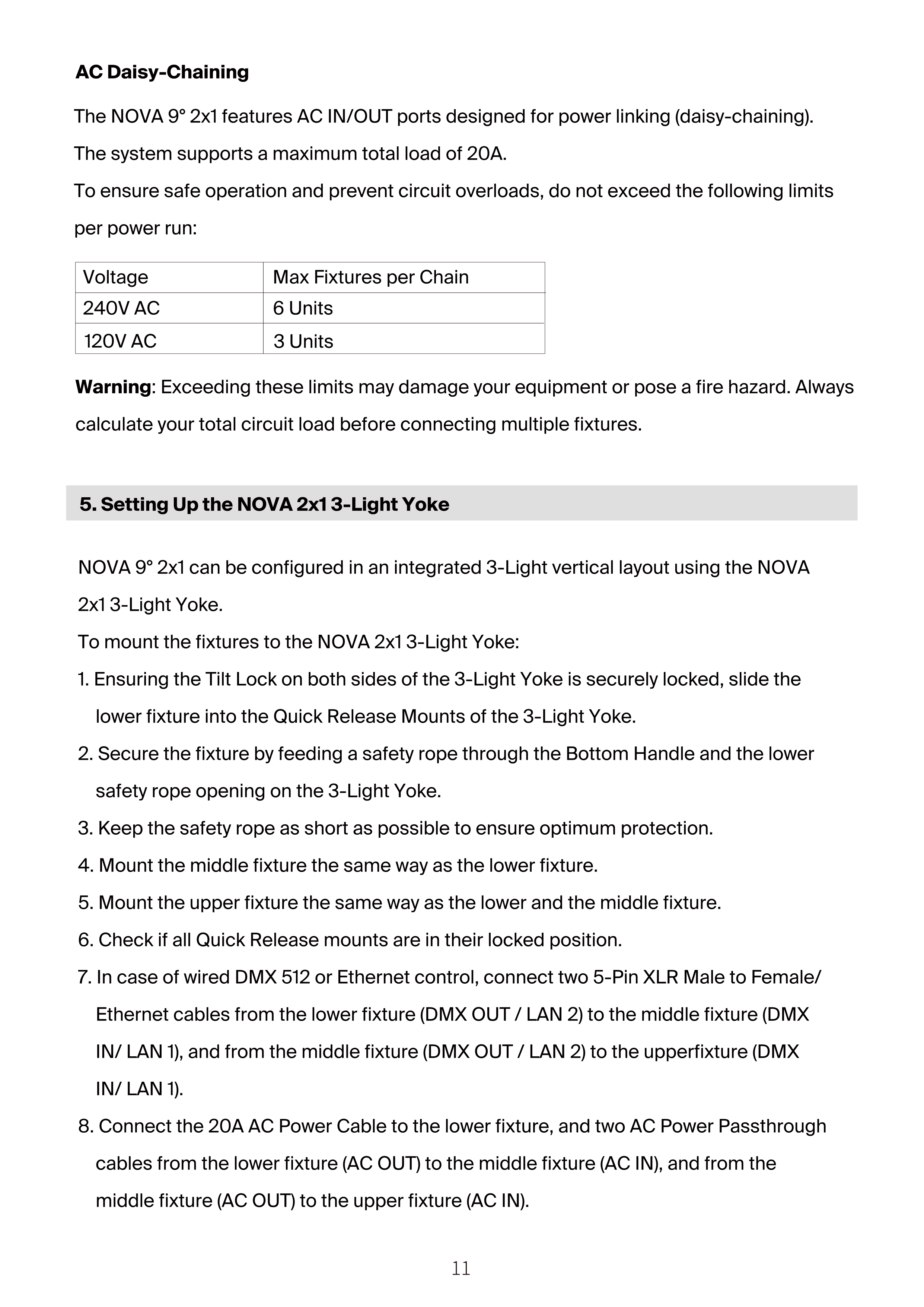

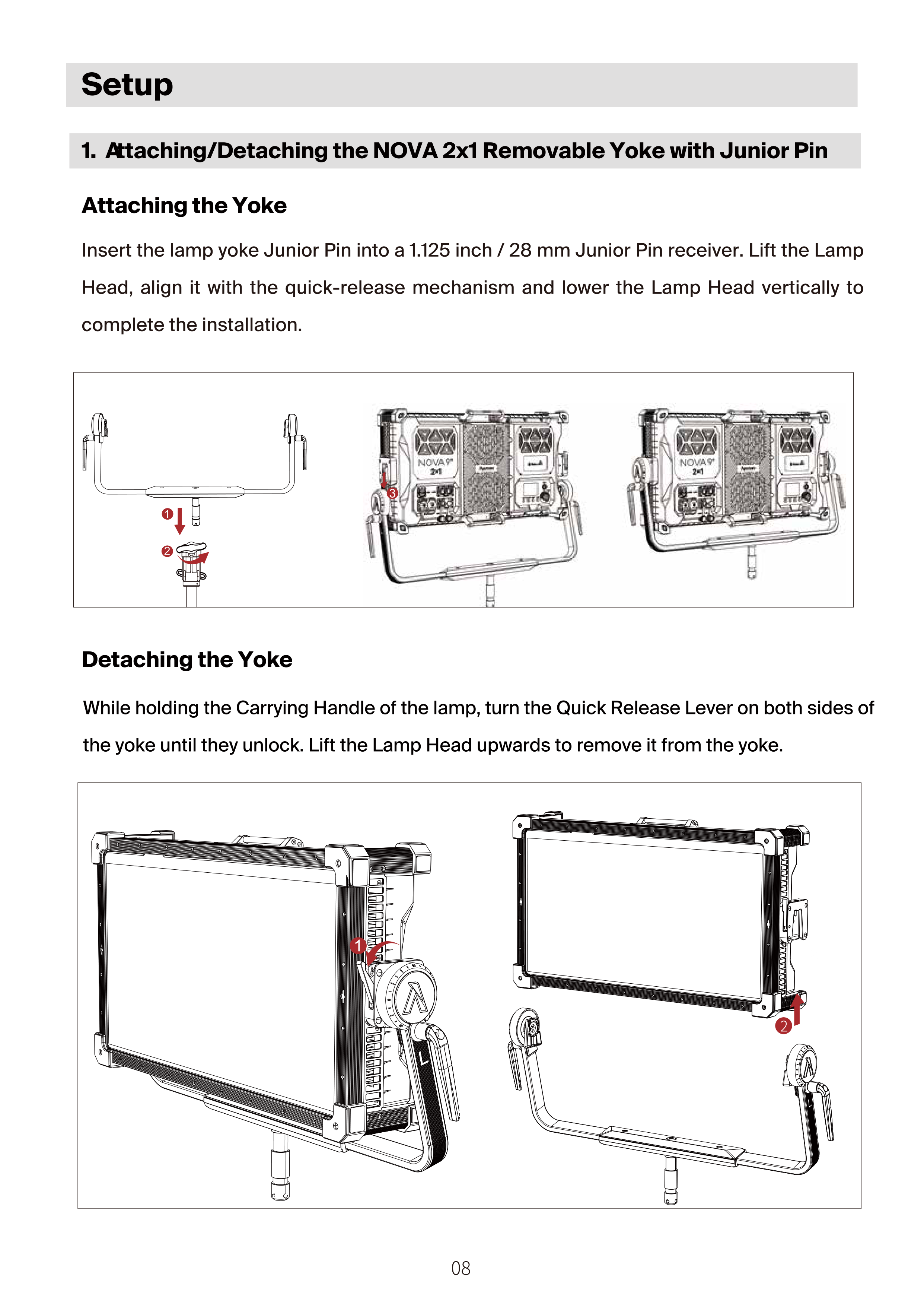

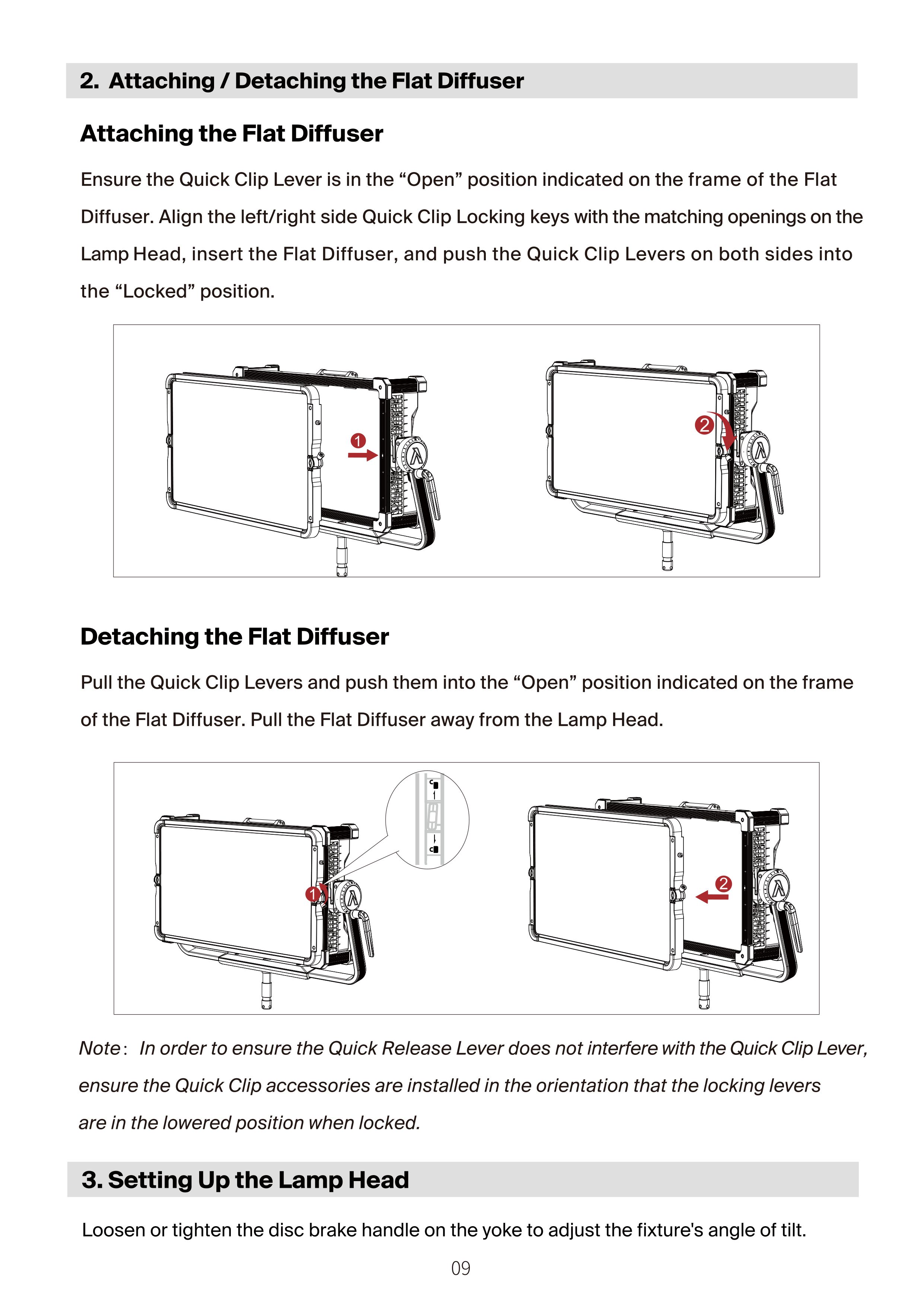

The following diagrams cover yoke attachment/detachment, diffuser attachment/detachment, tilt adjustment, and power-up procedures. Refer to the manual page numbers for context.

Step 1

NOVA 9° 2x1 setup step 1

Step 2

NOVA 9° 2x1 setup step 2

Step 3

NOVA 9° 2x1 setup step 3

Step 4

NOVA 9° 2x1 setup step 4

Before use, ensure that the power supply system can support the maximum power consumption of the NOVA 9° 2x1. If the actual maximum output of the power system is insufficient, the fixture's power system protection mechanism will be triggered.
