[Nova II 1x1] Getting Started

How to attach the yoke, attach the diffuser, set up, and power on the NOVA II 1x1.

Setup Diagrams

The following diagrams cover yoke attachment/detachment, diffuser attachment/detachment, tilt adjustment, and power-up procedures. Refer to the manual page numbers for context.

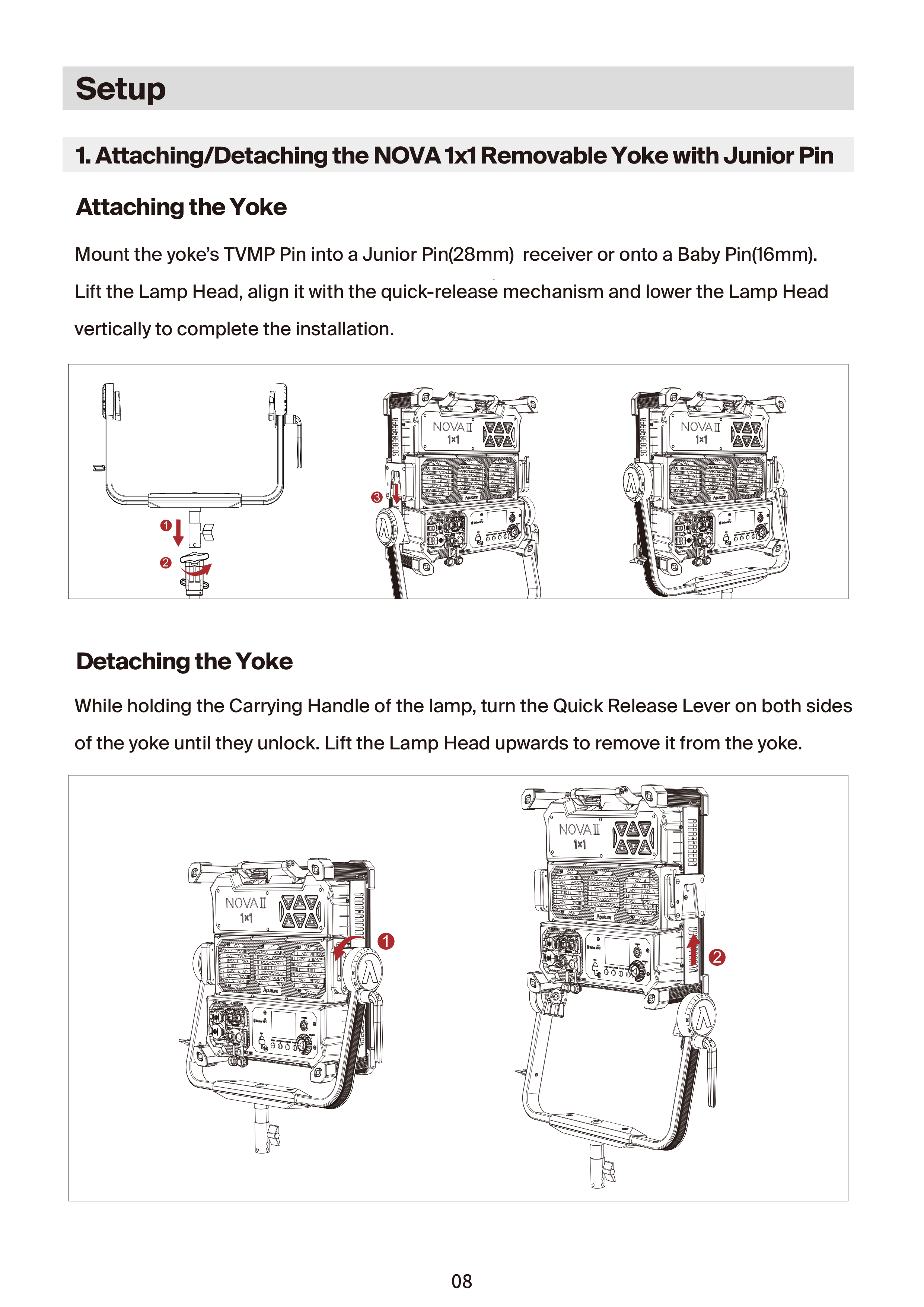

Step 1

NOVA II 1x1 setup step 1

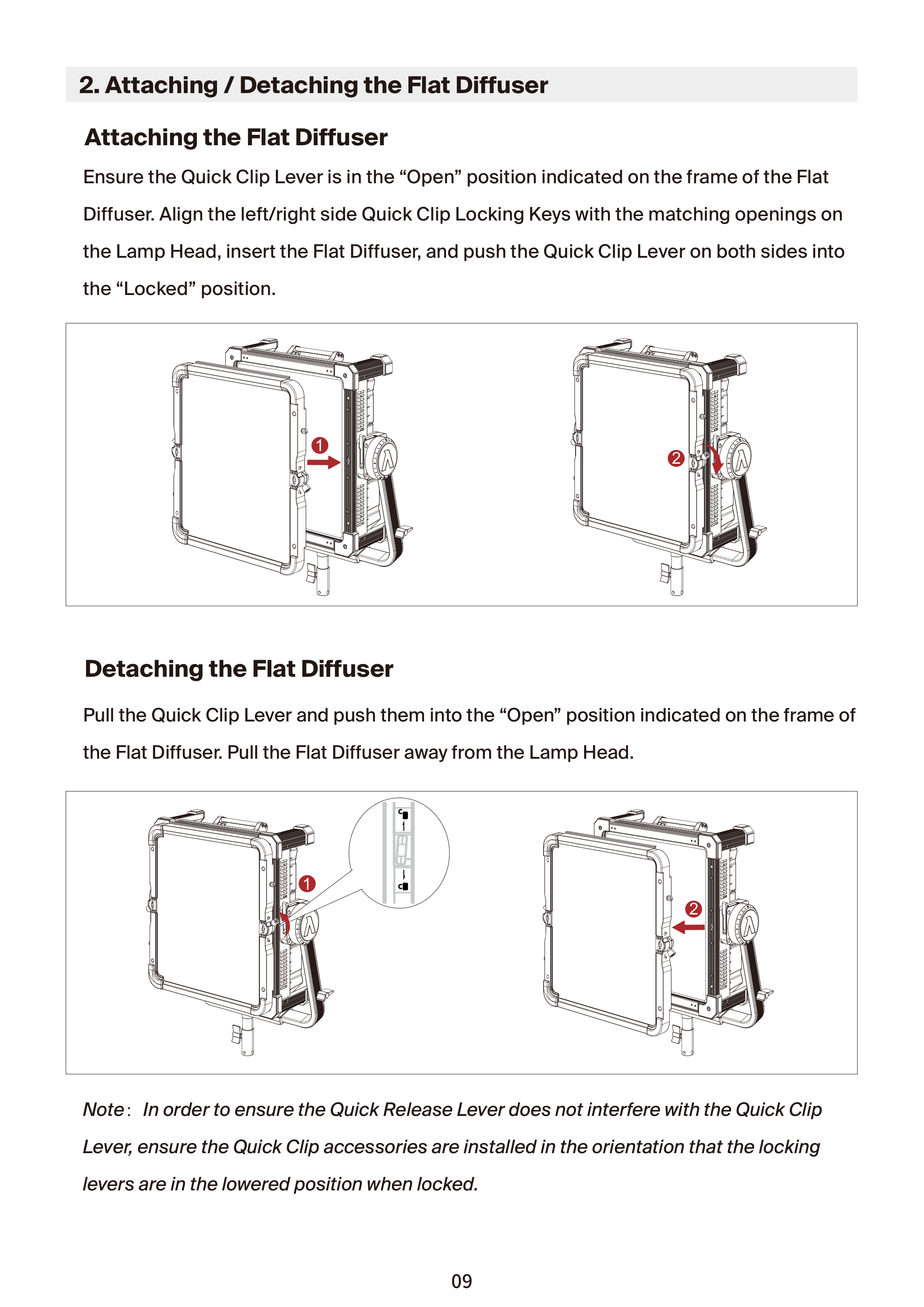

Step 2

NOVA II 1x1 setup step 2

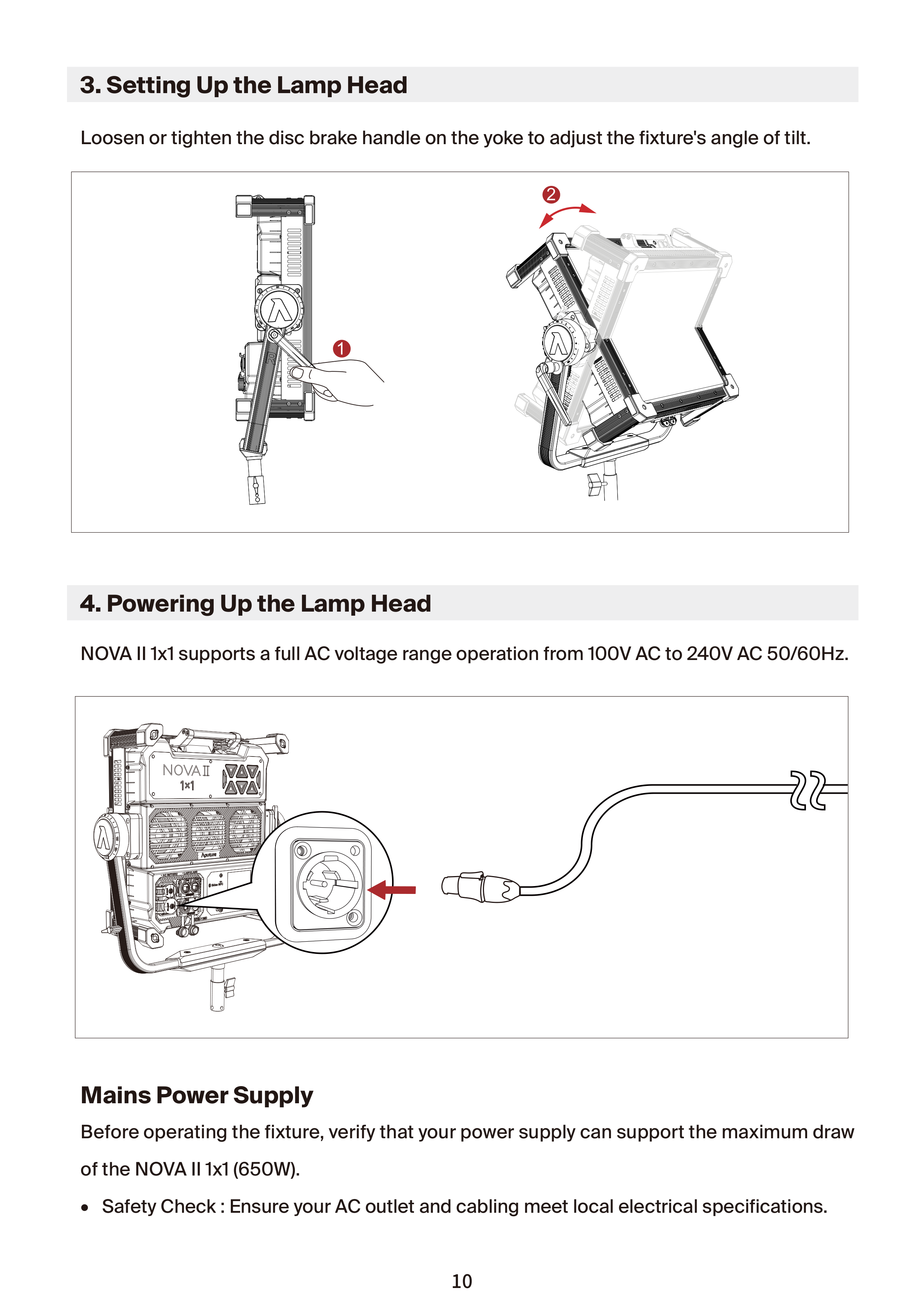

Step 3

NOVA II 1x1 setup step 3

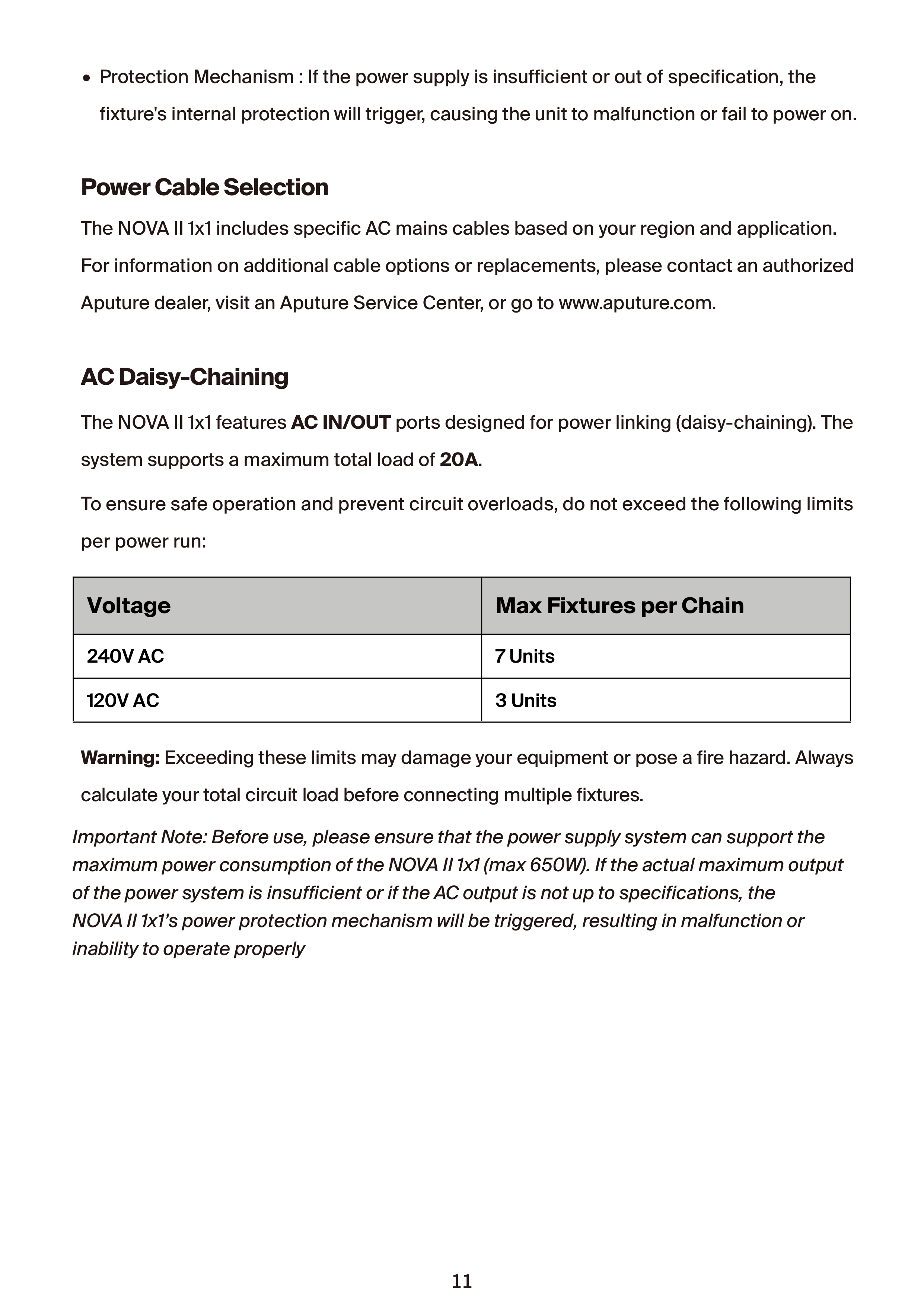

Step 4

NOVA II 1x1 setup step 4

Before use, ensure that the power supply system can support the maximum power consumption of the NOVA II 1x1. If the actual maximum output of the power system is insufficient, the fixture's power system protection mechanism will be triggered.
