[Nova II 2x1] Fixture Details & Buttons

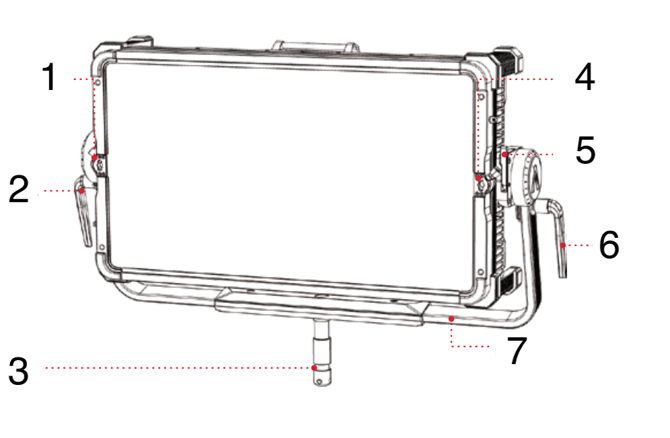

1. Quick Clip Key Hole

2. Tilt Lock Handle

3. Junior Pin (1.125in/28mm)

4. Quick Clip Key Hole

5. Quick Release Lever

6. Tilt Lock Handle

7. NOVA 2x1 Removable Yoke with Junior Pin

8. LAN Port 1/2

9. USB-A Port

10. AC Input (100-240V)

11. 5-Pin XLR DMX In/Out

12. Top Handle

13. Quick Release Lever

14. Sidus NFC

15. Bottom Handle

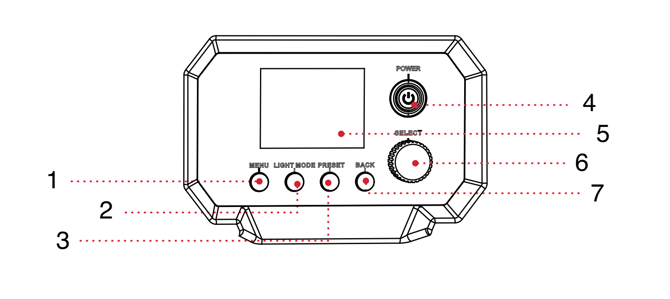

1. Menu Button

2. Light Mode Button

3. Preset Button

4. Power Button

5. LCD Display

6. Select Wheel

7. Back Button

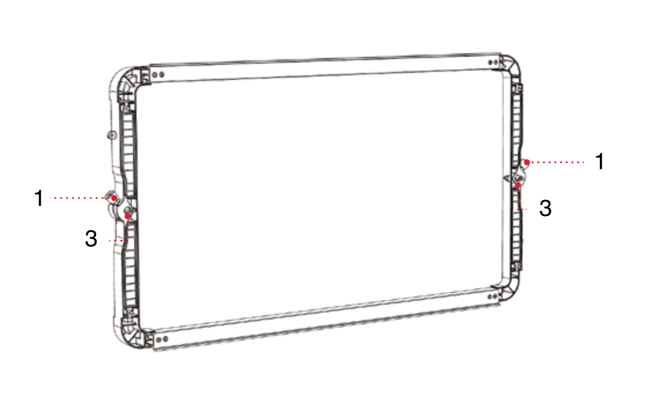

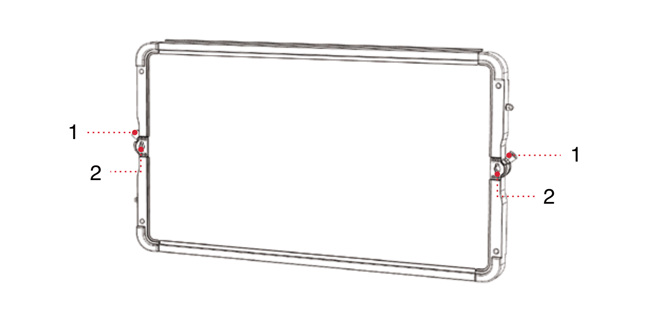

1. Quick Clip Lever

2. Quick Clip Key Hole (For stacking)

3. Quick Clip Locking Key

Nova II 2x Buttons & Fixture Details
