      [NovaP300c-NovaP600c] Manual Light Modes

      Manual Light Modes P300c P600c

      Light Mode Interface

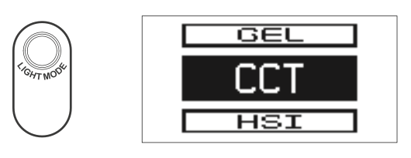

      To use the various Light Modes, press Light Mode button to access the system menu, rotate and press the Intensity/Main Control Knob to select the Light Mode.Screen Shot 2023-07-10 at 8.39.31 AM

      Screen Shot 2023-07-10 at 8.41.04 AM



      CCT

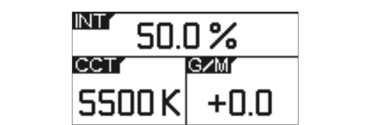

      Press the INT button to select CCT mode. Adjust the color temperature of the light from 2000K-10000K using the CCT/Hue Wheel.

      Screen Shot 2023-07-08 at 4.44.36 PMScreen Shot 2023-07-10 at 8.46.32 AM

      HSI

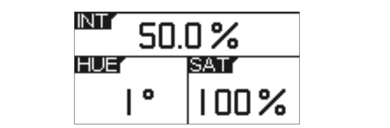

      Press the INT button to select HSI mode. Adjust the change of the HUE from 1°~360° using the CCT/Hue Wheel.

      Screen Shot 2023-07-08 at 5.00.47 PMScreen Shot 2023-07-10 at 8.46.32 AM

      FX

      Short press the INT Wheel to select FX mode.  Rotate the INT Wheel to toggle between Club Lights, Paparazzi, Lightning, TV, Candle, Fire, Strobe, Explosion, Fault Bulb, Pulsing, Welding, Cop Car, Color Chase, Party Lights, Fireworks, Color Fade*, Color Cycle*, Color Gradient*, One Color Chase*.

      Screen Shot 2023-07-10 at 9.41.04 AM*only available on the NOVA P600c.

      FX Control Details on the Nova P300c & Nova P600c Manual FX page.

      RGB

      Short press the INT Wheel to select RGB mode. Rotate the INT Wheel to adjust the brightness. Rotate the CCT/HUE Wheel to adjust the value of Red. Rotate the G/M / SAT Wheel to adjust the value of Green or Blue.  Press the G/M / SAT Wheel to select between Green or Blue.

      Screen Shot 2023-07-10 at 10.48.52 AM

      xy

      Short press the INT Wheel to select X, Y Color Coordinate mode.  Press and then rotate the CCT/HUE Wheel to change the figures of X; press and then rotate the G/M / SAT Wheel to change the figures of Y.

      Screen Shot 2023-07-10 at 11.00.35 AM

      SOURCE

      Short press the INT Wheel to select SOURCE mode.  Rotate the INT Wheel to select appropriate source and then press the INT Wheel to activate the desired Source.

      Screen Shot 2023-07-10 at 11.05.46 AM

      GEL

      Press the INT button to select GEL mode.

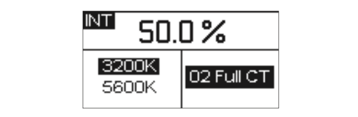

      Rotate the INT Wheel to adjust the brightness. Rotate the CCT/HUE Wheel to choose between 3200K/5600K base value.

      Screen Shot 2023-07-10 at 9.34.06 AMPress G/M / SAT Wheel to enter the GEL interface.

      • Rotate the INT Wheel to choose the Gel Manufacturer
      • Rotate the CCT/HUE Wheel to choose the Series
      • Rotate the G/M / SAT Wheel to the desired GEL
      • Press the G/M / SAT Wheel button to choose the GEL

      IMG_3255
