[Sidus Four] Overview

Overview of Sidus Four

Sidus Four is a 4 Universe CRMX Transmitter with built in 4 port ethernet node and wireless router from Aputure which accepts and converts wired and wireless lighting protocols. Both ethernet and Wi-Fi based Art-Net/sACN, Hardline DMX, CRMX, and CRMX BT are available for use with the Sidus Four.

So what can Sidus Four do?

1. Ethernet Control: Sidus Four has two 100 Mbit/s Ethernet ports, compatible with Art-Net and sACN protocols, which can transfer data from 4 universes to CRMX and 4 universes to wired DMX.

1.1 Art-Net/sACN wired IN to (4) CRMX Transmitter OUT.

1.2 Art-Net/sACN wired IN to (4) Wired DMX OUT.

1.3 Art-Net/sACN wired IN to (4) CRMX Transmitter OUT and (4) Wired DMX OUT.

2. Wi-Fi Control: Sidus Four has a built-in 5GHz Wi-Fi module. Using a mobile device with a compatible DMX control APP or a Lighting Console that can connect to wireless networks, users can send Art-Net or sACN over Wi-Fi to the Sidus Four; Sidus Four can convert and output (4) universes of DMX data via the XLR DMX ports and (4) additional universes via the (4) CRMX Wireless DMX Transmitters.

2.1 Art-Net/sACN over Wi-Fi IN to (4) CRMX Transmitter OUT.

2.2 Art-Net/sACN over Wi-Fi IN to (4) Wired DMX OUT.

2.3 Art-Net/sACN over Wi-Fi IN to (4) CRMX Transmitter OUT and (4) Wired DMX OUT.

3. DMX IN to CRMX TX: Sidus Four can accept (4) wired DMX signals from a DMX controller, and transmit (4) Universes wireless via CRMX to control CRMX capable devices.

3.1 (4) Wired DMX IN to (4) CRMX OUT.

4. CRMX BT: Apps can connect to one Sidus Four CRMX Bluetooth Transmitter to transfer CRMX and wired DMX Data.

4.1 1 CRMX Bluetooth input, 1 CRMX output and 1-way wired DMX output.

What's in the Box?

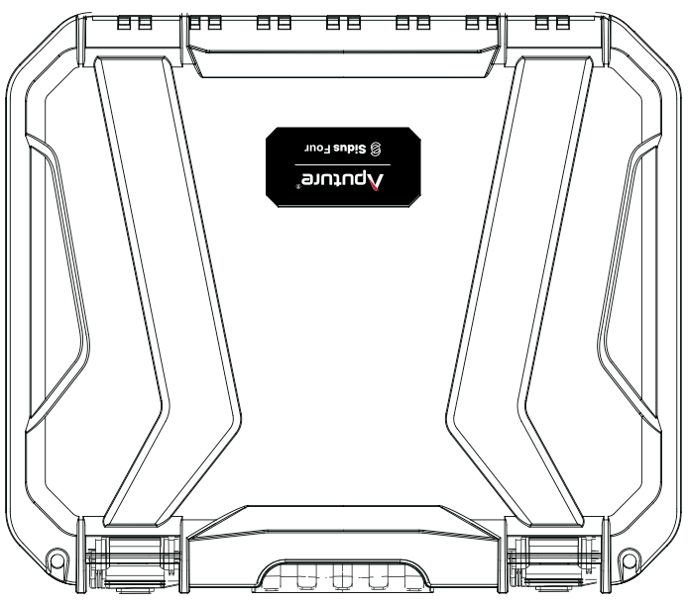

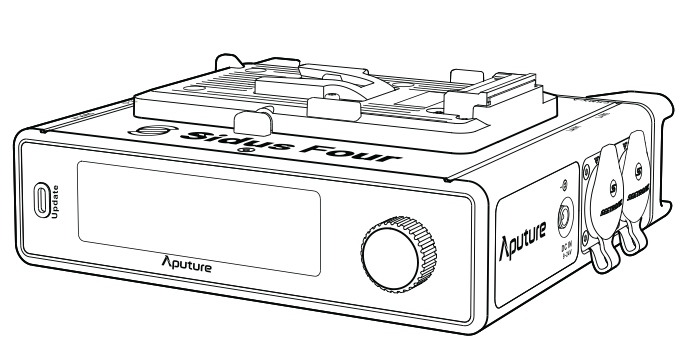

Hard Case (x1)		Sidus Four (x1)

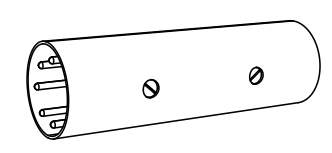

5-Pin XLR Male to 5-Pin XLR Male Adapter (DMX Turnaround) (x4)
	Antenna (x5)	Baby Receiver Adapter with 3/8-16" Anti-Twist Screw (x1)
International Power Conversion Adapters (x5)		Sidus Four Locking Power Adapter (x1)
Sticker Pack	QR Code Card (x1)
