[Sidus Four] Power and Charging

Powering and Charging Sidus Four

Powering and Charging

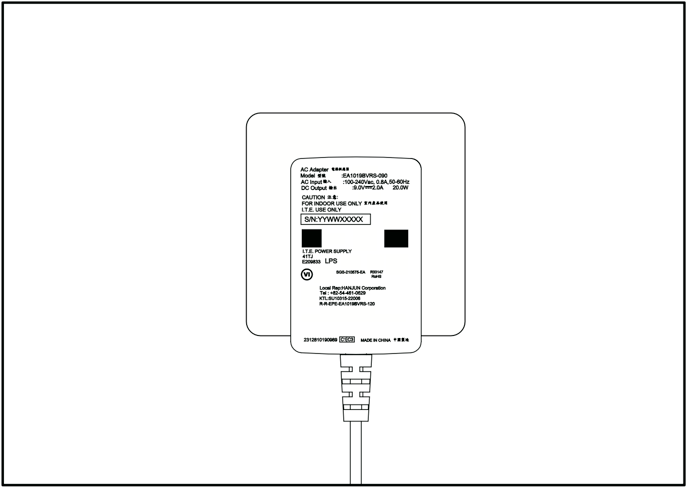

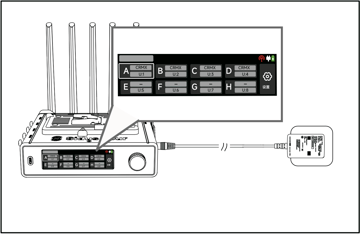

Connecting Power Supply and External Battery

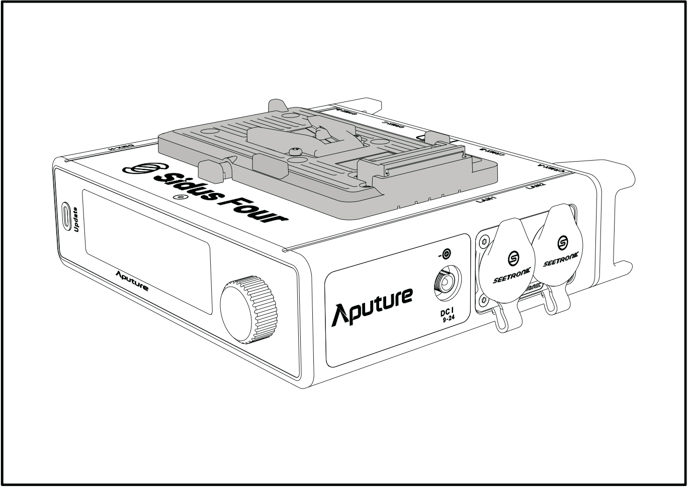

V-Mount Battery Connection

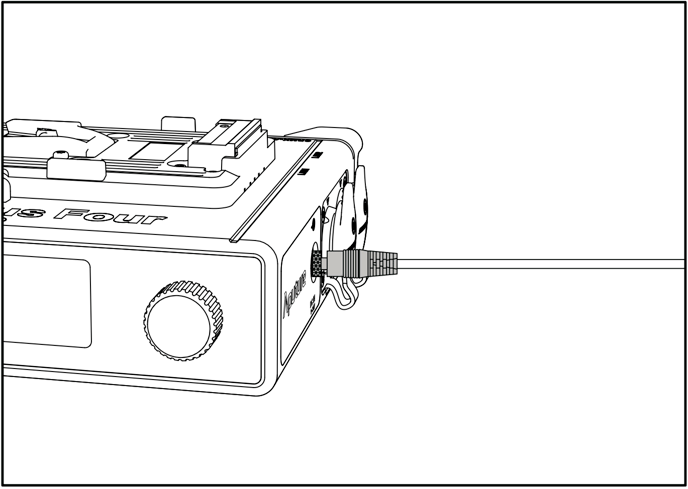

Locking Power Cable input Port

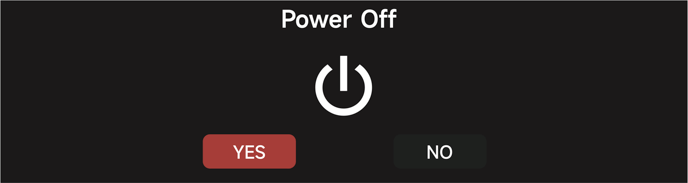

Power On/Off

Sidus Four automatically powers on whenever a power source is provided. To power off Sidus Four, enter the Main Settings menu and select the Power icon.

Charging Backup Battery

Sidus Four comes with an internal 3.7V / 1500mAh lithium battery which is activated when the external power source is disconnected. When an external power supply is disconnected, the built-in internal battery will immediately supply power, and connections will not be affected. When the external power supply is connected again, input power will return to the power source and charge the backup battery if needed.
