      [Sidus One] CRMX Bluetooth IN to CRMX Transmitter/Wired DMX OUT

      CRMX Bluetooth IN to CRMX Transmitter/Wired DMX OUT

      CRMX Bluetooth IN to CRMX Transmitter/Wired DMX OUT

      CRMX BT connection IN

      1. After creating a Project and Scene, open the Connection Management interface found at the top of your Scene toolbar.

      connecting_to_sidus_one_wifi_step_1

      1. Create a Project.

      connecting_to_sidus_one_wifi_step_2

      2. Create a new scene.

      connecting_to_sidus_one_wifi_step_3

      3. Click to connect to Sidus One.

      crmx_bt_connection_in_step_4

      4. Click on "CRMX BT" in the sidebar interface.

      connecting_to_sidus_one_wifi_step_5

      5. The CRMX BT name shares its name with Sidus One's Wi-Fi name. Note the Sidus One's Wi-Fi name on the back of Sidus One.

      crmx_bt_connection_in_step_6

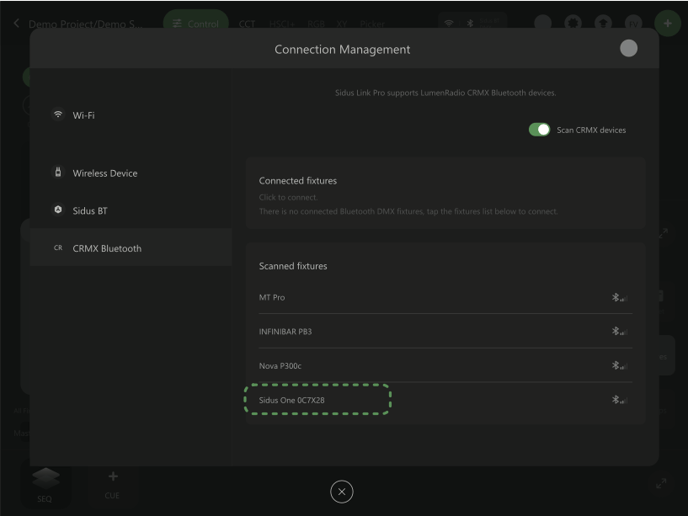

      6. Select the Sidus One you wish to use as a CRMX BT device from the list of Available Devices.

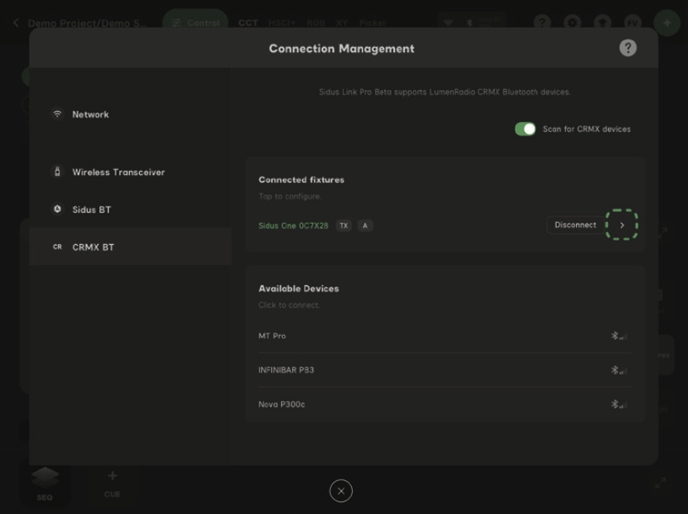

      crmx_bt_connection_in_step_77. Once connected, select the caret to access the CRMX BT settings of your Sidus One.

      crmx_bt_connection_in_step_8

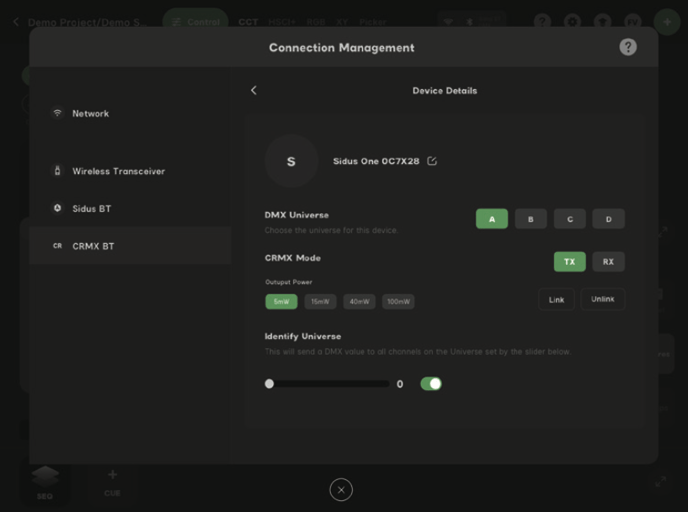

      8. Choose your settings for the Sidus One CRMX BT.

      CRMX Transmitter OUT

      1. Set the Sidus One to TX mode.

      sidus_one_tx_rx

      Press and Hold to switch between TX/RX mode

       2. On the light fixture, browse to the CRMX Settings menu. If the light has been previously linked to another transmitter, press Unlink.

      sidus_one_wired_dmx_in_to_crmx_trasmitter_out_step_3

      3. On the Sidus One TX, tap the CRMX Link button to initiate CRMX linking.

      sidus_one_crmx_link_button



      		 sidus_one_crmx_linking


      1. Tap CRMX Link button 2. The CRMX Status Light will blink rapidly while linking.

      sidus_one_wired_dmx_in_to_crmx_trasmitter_out_step_4

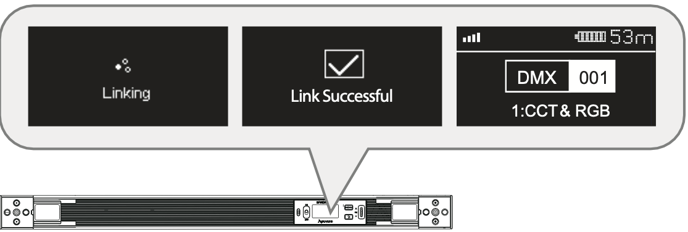

      The linked light or receiver will show the CRMX signal strength when connected to the Sidus One TX.

      Wired DMX OUT

      sidus_one_wired_dmx_out_step1



      		 sidus_one_wired_dmx_out_step_2


      1. Insert DMX Adapter into the DMX Port on the bottom of the Sidus One2. Plug the 5 Pin Female cable into a Light's DMX IN port.

      2. Plug the 5 Pin Female Out cable into a Light's DMX IN port.

      When used with Aputure fixtures that utilize a USB Port for DMX, an Aputure Active DMX Adapter must be used on the Light. If the product is amaran, an amaran DMX Adapter must be used on the light. Sidus One does not receive or transmit data via its USB-C port.
