[Sidus One] Fixture Buttons & Function

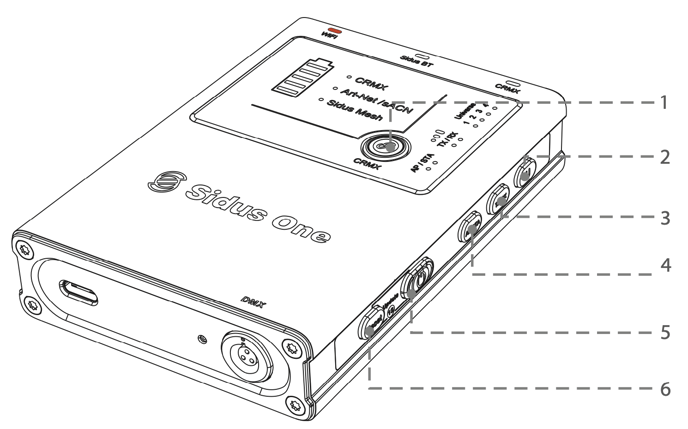

Fixture Buttons and function of Sidus One

sidue_one_buttons_and_function

ID Number Button Function Operation

Description
1 CRMX CRMX TX Link/Unlink (TX Mode) Tap Send CRMX Linking Signal
Hold for 3s Unlink all Receivers

CRMX RX Unlink (RX Mode)

 Hold for 3s Unlink from CRMX Transmitter
2 U Wi-Fi Universe Settings Hold for 1s Change Universe
3 TX/RX Mode Hold for 1s Switch between Transmitter (TX) and Receiver (RX) Mode
4 AP/STA Wi-Fi Mode Settings Hold for 1s Switch between Access Point (AP), Station (STA) Modes and Wi-Fi Off
5 shutdown button



 Power Hold for 3s Power Sidus One On/Off
6 RESET Reset to Factory Settings Hold for 3s Restore factory settings (All Status Lights will flash)
Reset Sidus BT Tap Twice Consecutively Reset Sidus Bluetooth
(Sidus Mesh Light will flash rapidly)
7 RESET+ Power Update Device Firmware from USB Hold together for 1s Trigger USB flash drive to update
(All Universe Lights will flash together)
