[Sidus One] Indicator Status Lights

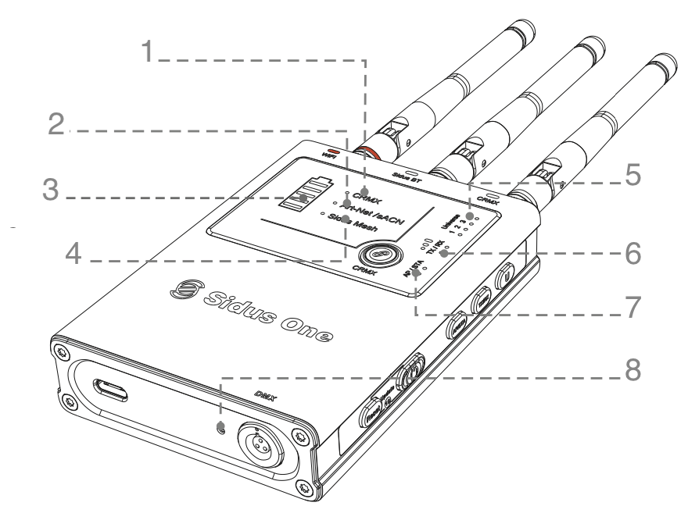

Indicator Status Lights of Sidus One

sidus_one_indicator_status_light
  1. CRMX Status Light
  2. Wi-Fi Status Light

  3. Battery Capacity Indicator Light

  4. Sidus BT Status Light

  5. Art-Net/sACN over Wi-Fi Universe Status Light

  6. CRMX Mode and RX Signal Strength Light

  7. Wi-Fi Mode Status Light

  8. DMX Activity Light

ID Number Indicator Light Function LED Status Description
1 CRMX CRMX Status: TX Mode Slow Flash No Data present
Normal Flash Unlinking all Receivers
Fast Flash Sending Link Signal
Solid Transmitting Data
RX Mode Off Not linked to a TX
Slow Flash Linked to TX but no Data is present
Fast Flash Fast Flash (Momentary) | Linking
Fast Flash (Continuous) | Linked but TX not found
Solid Linked to TX and Receiving Data
2 Art-Net/sACN Wi-Fi Status

Off

No Art-Net or sACN signal found Or Wi-Fi is Off
Solid Wi-Fi detected and Receiving Data
Slow Flash Wi-Fi is connected but no Data is present
3 Battery Battery Capacity Lights 5 on 100%
4 on 80%
3 on 60%

2 on

40%
1 on 20%
1 on, then blinks off every 5 seconds 10%
Waterfall Charging
4 Sidus Mesh Sidus BT status Off (TX Mode) Sidus Mesh is unavailable
Slow Flash (RX Mode) Sidus Mesh BT is ready to be paired
Solid (RX Mode) Sidus Mesh BT has been paired
Flashing Rapidly (RX Mode) Sidus Mesh BT is resetting
5 Universe Art-Net/sACN Universe over Wi-Fi 1 On Device set to listen to Art-Net/sACN Universe 1
2 On Device set to listen to Art-Net/sACN Universe 2
3 On Device set to listen to Art-Net/sACN Universe 3
4 On Device set to listen to Art-Net/sACN Universe 4
Firmware Upgrade Mode All 4 Universe lights flash Waiting for USB Drive
Universe light blink 1 at a time Updating
All 4 on Momentarily Update Successful
1, 2 and then 2, 4 quickly flash Update Failed
6 TX/RX CRMX mode TX on CRMX Transmitter Mode
RX on CRMX Receiver Mode
Signal Strength RX Mode Signal Strength 3 Bars Strong Signal Strength
2 Bars Medium Signal Strength

1 Bar

Low Signal Strength
0 Bars Out of Range of Transmitter
7 AP/STA Wi-Fi Mode AP on Access Point Mode
STA on Station/Client Mode
Off Wi-Fi is Off
8 DMX DMX Activity Light Off DMX Data is not being sent out the DMX Port(TX Mode)
No DMX Data Found(RX Mode)
On DMX Data is being sent out of the DMX Port (TX Mode)
DMX Data Received(RX Mode)
