[Sidus One] Overview
Overview of Sidus One
Sidus One is an Aputure lighting control accessory which accepts and converts wired and wireless lighting protocols. Wi-Fi Art-Net/sACN, Hardline DMX, CRMX, CRMX BT, and Sidus BT are all available for use with the Sidus One.
So what can it do?
Wi-Fi: Using a mobile device with a compatible DMX control APP or a Lighting Console that can connect to wireless networks, users can send Art-Net or sACN over Wi-Fi to the Sidus One; Sidus One can convert and output one universe of DMX data via the wired DMX adapter or via (TX) CRMX Wireless DMX.
1. Art-Net/sACN over Wi-Fi IN to CRMX Transmitter OUT.
2. Art-Net/sACN over Wi-Fi IN to Wired DMX OUT.
DMX IN/OUT and CRMX TX/RX: Sidus One can accept wired DMX signal from DMX consoles, and trans- mit wirelessly via CRMX to control CRMX capable devices.
1. Wired DMX IN to CRMX Transmitter OUT.
2. CRMX Receiver IN to Wired DMX OUT.
CRMX BT: Compatible Apps can connect to Sidus One via CRMX BT and transmit CRMX and hardline DMX 512 data.
1. CRMX Bluetooth IN to CRMX Transmitter OUT
2. CRMX Bluetooth IN to Wired DMX Out
Sidus BT: When Sidus One is set as the Master Node in the Sidus Link App, it provides enhanced stability of the Sidus Mesh network and improves the reliability of a Sidus Link setup.
1. Sidus BT Master Node to Sidus BT Compatible Fixtures.

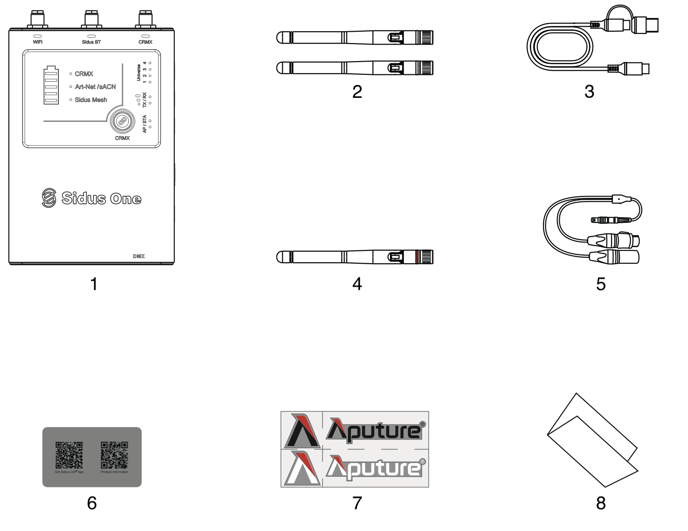

What's in the Box?
- Sidus One (1x)
-
Sidus BT / CRMX Antenna (White) (2x)
-
USB power cable (0.8m) (1x)
-
Wi-Fi Dual Frequency Antenna (Red) (1x)
-
3-Pin Push-Pull Connector to 5-Pin XLR DMX IN/OUT adapter (1x)
-
QR code card (1x)
-
Sticker (1x)
-
Sidus Link Instructions (1x)
