      [Sidus One] Wired DMX IN to CRMX Transmitter OUT

      Wired DMX IN to CRMX Transmitter OUT

      Wired DMX IN to CRMX Transmitter OUT

      1. Set Sidus One to TX mode

      sidus_one_tx_rx

      Press and Hold to switch between TX/RX mode

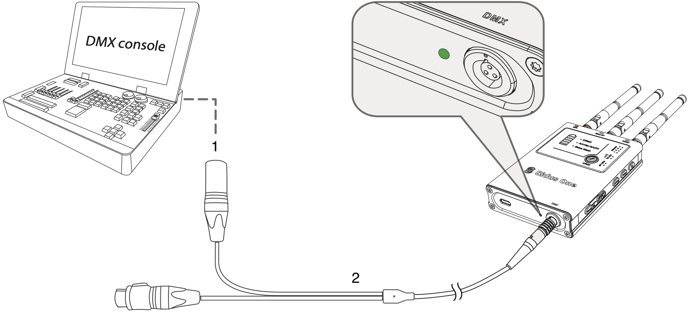

      2. Connect the DMX IN/OUT adapter to the 3 Pin Port and connect the DMX IN Male cable to the console. The DMX Status indicator will illuminate when there is an active DMX512 Signal. The CRMX Light will remain solid when there is an active DMX signal and data is present.

      sidus_one_wired_dmx_in_to_crmx_trasmitter_out_step_2

      1. Connect to console

      2. DMX IN/OUT Adapter

      3. On the light fixture, browse to the CRMX Settings menu. If the light has been previously linked to another transmitter, press Unlink.

      sidus_one_wired_dmx_in_to_crmx_trasmitter_out_step_3

      4. On the Sidus One TX, tap the CRMX Link button to initiate CRMX linking.

      sidus_one_crmx_link_button



      		 sidus_one_crmx_linking


      1. Tap CRMX Link button 2. The CRMX Status Light will blink rapidly while linking.

      sidus_one_wired_dmx_in_to_crmx_trasmitter_out_step_4

      The linked light or receiver will show the CRMX signal strength when connected to the Sidus One TX.
