[amaran SM5c] Installing the Strip Light

Setting up the SM5c

Installation

1. Choose a dry, clean, and smooth surface to install the strip light.

sm5c_dry_clean_surface

Do not install strip light on surfaces such as fabric, dusty walls, rough plastic, and frosted glass.

2. Clean the mounting surface with the included cleaning kit.

sm5c_clean

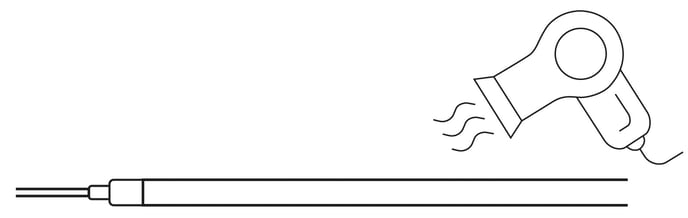

3. When the ambient temperature is lower than 10℃/50℉, please use a hair dryer to heat it before installation to achieve the best adhesive effect.

sm5c_hair_dryer

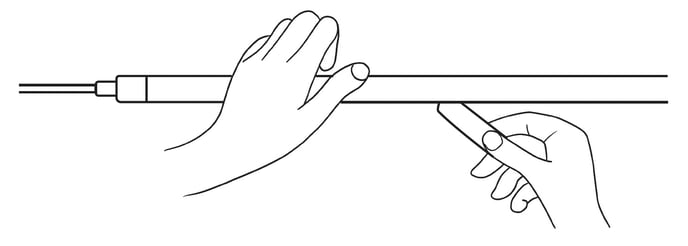

4. After confirming the installation position, remove the dust proof paper tape from the double-sided tape on the back of the strip light, and mount the strip light to your chosen surface.

sm5c_paper_tape

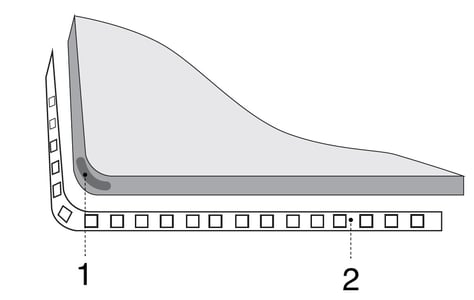

5. After the strip light is installed, use the included double-sided tape to reinforce any corners or areas where the adhesive is not strong.

sm5c_double_sided

1. Double-sided tape                                 2. Strip light

6. After arranging the LED controller and wires to the desired position, fix them with double-sided tape.
