[Spotlight Max] Getting Started

Setup

Installing Spotlight Max Rotatable Gobo Holder

Installing A Size Steel or Glass Gobo

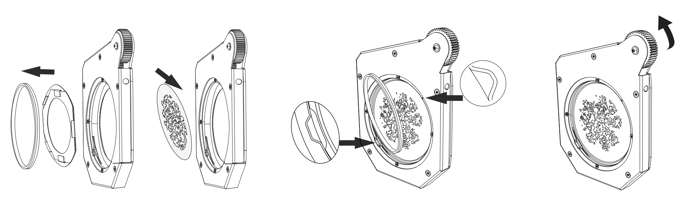

1. Push out the retaining ring from the Gobo holder and insert the A Size Gobo at an angle into the rotating Gobo holder.

2. Align one side of the retaining ring with the trapezoidal marking and then press down at the triangular notch to ensure the retaining ring is properly inserted into the Gobo Holder.

3. Turning the gear above allows you to adjust the angle of the Gobo pattern.

Installing B Size Steel or Glass Gobo

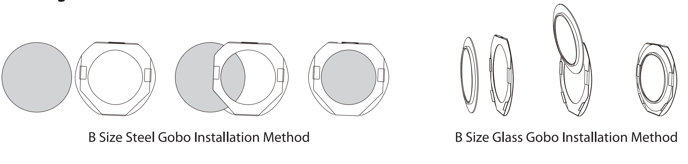

1. As shown in above illustration, insert the B size Steel or Glass Gobo into the B Size Gobo Adapter.

2. Follow the installation method used for A Size Gobo and proceed with the installation. The fixture can now be used with the B Size Gobo.

Installing the Rotatable Gobo Holder

When installing the Rotatable Gobo Holder, make sure the rotating gear and the locking pin are aligned on the same side.

The components of this product may deform slightly or experience other issues such as smoke or discoloring after being exposed to high temperatures. These are expected behavior. Melting of any plastic parts or excessive amount of smoke can be deemed abnormal.

Installing and Removing Spotlight Max Lens

spotlight-max-lens

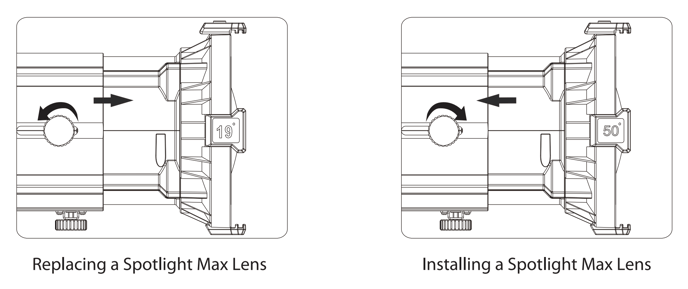

1. Rotate the Side Locking Knob counterclockwise to remove it. Pull out the existing lens and place it on a flat, safe area to prevent any damage to the optical elements.

2. Insert the new lens into the fixture barrel. Reattach the Side Locking Knob and rotate it clockwise to secure the lens in place.

3. To adjust the focus, loosen the Side Locking Knob slightly, slide the lens to a desired position, and fasten the Side Locking Knob to lock its position.

Installing and Removing Spotlight Max Removable Yoke

Installing:

1. Ensure the mounting brackets on the Removable Yoke are in the correct orientation to accept the Quick-Release Connectors on the Spotlight Max.

2. Lower the Spotlight Max onto the Removable Yoke while aligning the quick-release brackets and connectors. There should be a clear clicking sound when the Locking Levers are engaged.

Removing:

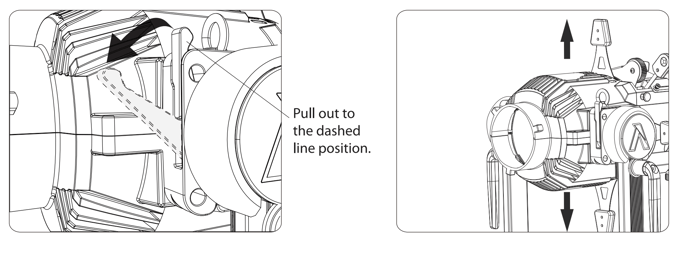

Pull out the Locking Lever of the Quick-Release Connectors on both sides and lift the Spotlight Max upward to detach it from the brackets.

Ensure both Tilt-Lock Handles are tightened while installing the Removable Yoke, as the fixture may be from or back-heavy and tilt down violently upon letting go.

Installing Spotlight Max Iris (sold separately)

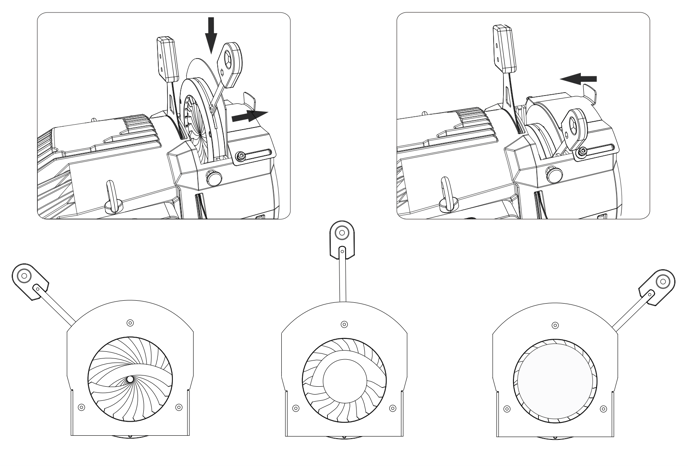

1. Slide the Dust Cover to open it, and insert the Iris in the designated slot.

2. Slide the Dust Cover back until the top of the Iris is secured by the cover, to prevent the Iris from falling out when the fixture is tilted upside down.

3. Adjust the the position of the Iris handle to close down the aperture and achieve the desired beam effect.

Installing Spotlight Max ETC Lens Adapter (sold separately)

1. Rotate and remove/release the Locking Knob on the side and the bottom of the fixture. Remove the lens from the Spotlight Max if there is one installed.

2. Insert the ETC Lens Adapter into the barrel of the fixture and ensure that the slot cut out on the side of the adapter is aligned with the cutout on the barrel. Once aligned, tighten the Bottom Locking Knob to secure the adapter in place.

3. Rotate and remove the Locking Knob on the ETC lens. Insert the lens into the adapter and ensure that the female threaded hole is aligned with the cutout on the barrel of the Spotlight Max. Re-install the Locking Knob from the ETC lens, adjust the lens position to achieve the desired focus, and tighten the Locking Knob to fix the lens in place.
