[Spotlight Max] Operating Instructions

Operating Instructions of Spotlight Max

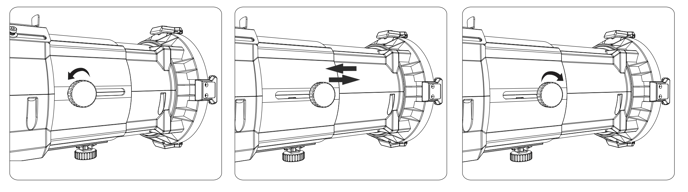

Focus Adjustment

1. Rotate the Side Locking Knob counterclockwise to release the lens tube.

2. Slide the lens backwards and forward to achieve the desired focus.

3. Tighten the Side Locking Knob to secure the focus.

Tilt Angle Adjustment

1. To adjust the tilt angle of the Spotlight Max, hold the fixture in place and loosen both Tilt-Lock Handles.

2. Adjust the tilt angle of the fixture until it reaches the desired position.

3. Tighten the Tilt-Lock Handles to secure the fixture in place.

Four-Leaf Shutter Operation

Spotlight Max has 4 shutters allowing users to precisely shape the light beam. Each shutter can be adjusted independently by rotating or sliding them within their range of motion.
