      [STORM 1000c] Ethernet Setting

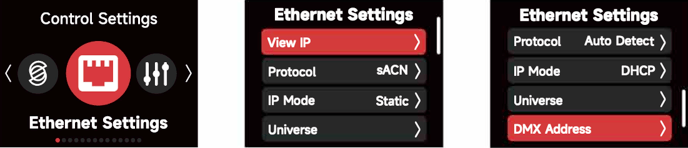

      Ethernet Setting of STORM 1000c

      View and edit Ethernet Settings.

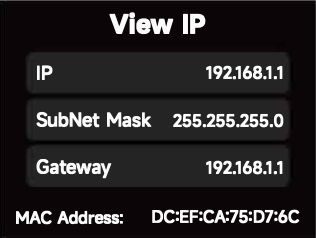

      View IP

      View the IP Address, Subnet Mask, Gateway IP and the MAC Address of the Control Box.

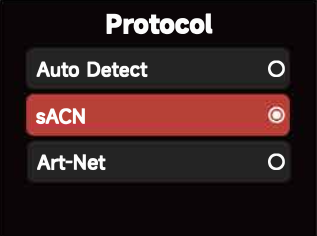

      Protocol

      Select the Control Protocol for this Control Box to listen to. Choose between Auto, Art-Net, or sACN.

      • Automatic: identifies the Control Protocol automatically.
      • Art-Net: recognizes the Art-Net Protocol only and ignores sACN.
      • sACN: recognizes the sACN Protocol only and ignores Art-Net.

      IP Mode

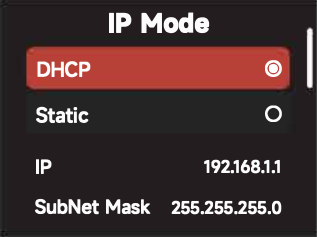

      IP Mode DHCP:

      The fixture will automatically receive an IP address from the DHCP server. When in DHCP IP
      Mode, the IP Address, Subnet Mask and Gateway IP Address cannot be edited.

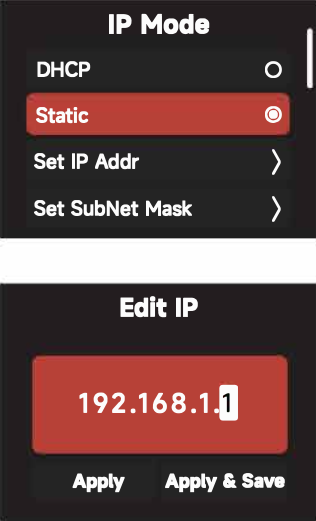

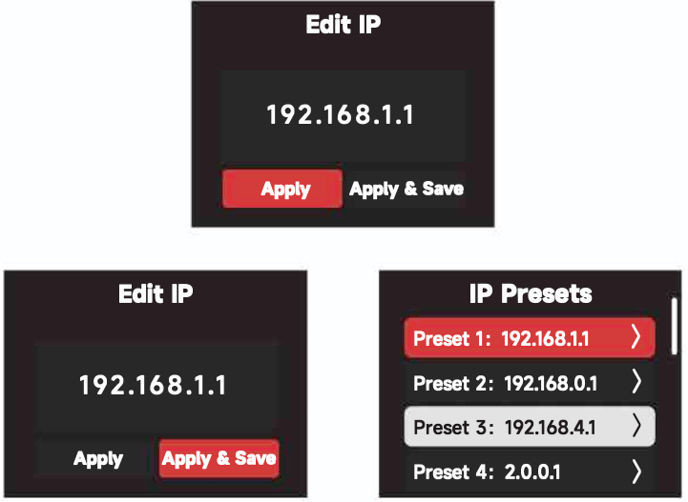

      IP Mode Static:

      Manually set the IP address, Subnet Mask and the Gateway IP address.

      • Set the IP Address using the Select Wheel and then press the Back Button to exit the
        editing interface. Choose whether to "Apply" the IP or "Apply & Save" the IP to a Preset for
        use in the future.

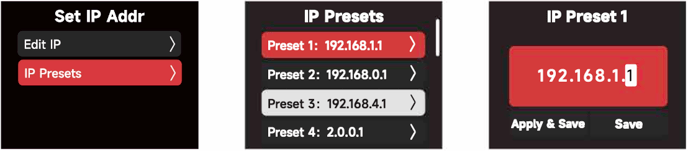

        In the Presets interface, select a Preset to edit or apply.
        Presets can be edited and saved without applying them to the Control Box's current IP settings by choosing the "Save" option. (save 10 IP Presets in total)

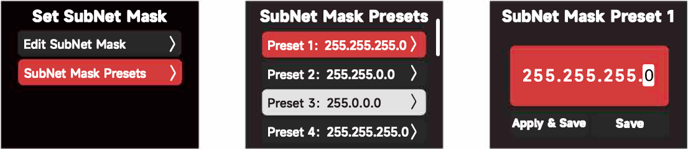

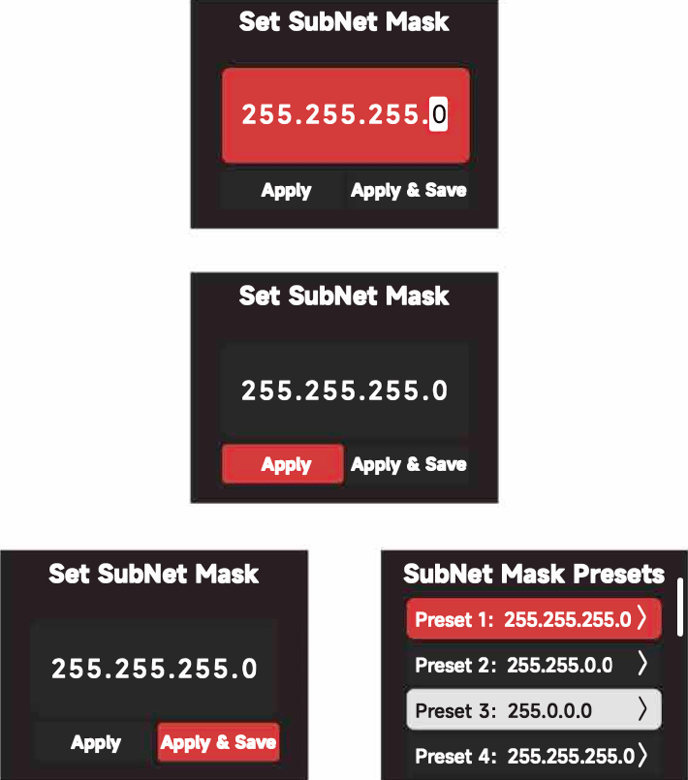

      • Set SubNet Mask
        Using the Select Wheel, edit the SubNet Mask information for the Control Box. Use the
        BACK Button to exit the editing interface. Choose whether to "Apply" the IP or "Apply &
        Save" the IP to a Preset for use in the future.

        In the Presets interface, select a Preset to edit or apply.
        Presets can be edited and saved without applying them to the Control Box's current IP settings by choosing the "Save" option. (save 10 IP Presets in total)

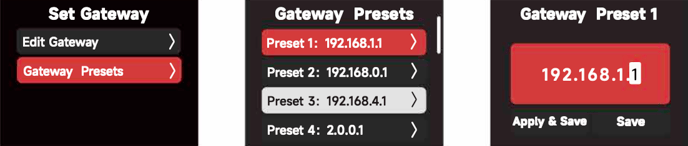

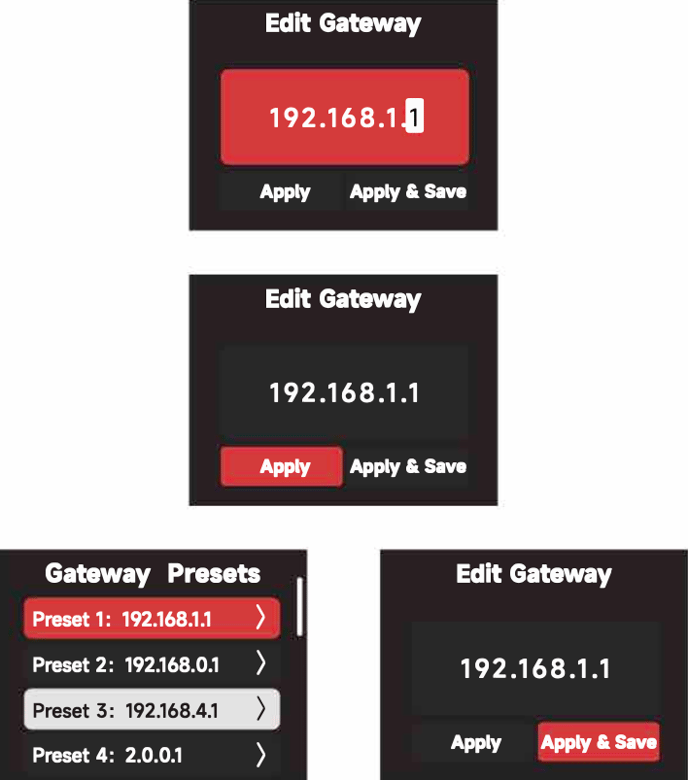

      • Set Gateway IP
        Using the Select Wheel, edit the Gateway IP information for the Control Box. Use the
        BACK Button to exit the editing interface. Choose whether to "Apply" the IP or "Apply &
        Save" the IP to a Preset for use in the future.

        In the Presets interface, select a Preset to edit or apply.
        Presets can be edited and saved without applying them to the Control Box's current IP settings by choosing the "Save" option. (save 10 IP Presets in total)

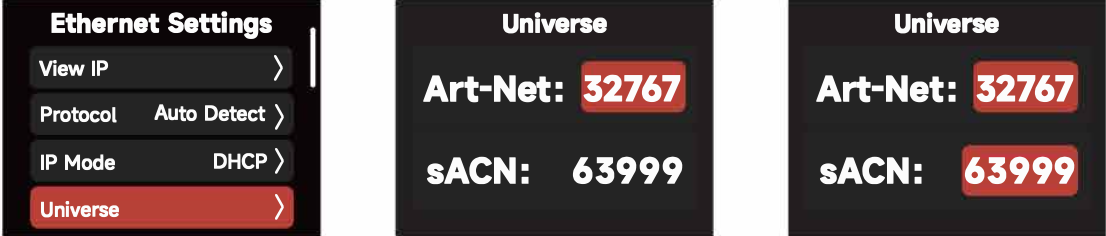

      UniverseSet the Universe of Art-Net and sACN: Art-Net (00000-32767), sACN (00001-63999).

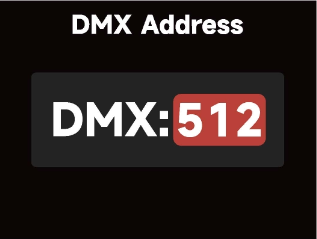

      DMX Address: Set the DMX Address
