[STORM 1000c] Lighting Modes

Lighting Modes of STORM 1000c

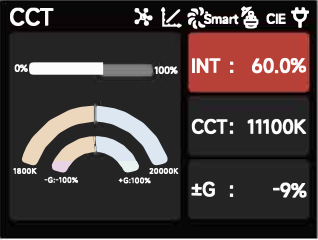

CCT

Adjust the Color Temperature (1800K-20000K) and the ± Green levels (-100% through + 100%).

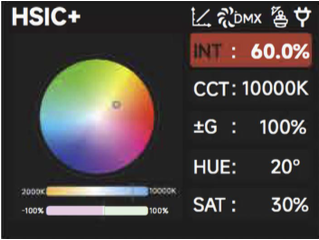

HSIC+

Adjust the Intensity (0-100%), Color Temperature (1800K-20000K), ±Green level (-100%

through + 100%), Hue and Saturation.

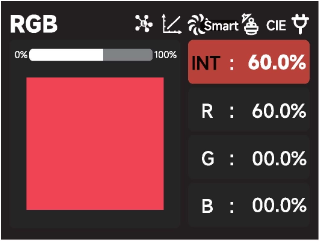

RGB

Set the values of Red, Green and Blue (0-100%) to achieve the desired color; then use the
Master Intensity to raise and lower the overall brightness of the fixture without changing the colors individually.

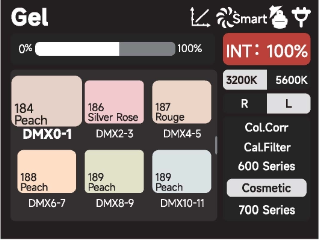

GEL

Choose a base Color Temperature of 3200K or 5600K color and the corresponding Rosco
or LEE gel to output the desired light.

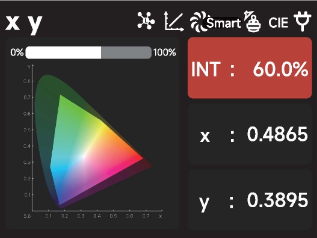

x y

Set the Intensity, x and y coordinate value (0-0.8000).

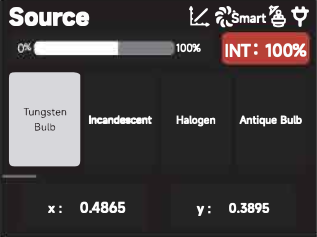

Source

Select the light source to mimic and fine tune the xy coordinates.

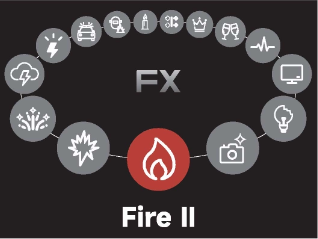

FX

Select between FX modes: Fire II / Paparazzi / Faulty Bulb II / TV II/ Pulsing II / Party Lights /

Club Lights / Color Chase / Candle / Welding II / Cop Car II / Strobe II / Lightning II / Fireworks

/ Explosion II.

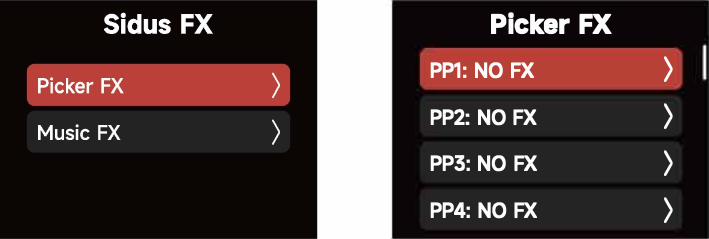

Sidus FX

Select either Picker FX or Music FX. Both custom FX choices can save up to 10 FX. "NO FX" indicates that nothing has been saved to this slot. Untitled indicates that an effect has been saved to the slot. The two types of light effects can save 10 custom light effects each. The suffix "NO FX" indicates that no light effect has been saved.
