[STORM 1000c] System Settings

System Settings of STORM 1000c

Dimming Curve

The following Dimming Curves are available: Linear, Logarithmic, S-Curve and Exponential.

Output Settings

• Constant Output: The lamp's brightness is kept consistent throughout the color temperature range.
• Max Output: The lamp's brightness is prioritized throughout the color temperature range.



White Light Standard

• CIE Daylight: meets the sunlight standard

  • (5000K-20000K, Duv is controlled at 0.0020~0.0040)

• Blackbody: meets the blackbody luminescence standard

  • (Duv is controlled near the blackbody trajectory line)

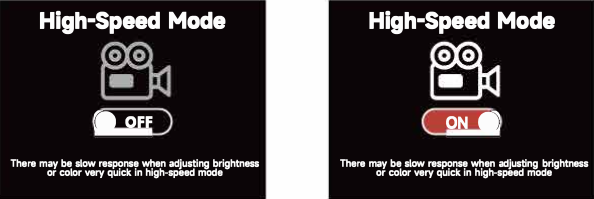

High-Speed Mode

If High-Speed Mode is ON:

• The lowest intensity output is 20% when utilizing High-Speed Mode.

• FX Modes cannot be utilized in High-Speed Mode.

Fan Mode

In the System Settings Fan Mode, rotate the Select Wheel and press to choose between
Smart, High, Medium, Silent and DMX Controlled Fan Mode.

When using the DMX Controlled Fan Mode, the options for the Fan are:

• Smart: able to work in -20°C/-4°F through 45°C/113°F environment, the lamp will automatically adjust the fan speed according to different ambient temperatures.
• High: able to work in -20°C/-4°F through 45°C/113°F environment, fan will maintain its
  highest speed. In High-Speed Mode, the fan uses the Max Fan setting.
• Medium: Capable of working in -20°C/-4°F through 35°C/95°F environments, the fan uses
  a medium speed. Medium is the slowest speed possible for Maximum Output.
• Silent: When working in an environment of -20°C/-4°F-45°C/113°F, the fan stays OFF, but
  the output of the lamp is limited to 75W. See the STORM 1200x DMX Chart for
  details.

• DMX Controlled: See the STORM 80c DMX Chart for details.

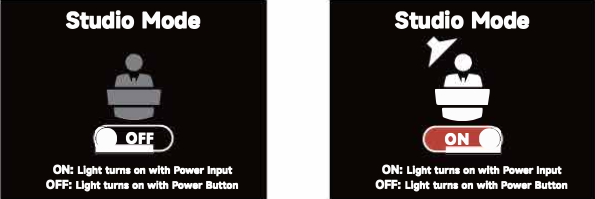

Studio Mode

When Studio Mode is enabled (ON), the fixture will power on when connected to live power.

When Studio Mode is disabled (OFF), press the power button to power on or power off the

fixture.

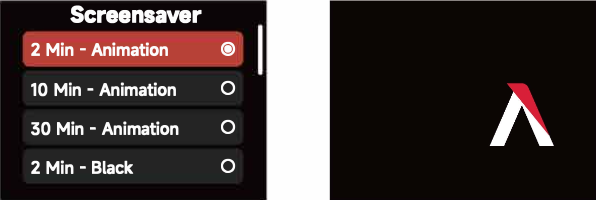

Screensaver

Select the Screensaver time and display behavior.

Language

Select between English or Chinese and press the Select Wheel to confirm.

Product Information

The Firmware Version, SN, Sidus BT ID, Hardware Version and Operating status, can all be
checked in the Product Info interface.

1. The Firmware Version, SN, Sidus BT ID, Hardware Version and Operating status, can all

   be checked in the Product Info interface.



2. Hardware Version: display the hardware versions of the Control Box and attached Lamp Head.



3. Operating Status: display the Temperature, Lamp Head Run Time, and any Error Codes.



   1. Temperature: Display the Ambient temperature, MCU temperature, and LED temperature.



   2. Fixture Run Time: Display the LED engine use time.


   3. Errors:
      If the lamp is operating as expected, then the display will read: "Errors: O"
      Errors are divided into two categories:
      i. Serious error: When a serious error occurs, the fixture cannot be used and will be locked for protection. Please respond to the error according to the fault prompt.
      ii. General error: When a general error occurs, the fixture is still available for use;
      enter the Product Info interface to view the error details.

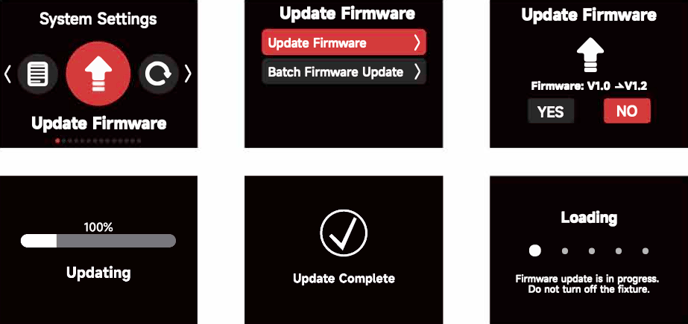

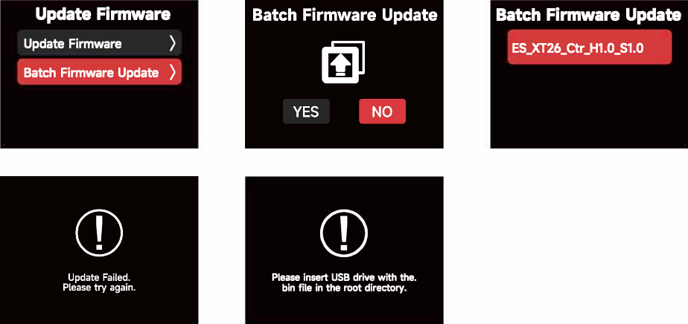

Firmware Update

Upgrade the firmware by inserting a USB flash drive with the latest firmware on its root drive
into the USB-A port of the Control Box . The current firmware version is also listed in this
interface. NOTE: The fixture can also be updated via Sid us Link with Sid us BT turned ON and
a Wi-Fi internet connection on your Sidus Link/Siduslink Pro device. Remember to update
both the Control Box and the connected Lamp Head with any new firmware.

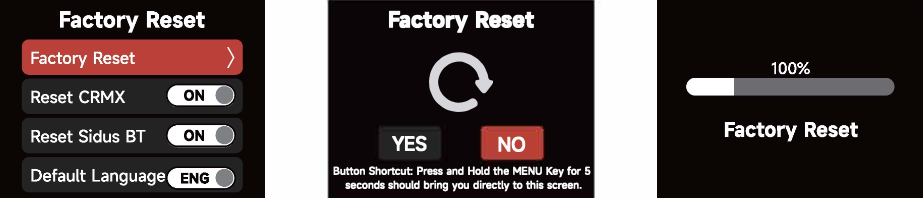

Factory Reset
In the Factory Reset Menu, select "YES" if you wish to Factory Reset the fixture; select "NO"
to cancel.

Choose whether to reset CRMX and Sidus BT and the desired Default Language.

The factory settings are:
