[STORM 1200x] DMX Settings

DMX Settings of STORM 1200x

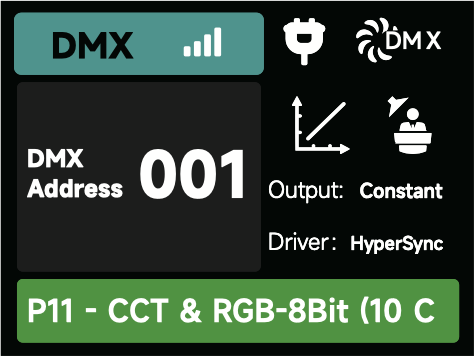

1. DMX Status Screen: Displays DMX data status, the DMX address, the DMX Profile being
   used, the CRMX Signal Strength, Fan Mode, Dimming Curve, Studio Mode in use, Output
   Mode, Power Status and more.

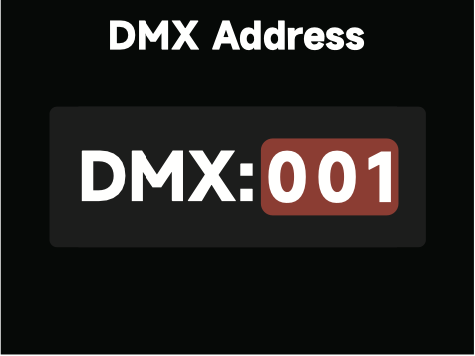

2. DMX Address: Set the DMX address of this device.

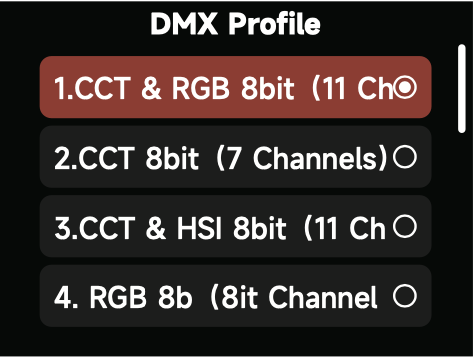

3. DMX Profile: Choose which DMX Profile to use. Refer to the DMX Chart for the specifics
   of each profile.

4. DMX Loss Behavior--from the following options:
   1. Hold Last Look: when DMX signal is lost, DMX values will be retained until signal is regained.
   2. Black Out: when DMX signal is lost, the light will black out.
   3. Fade to Black: when DMX signal is lost, the light will wait for 60 seconds before fading to black.
   4. Hold 2 min.&Fade Out: when DMX signal is lost, the DMX values are retained for two
      minutes before fading out over a time of 60 seconds.

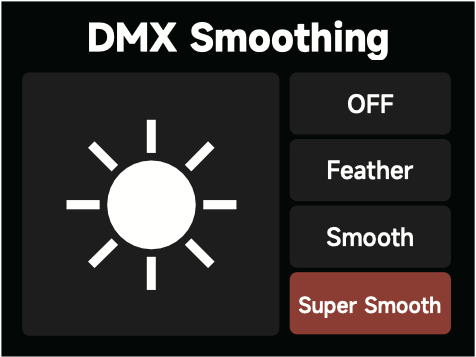

5. DMX Smoothing：Set the smoothness of DMX dimming.

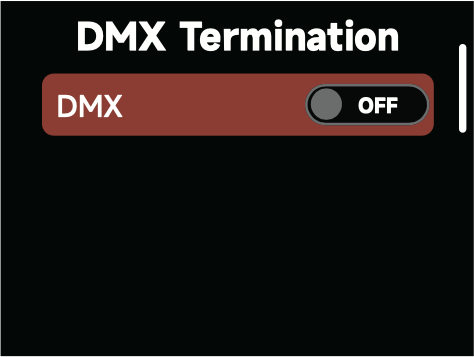

6. DMX Termination: Turn ON (to help with DMX signal reflection) or OFF.
