      [Storm 1200x] Getting Started

      Setting up your Storm 1200x

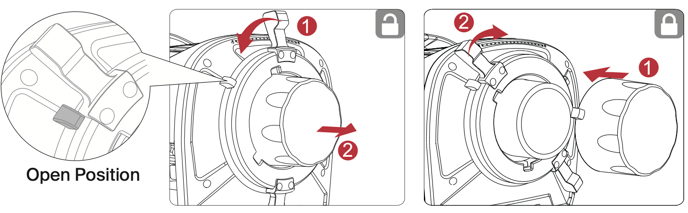

      Attaching/Detaching the Protection Cover

      To detach the cover, rotate the Pro-Lock Handle to the open position and remove it. To reattach the cover, insert it into place and rotate the Pro-Lock Handle clockwise until locked.

      storm_1200x_attaching_and_detaching_the_protection_cover

      Before use, please make sure to remove the protective cover. During transportation and
      storage, please attach the protective cover.

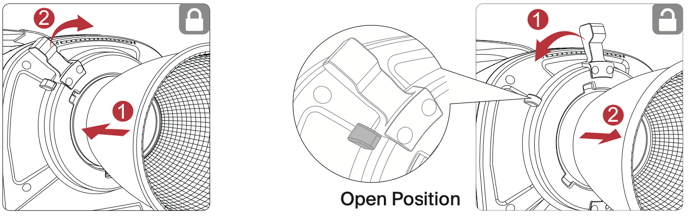

      Attaching/Detaching the Reflector

      To attach the Reflector, insert it into the Bowen Bayonet Mount and rotate the Pro-Lock
      Handle clockwise until locked. To detach the Reflector, rotate the Pro-Lock Handle to the
      open position and remove it.

      storm_1200x_attaching_and_detaching_the_reflector

      Installation of a Reflector

      Reflector removal

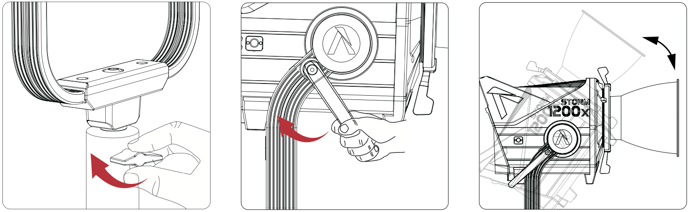

      Setting Up the Lamp Head

      Mount the Lamp Head into a Junior Receiver and tighten in place. Loosen or tighten the disc
      brake handle on the yoke to adjust the fixture's angle of tilt.

      storm_1200x_setting_up_the_lamp_head

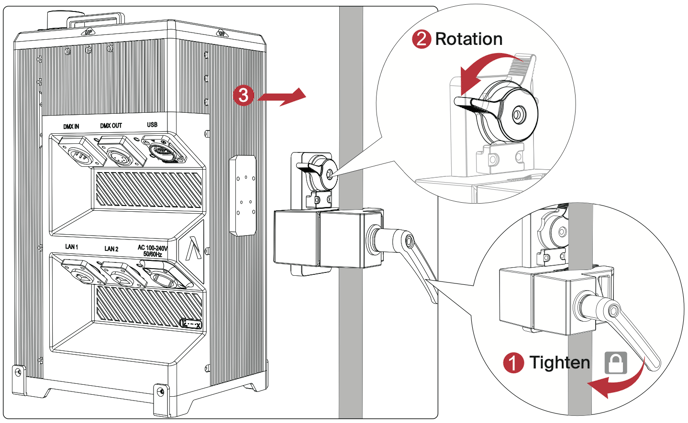

      Using the Lightning Clamp

      1) Attach the Lightning Clamp onto a light stand.
      2) To attach the Control Box, rotate the release lever to unlock the quick-release plate. Then mount the Control Box onto the Lightning Clamp (the release lever will spring back) and check that it is secure.

      storm_1200x_using_the_lightning_clamp

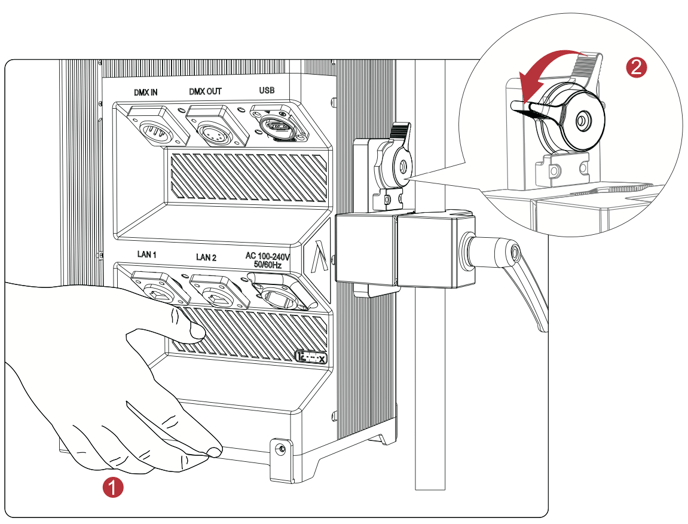

      3) To remove the Control Box, grasp it firmly, and unlock the quick-release plate by
      turning its lever.

      The Lightning Clamp can attach to round or square fittings with a diameter of 2-5cm /
      0.79-1.97 in.

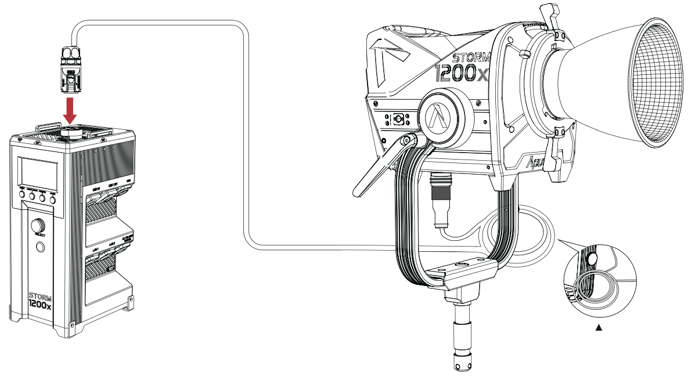

      Connecting the Lamp Head to the Control Box

      Connect the Lamp Head to the Control Box using the 8-pin Weatherproof Head Cable.

      storm_1200x_connecting_the_lamp_head_to_the_control_box

        Hang the cable using the strain relief to
      manage and reduce tension on the cable.

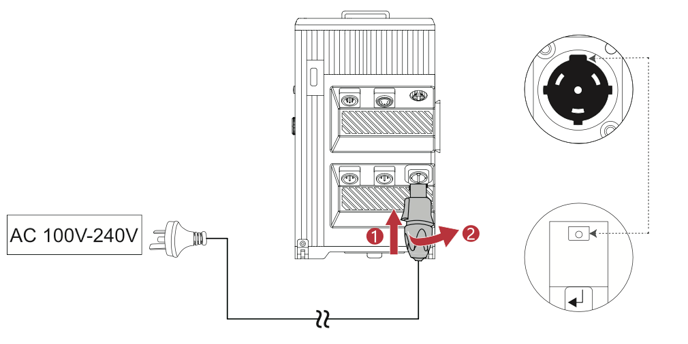

      Powering Up the Control Box

        powerCon IN.

      storm_1200x_powering_up_the_control_box

        Plug positioning slot.

      To disconnect the Neutrik® powerCon cable, pull back on the silver release tab on the cable connector, and rotate the connector counter clockwise. Do not pull directly on the cable.
