      [Storm 1200x] Lighting Modes

      Lighting Modes of Storm 1200x

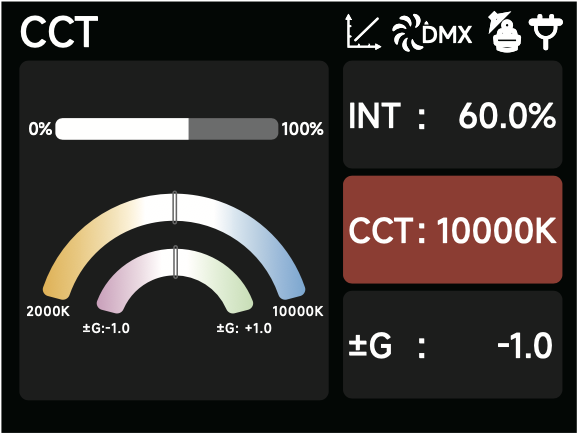

      CCT Mode

      Adjust the Color Temperature (2500K-10000K) and the ±Green level (-1.00 through +1.00).

      storm_1200x_cctmode

      xy Mode

      Set the x coordinate value (0.1550-0.6815) and y coordinate value (0.0300-0.5500) and the Intensity.

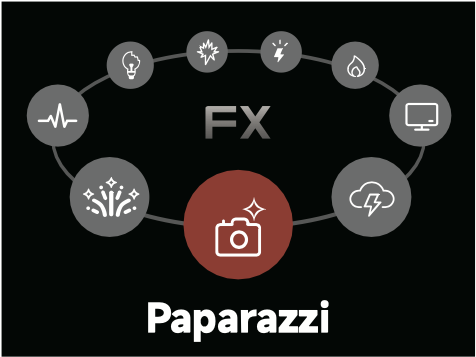

      FX Mode

      Select between FX modes: Fireworks / Explosions / Flames / Paparazzi / Defective Bulb / TV / Pulse / Flash/ Lightning.

        storm_1200x_fxmode_1
      storm_1200x_fxmode_2 storm_1200x_fxmode_3 storm_1200x_fxmode_4

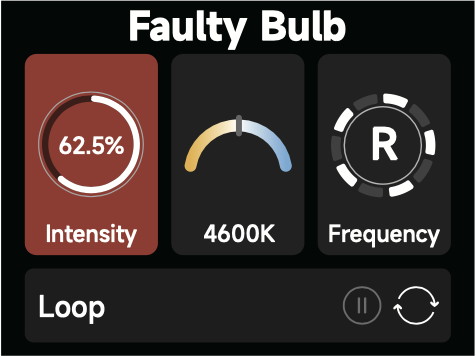

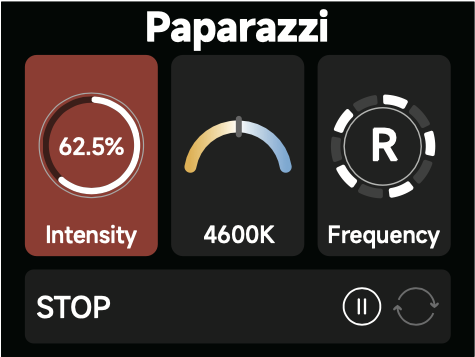

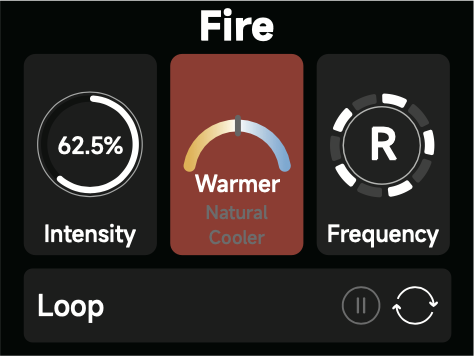

      Flame Mode Paparazzi Mode Faulty Bulb Mode
      storm_1200x_fxmode_5 storm_1200x_fxmode_6 storm_1200x_fxmode_7

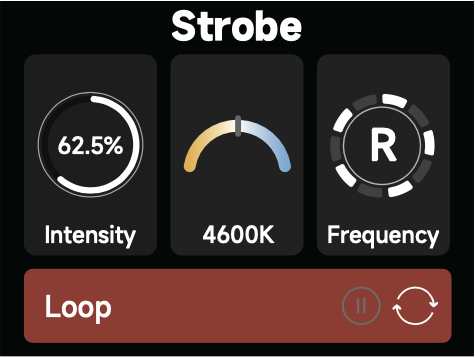

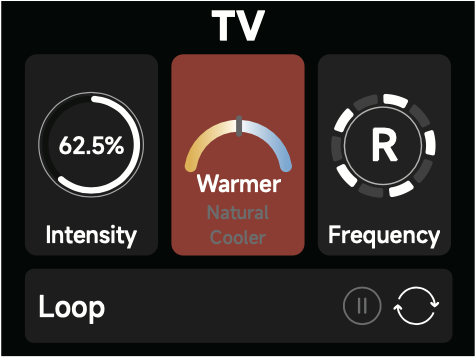

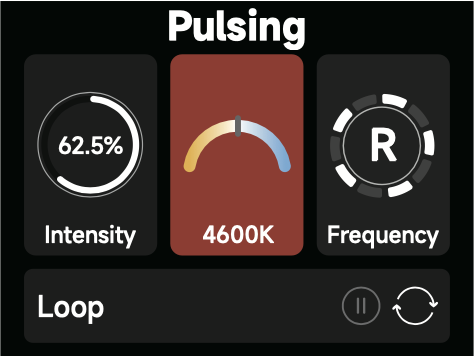

      TV Mode Pulse Mode Flash Mode
      storm_1200x_fxmode_8 storm_1200x_fxmode_9 storm_1200x_fxmode_10

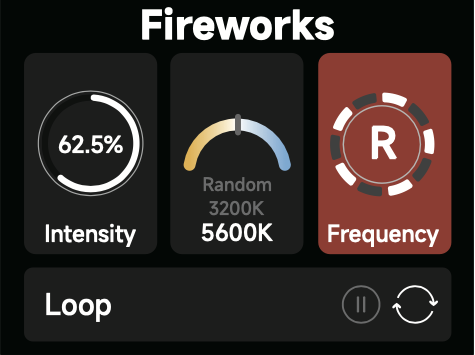

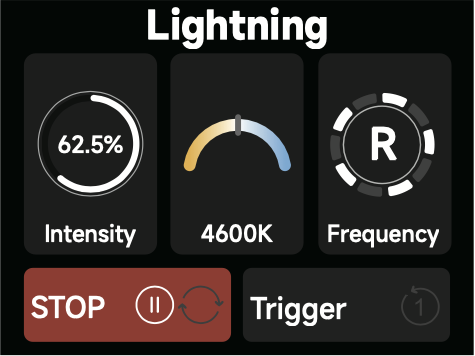

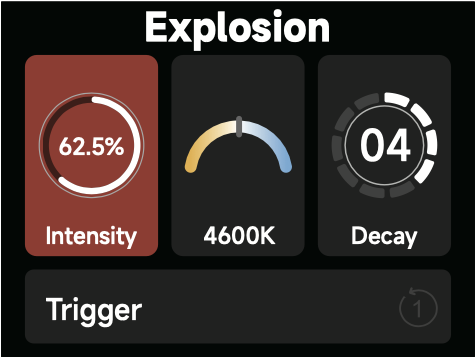

      Lightning Mode Fireworks Mode Explosion Mode

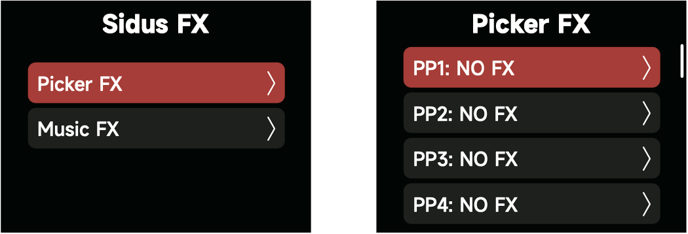

      Sidus FX Mode

      Select either Picker FX or Music FX. Both custom FX choices can save up to 10 FX. "NO FX" indicates that nothing has been saved to this slot. Untitled indicates that an effect has been saved to the slot. The two types of light effects can save 10 custom light effects each. The suffix "NO FX" indicates that no light effect has been saved.

      storm_1200x_sidus_fxmode
