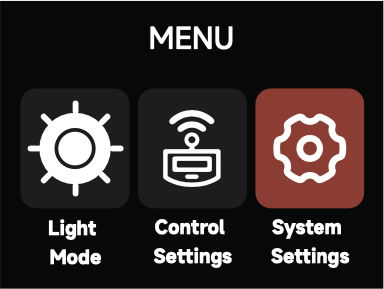

[Storm 1200x] System Settings

System Settings of Storm 1200x

System Settings include: Dimming Curve, Output Settings, White Light Standard, Lead/Fol-
low Mode, High-Speed Mode, Fan Mode, Studio Mode, Screensaver Settings, Language,
Product Info, Firmware Update, and Factory Reset options.

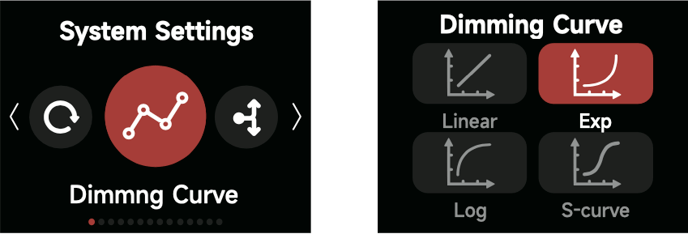

1. Dimming Curve


   The following Dimming Curves are available: Linear, Logarithmic, S-Curve and Exponential.

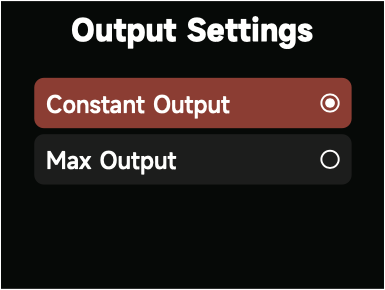

2. Output Settings

   1. Constant Output: The lamp's brightness is kept consistent throughout the color temperature range.

   2. Max Output: The lamp's brightness is prioritized throughout the color temperature range.

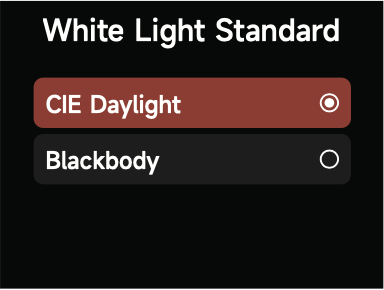

3. Light Standard

   1. CIE Daylight: meets the sunlight standard
      (5000K-10000K, Duv is controlled at 0.0020~0.0040);

   2. Blackbody: meets the blackbody luminescence standard
      (Duv is controlled near the blackbody trajectory line).

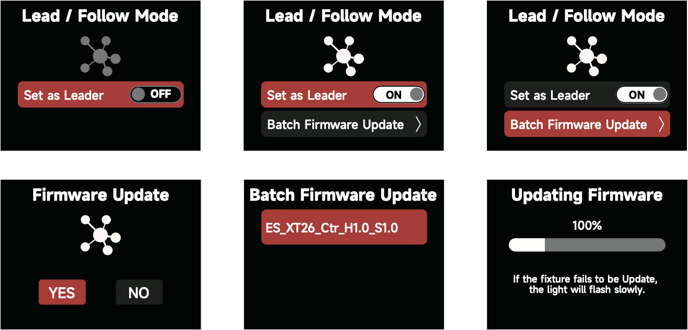

4. Lead/Follow Mode
   In this interface, set fixtures as either the Leader or the Follower (Leader/"OFF").
   The Leader automatically sends its settings to the Follower fixtures for synchronization.
   Batch upgrades of the firmware from a USB drive in the Leader's port is also possible.



   The leader fixture should be connected with the followers via DMX to enable this function.

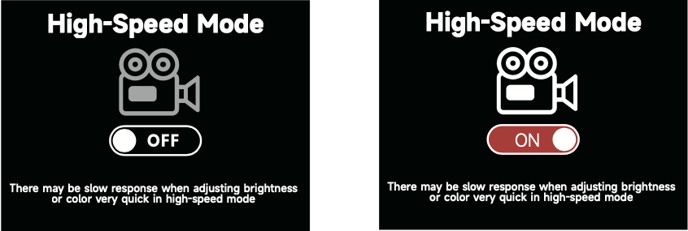

5. High-Speed Mode




   If High-Speed Mode is ON:
   1. The intensity of the lamp is set to a minimum of 20%. No level below 20% is allowed while using High-Speed Mode.
   2. FX Modes cannot be utilized in High-Speed Mode.
   3. Controlling the light with DMX data is not allowed in High-Speed mode. If the unit detects
      DMX data, then High-Speed Mode is automatically disabled.

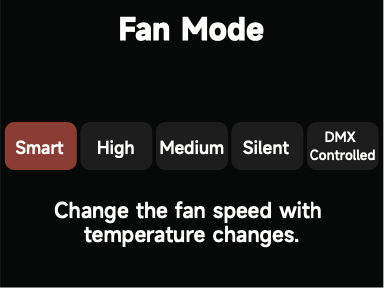

6. Fan Mode
   In the System Settings Fan Mode, rotate the Select Wheel and press to choose between Smart,
   High, Medium, Silent and DMX Controlled Fan Mode.




   When using the DMX Controlled Fan Mode, the options for the Fan are:

   1. Smart: able to work in -20°C/-4°F through 45°C/113°F environment, the lamp will automatically adjust the fan speed according to different ambient temperatures.
   2. Max: able to work in -20°C/-4°F through 45°C/113°F environment, fan will maintain its highest speed. In High-Speed Mode, the fan uses the Max Fan setting.
   3. Medium: Capable or working in -20°C/-4°F through 35°C/95°F environments, the fan uses a medium speed. Medium is the slowest speed possible for Maximum Output.
   4. Low: fixture output is reduced by 75% of maximum output.
   5. Delayed: Fan is off for 90 seconds or until the lamp head reaches 75°C; then the fan is automatically turn on for the lamp head's protection.
   6. Silent: When working in an environment of -20°C.-45°C/113°F, the fan stays OFF, but the output of the lamp is limited to 75W.

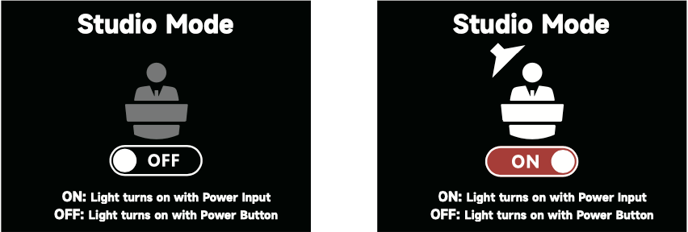

7. Studio Mode
   When Studio Mode is enabled (ON), the fixture will power on when connected to live power.
   When Studio Mode is disabled (OFF), press the power button to power on or power off the
   fixture.

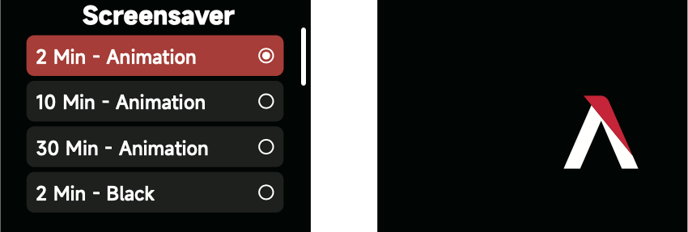

8. Screensaver
   Select the Screensaver time and display behavior.

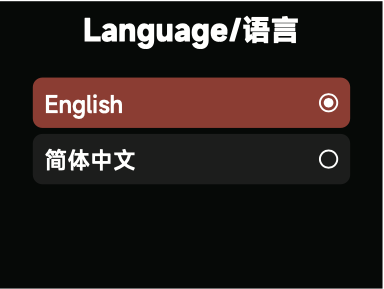

9. Language
   Select between English or Chinese and press the Select Wheel to confirm.

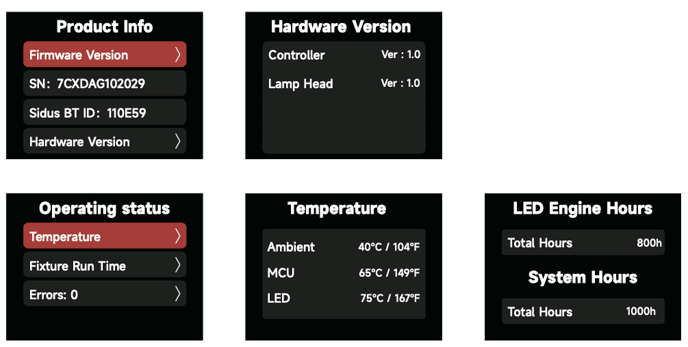

10. Product Information
    The Firmware Version, SN, Sidus BT ID, Hardware Version and Operating status, can all be
    checked in the Product Info interface.
    1. Firmware Version: display the Firmware Version of the Control Box and attached Lamp
       Head.
    2. SN: Serial Number
    3. Sidus BT ID.
    4. Hardware Version: display the hardware versions of the Control Box and attached Lamp
       Head.

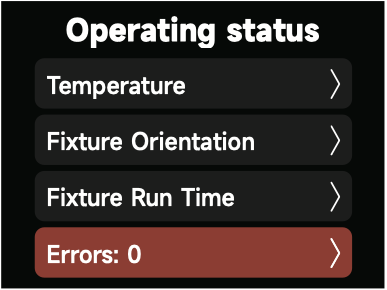

    5. Operating status: display the Temperature, Control Box and attached Lamp Head Run
       Time, and any Error Code.

    6. Errors are divided into two categories:
       1. Serious Error: When a serious error occurs, the fixture cannot be used and will be locked for protection. Please respond to the error according to the fault prompt.
       2. General Error: When a general error occurs, the fixture is still available for use; enter the Product Info interface to view the error details.

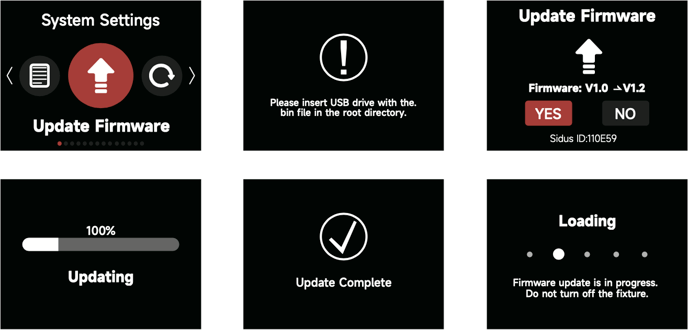

11. Firmware Update

    Upgrade the firmware by inserting a USB flash drive with the latest firmware on its root drive into the USB-A port of the Control Box. The current firmware version is also listed in this interface.

    The fixture can also be updated via Sidus Link or Sidus Link Pro with Sidus BT turned ON and a Wi-Fi internet connection on your Sidus Link device. Remember to update both the Control Box and connected Lamp Head with any new firmware.

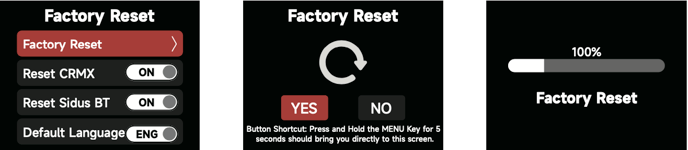

12. Factory Reset
    Select ''YES" if you wish to Factory Reset the fixture. Select "NO" to cancel.
    Choose to Reset CRMX, Reset Sidus BT, Default Language. Hold the Menu button for 5 seconds for a Factory Reset shortcut to appear.
    Factory Settings:


    Light Mode	CCT; Color Temperature:3200K
    Intensity	0
    Output Mode	Maximum Output
    Lead/Follow Mode	Off
    High-Speed Mode	Off
    Screensaver	30 Minutes
    White Light Standard	CIE Daylight
    Fan Mode	Smart
    Dimming Curve	Linear
    Studio Mode	On
    Fx Mode	Fireworks, Brightness 0%, Color Temperature 3200K, Frequency 5
    DMX	Channel 001, Hold Last Look DMX Termination Off, DMX Smooth: Smooth
    Ethernet	sACN IP Address: 192.168.2.16 Gateway: 192.168.2.1 Universe: 001
