[STORM 400x] CRMX Settings

CRMX Settings of STORM 400x

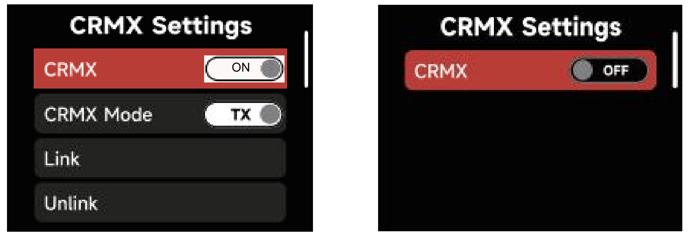

Turn CRMX ON or OFF.

CRMX ON OFF

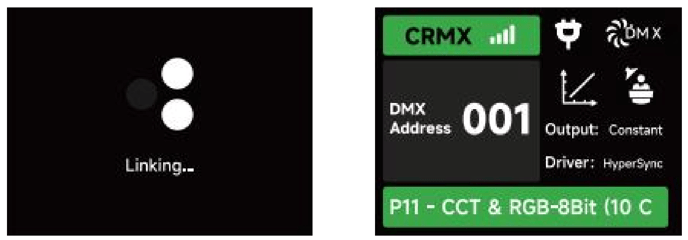

1) When CRMX is ON/Enabled, the fixture will listen for its previously linkedTransmitter. If the fixture is currently unlinked, it will listen for a Transmitter link signal and link to any new CRMX link signal. Users can Unlink from previously linked Transmitters by selectingUnlink. Once a CRMX Link is established and DMX data is present, the display will change to the DMX Status Screen.

Linking

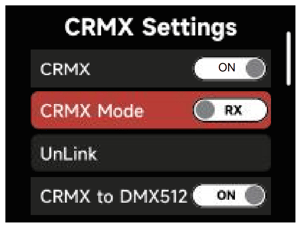

2) When in CRMX RX Mode, CRMX to DMX512 "ON" pushes the received DMXdataoutofthe DMX Out Port. If "OFF", then no data is pushed out of the DMX Out Port.

CRMX RX

3) When utilizing CRMX TX Mode, the Light can transmit DMX data to receivers using CRMX. While acting as a CRMX TX, the Control Box can set a Linking Key for RX's to link to.

CRMX TX

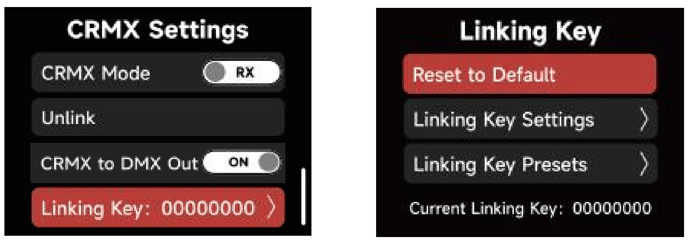

4) While acting as a CRMX TX, the Control Box can have a Linking Key for RX's to link to.

Linking Key

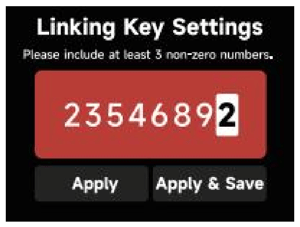

a. In the Linking Key interface, choose an 8 digit number to be the Linking Key. Threedigits cannot be "0".

Linking Settings

b. Choosing "Apply" sets the Linking Key. Presets can be saved for future use by selecting "Apply & Save".

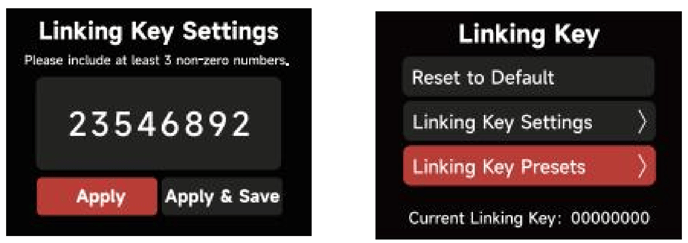

Linking Apply

c. Save 10 Presets in total.

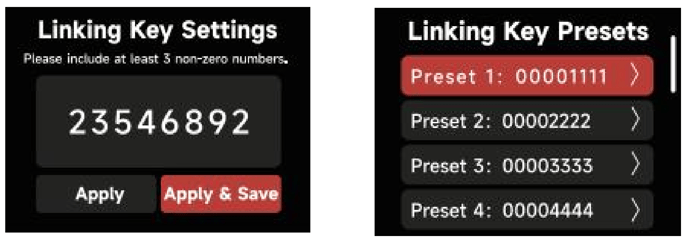

Linking Apply & Save

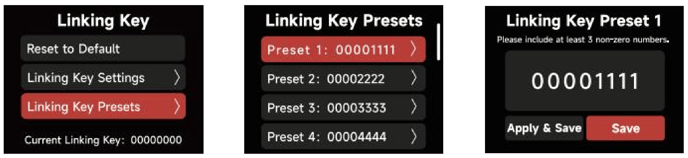

d. In the Linking Key Preset interface, save up to 10 Presets by choosing "Save" or set the Control Box's Linking Key and save it as the selected Preset by choosing Apply and Save.

Linking Presets

5) CRMX RX (Receiving) Status.

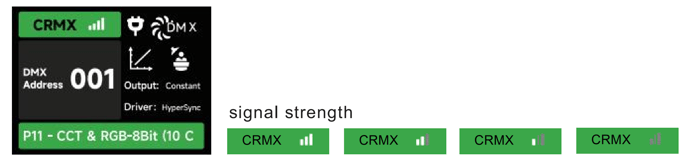

a. Signal Strength: When DMX data is provided to the Control Box acting as an RX, theDMX Status Screen will indicate the CRMX signal strength the Control Box is receiving.

CRMX RX

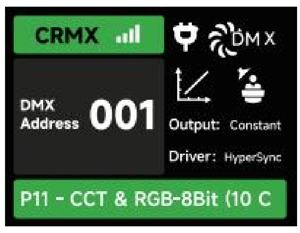

b. CRMX Signal is good and DMX data is present.

CRMX Signal

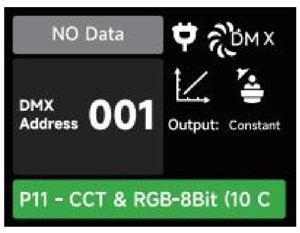

c. No DMX data present.

No DMX

d. The Control Box CRMX RX is out of range of its TX. Check that the TX is powered On and within range.

CRMX Control Box
