🚥Operation

[STORM 400x] DMX Settings

DMX Settings of STORM 400x

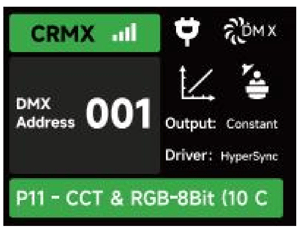

1) DMX Status Screen: Displays DMX data status, the DMX address, the DMX Profile being used, the CRMX Signal Strength, Fan Mode, Dimming Curve, Studio Mode in use, Output Mode, Power Status and more.

DMX Settings 2

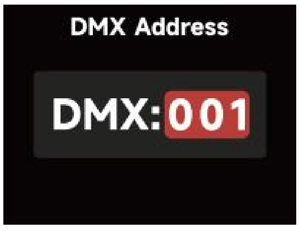

2) DMX Address: Set the DMX address of this device.

DMX Address

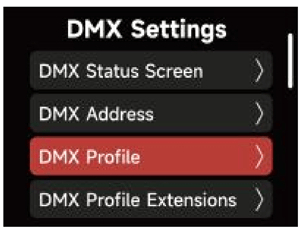

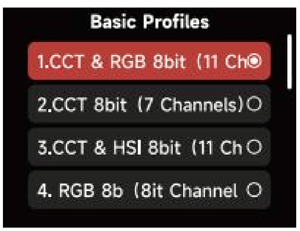

3) DMX Profile: Choose which DMX Profile to use. Refer to the DMX Chart for the specifics of each profile.

      DMX Profile        Basic Proflies

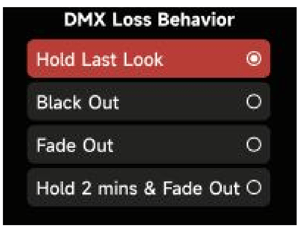

4) DMX Loss Behavior--Choose from the following options:

I: Hold Last Look: when DMX signal is lost, DMX values will be retained until signal is regained.

II. Black Out: when DMX signal is lost, the light will black out.

III. Fade to Black: when DMX signal is lost, the light will wait for 60 seconds before fading to black.

IV. Hold 2 min.&Fade Out: when DMX signal is lost, the DMX values are retained for two minutes before fading out over a time of 60 seconds.

Hold Last Look

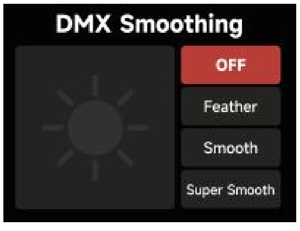

5) DMX Smoothing: Set the smoothness of DMX dimming.

DMX Off

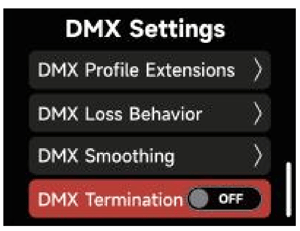

6) DMX Termination: Turn ON (to help with DMX signal reflection) or OFF.

DMX Termination

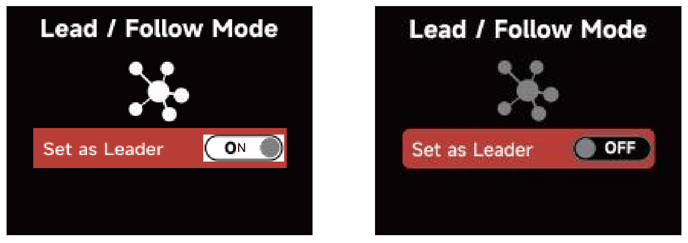

Lead/Follow Mode

In this interface, set fixtures as either the Leader or the Follower (Leader/"OFF"). The Leader automatically sends its settings to the Follower fixtures for synchronization. Batch upgrades of the firmware from a USB drive in the Leader's port is also possible.

LeadFollow

The leader fixture should be connected with the followers via DMX to enable thisfunction.
