[STORM 400x] Lighting Modes

Lighting Modes of STORM 400x

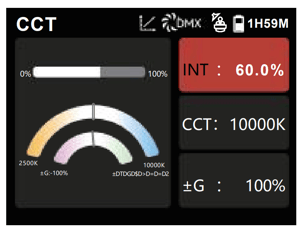

CCT

Adjust the Color Temperature (2500K-10000K) and the ±Green level (±100%).

CCT

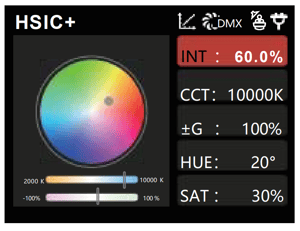

HSIC+

Adjust the Intensity (0-100%), Color Temperature (1800K-20000K), ±Green level (-100%through +100%), Hue, and Saturation.

HSIC+

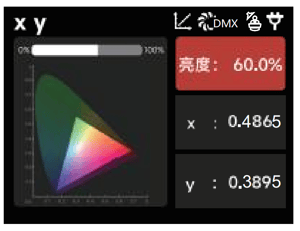

xy

Set the x coordinate value (0.1556~0.6814) and y coordinate value (0.0307~0.5456) and the Intensity.

xy

FX

Select between FX modes: Fireworks / Explosions / Flames / Paparazzi / DefectiveBulb/TV /Pulse / Flash/ Lightning.

Fire1

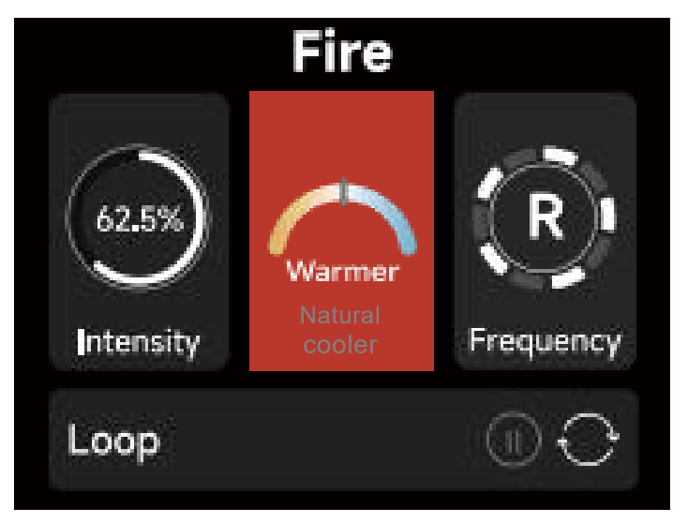

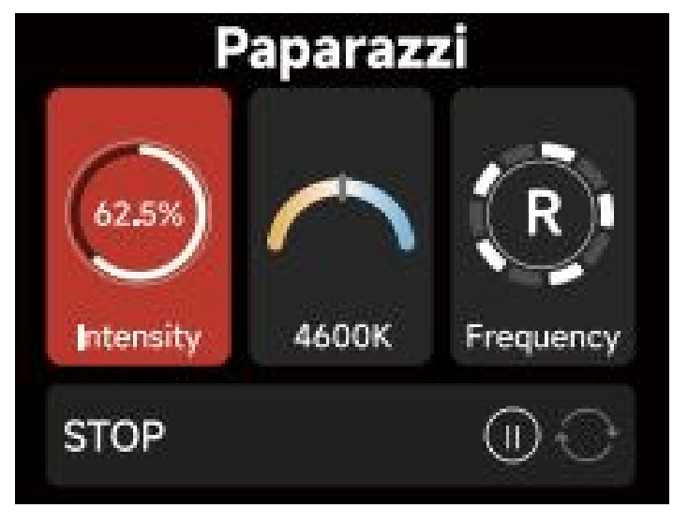

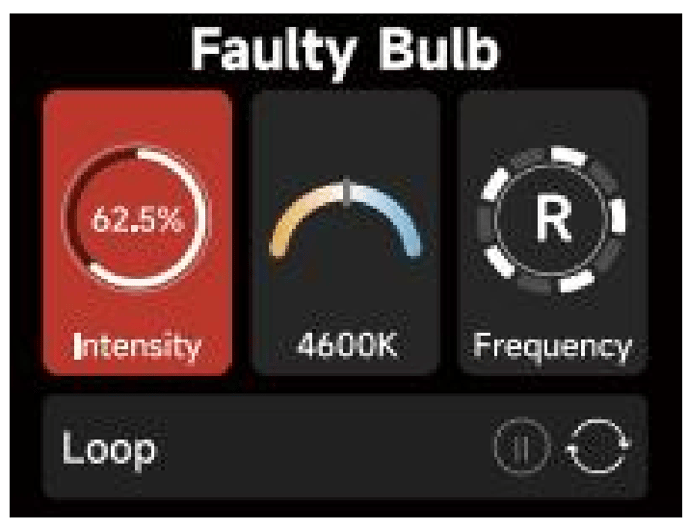

Fire2 Paparazzi Faulty Bulb
Flame Mode Paparazzi Mode Faulty Bulb Mode

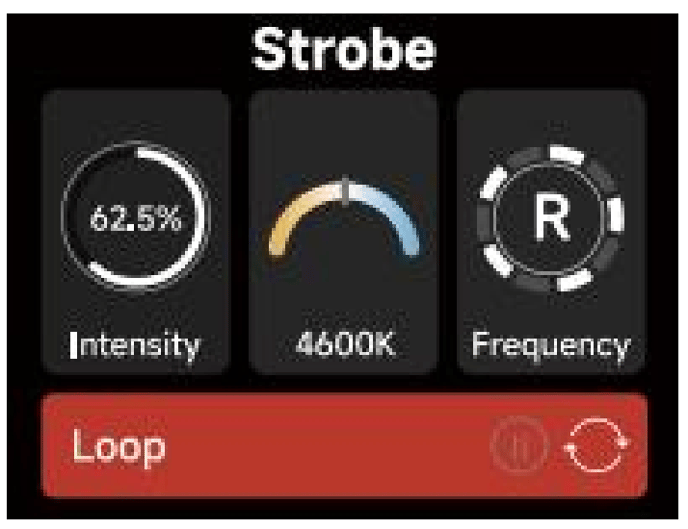

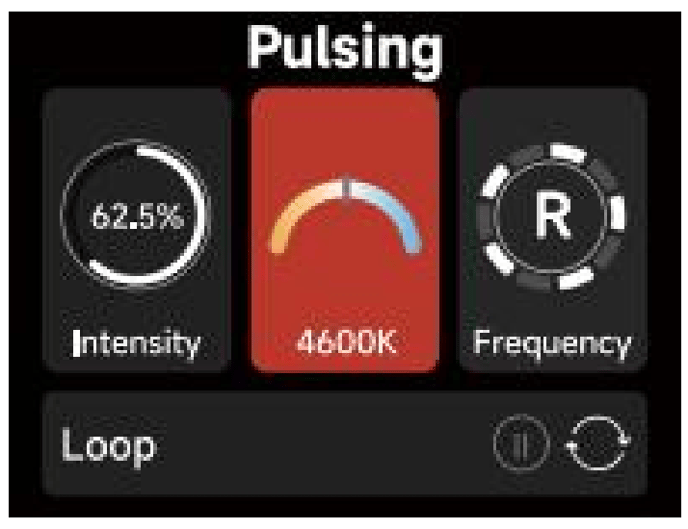

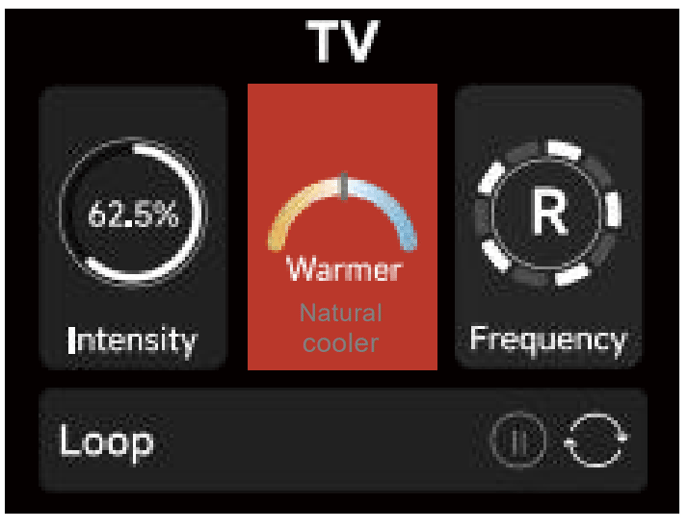

TV Pulsing Strobe
TV Mode Pulse Mode Flash Mode

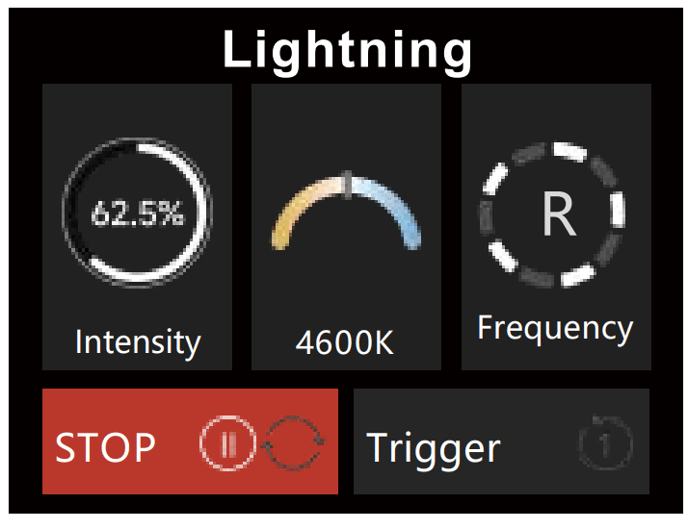

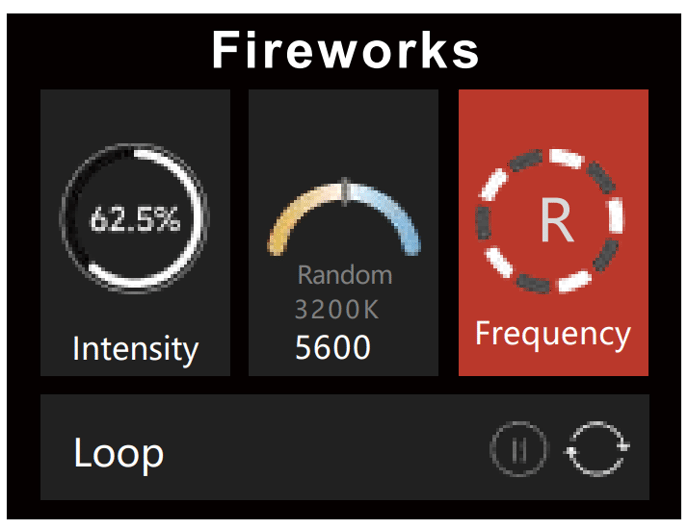

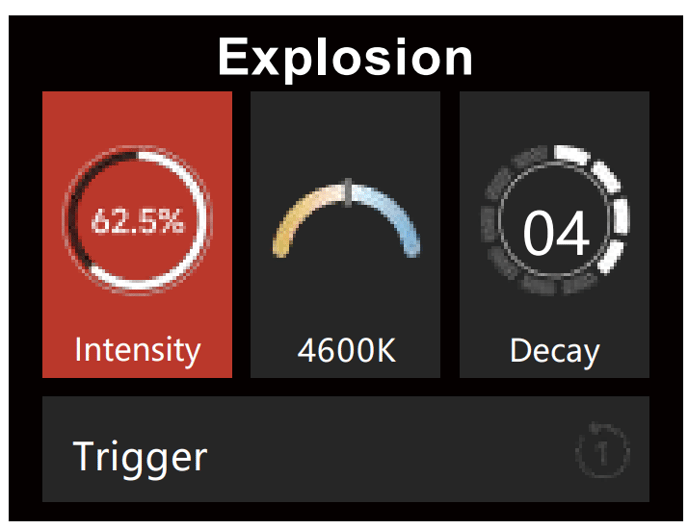

Lightning Fireworks Explosion
Lightning Mode Fireworks Mode Explosion Mode

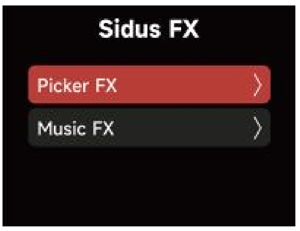

Sidus FX Mode

Select either Picker FX or Music FX. Both custom FX choices can save up to10 FX. "NO FX" indicates that nothing has been saved to this slot. Untitled indicates that an effect has been saved to the slot. The two types of light effects can save 10 custom light effects each.The suffix "NO FX" indicates that no light effect has been saved.

Sidux FX

You can download custom lighting effects by connecting to the Sidus LinkAPP.
