[STORM 400x] Setting up and Powering

Setting up and Powering STORM 400x

Powering On/Off

Connect the power supply and press the power button on the Control Box to turn on/off.

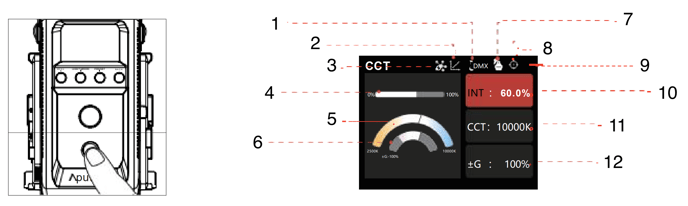

OI1

  1. Fan Mode

  2. Dimming Curve
  3. Lead/Follow Mode
  4. Intensity
  5. Color Temperature

  6. ±G

  7. Studio Mode
  8. White Light Standard Mode
  9. AC Power
  10. Intensity
  11. Correlated Color Temperature
  12. Green/Magenta Adjustment

If your fixture has Studio Mode "ON", the Control Box will power on whenever power is supplied to it. If DMX data is present when power is applied, the fixture turns on even with Studio Mode OFF.

Lead/Follow Mode: Leader Leader

Sidus BT Enabled

 Sidus BT
Lead/Follow Mode: Follower Follower

Receiving CRMX data

 Receiving CRMX Data

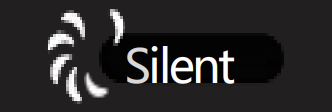

Fan Mode: Silent Silent CRMX connected, no DMX data no DMX data

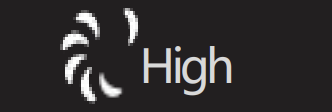

Fan Mode: High High

Connected to CRMX, no transmitter found

 No transmitter found

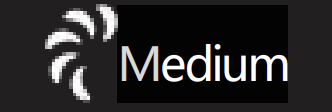

Fan Mode: Medium Medium AC Power Detected AC Power

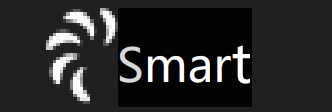

Fan Mode: Smart Smart

CIE Daylight

 CIE

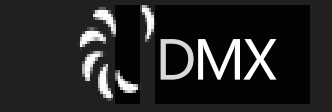

Fan Mode: DMX DMX

Blackbody

 Blackbody
Battery Power Battery Power

Studio Mode: OFF

 Studio Mode Off
Studio Mode: ON Studio On

Dimming Curve: Linear

 Linear
Dimming Curve: S-Curve S-Curve

Dimming Curve: Exponential

 Exponential
Dimming Curve: Logarithmic Logarithmic / /
