      [STORM 80c] Getting Started

      Setting up your STORM 80c

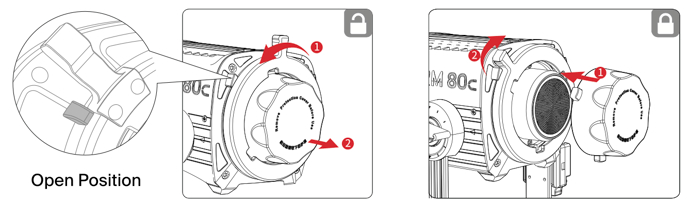

      Attaching/Detaching the Protection Cover

      To detach the cover, rotate the Pro-Lock Handle to the open position and remove it.

      To reattach the cover, insert it into place and rotate the Pro-Lock Handle clockwise until locked.

      storm_80c_atttachingdetaching_the_protection_cover

      Before use, please make sure to remove the protective cover. During transportation and storage, please attach the protective cover.

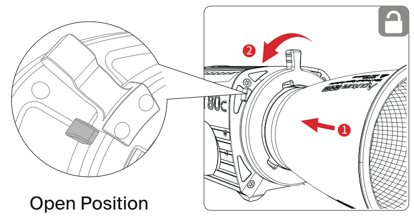

      Attaching/Detaching the Reflector

      To attach the Reflector, insert it into the Mini Prolock Mount and rotate the Pro-Lock Handle clockwise until locked. To detach the Reflector, rotate the Pro-Lock Handle to the open position and remove it.

      storm_80c_installation_of_a_reflector storm_80c_reflector_removal
      Installation of a Reflector Reflector Removal

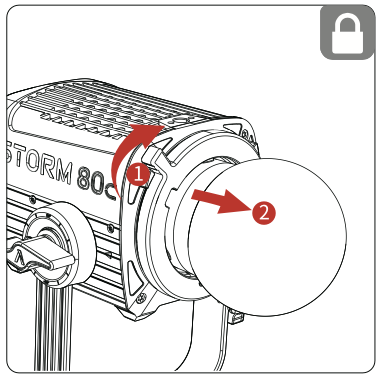

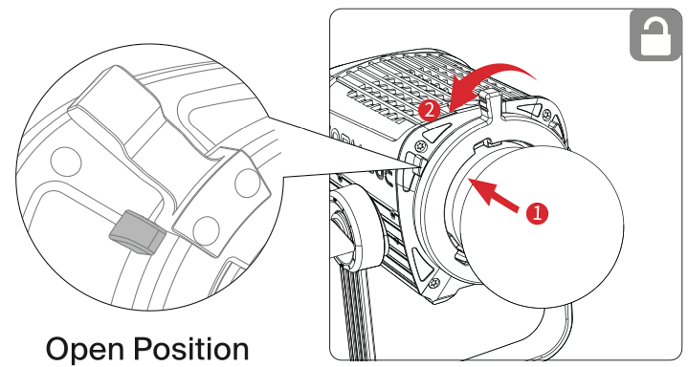

      Attaching/Detaching the Mini Lantern Diffuser

      To attach the Mini Lantern Diffuser, insert it into the Mini Prolock Mount and rotate the Pro-Lock Handle clockwise until locked. To detach the Mini Lantern Diffuser, rotate the Pro-Lock Handle to the open position and remove it.

      storm_80c_installation_of_diffuser storm_80c_diffuser_removal
      Installation of Diffuser Diffuser Removal

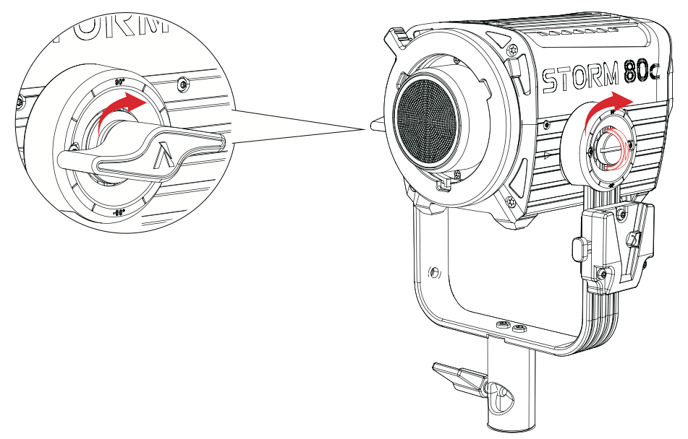

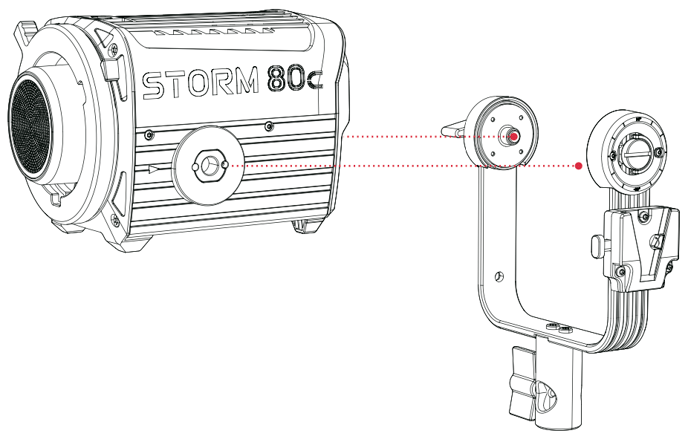

      Attaching/Detaching the Yoke

      Loosen or tighten the Locking handle and tie down for attaching/detaching the Yoke.

      storm_80c_attachingdetaching_the_yokestorm_80c_attachingdetaching_the_yoke_2Setting Up the Lamp

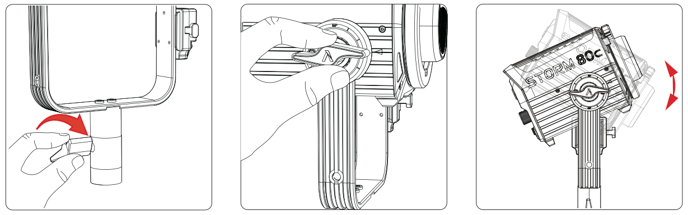

      Mount the Lamp Head onto a Baby Pin and tighten in place. Loose or tighten the tilt lock on the yoke to adjust the fixture's angle of tilt.

      storm_80c_setting_up_the_lamp
