[STORM 80c] Light Modes

Light Modes of STORM 80c

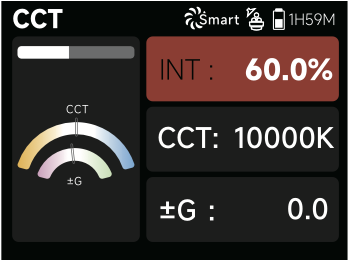

CCT

Adjust the Color Temperature (1800K-20000K) and the ±Green levels (-100% through +100%)

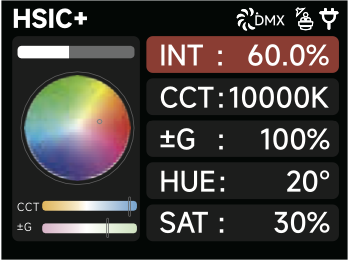

HSIC+

Adjust the Intensity (0-100%), Color Temperature (1800K-20000K), ±Green level (-100% through +100%), Hue and Saturation.

RGB

Set the values of Red, Green, and Blue (0-100%) to achieve the desired color; then use the Master Intensity to raise and lower the overall brightness of the fixture without changing the colors individually.

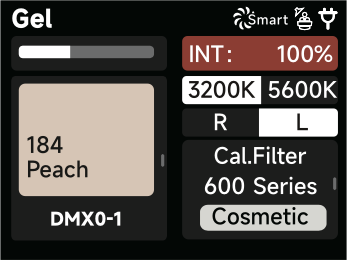

GEL

Choose a base Color Temperature of 3200K or 5600K color and the corresponding Rosco or LEE gel to output the desired light.

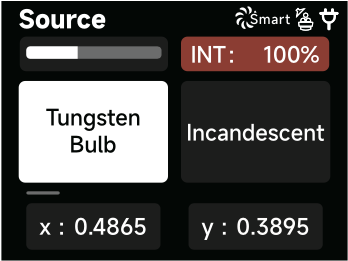

Source

Select the light source to mimic and fine tune the xy coordinates

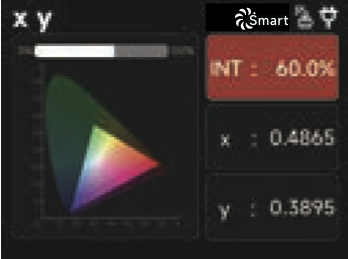

x y

Set the intensity, x and y coordinate value (0-0.8000).

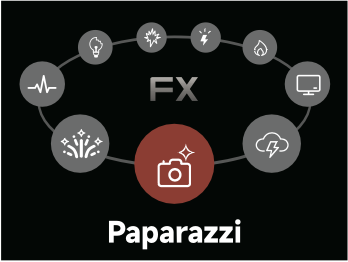

FX

Select between FX modes: Fireworks / Explosions / Flames / Paparazzi / Defective Bulb / TV / Pulse / Party Lights / Club / Color Chase / Candle / Welding / Police Car / Flash / Lightning.

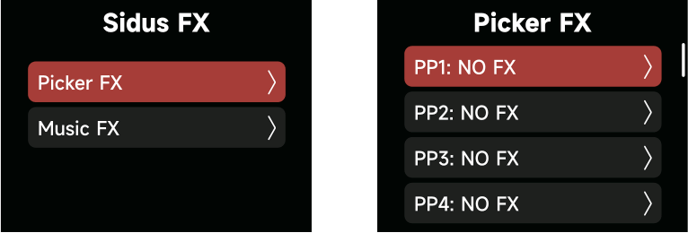

Sidus FX Modes

Select either Picker FX or Music FX. Both custom FX choices can save up to 10FX. "NO FX" indicates that nothing has been saved to this slot. Untitled indicates that an effect has been saved to the slot. The two types of light effects can save up 10 custom light effects each. The suffix "NO FX" indicates that no light effect has been saved.
