[STORM 80c] System Settings

System Settings of STORM 80c

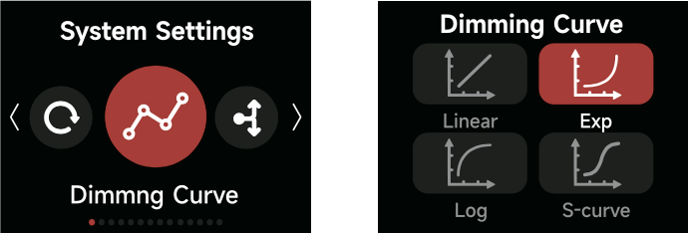

Dimming Curve

The following Dimming Curves are available: Linear, Logarithmic, S-Curve and Exponential.

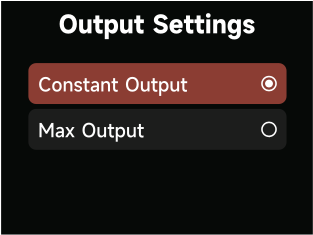

Output Settings

Constant Output:

The lamp's brightness is kept consistent throughout the color temperature range.

Max Output:

The lamp's brightness is prioritized throughout the color temperature range.

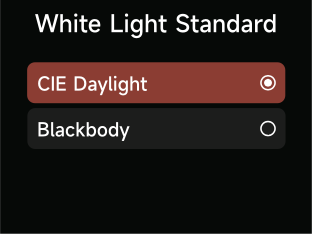

White Light Standard

CIE Daylight: meets the sunlight standard

(5000K-10000K, Duv is controlled at 0.0020~0.0040);

Blackbody: meets the blackbody luminescence standard

(Duv is controlled near the blackbody trajectory line)

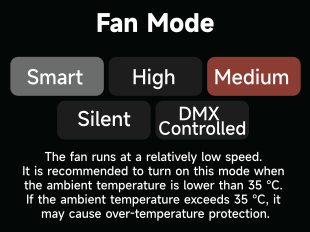

Fan Mode

In the System Settings Fan Mode, rotate the Select Wheel and press to choose between Smart, High, Medium, Silent and DMX Controlled Fan Mode.

When using the DMX Controlled Fan Mode, the options for the Fan are:

1. Smart: able to work in -20°C/-4°F through 45°C/113°F environment, the lamp will automatically adjust the fan speed according to difference ambient temperatures.

2. High: able to work in -20°C/-4°F through 45°C/113°F, fan will maintain its highest speed. In High-Speed Mode, the fan uses the Max Fan setting.

3. Medium: Capable of working in -20°C/-4°F through 35°C/95°F environments, the fan uses a medium speed. Medium is the slowest speed possible for Maximum Output.

4. Silent: When working in an environment of -20°C/-4°F-45°C/113°F, the fan stays OFF, but the output of the lamp is limited to 20W.

5. DMX Controlled: See the STORM 80c DMX Chart for details.

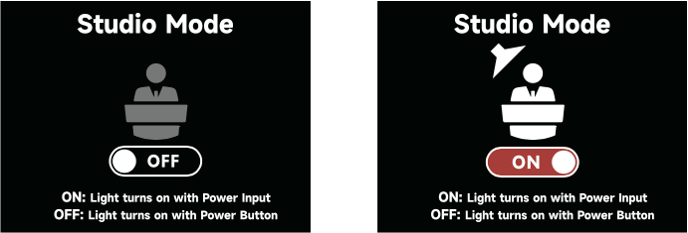

Studio Mode

When Studio Mode is enabled (ON), the fixture will power on when connected to live power. When Studio Mode is disabled (OFF), press the power button to power on or power off the fixture.

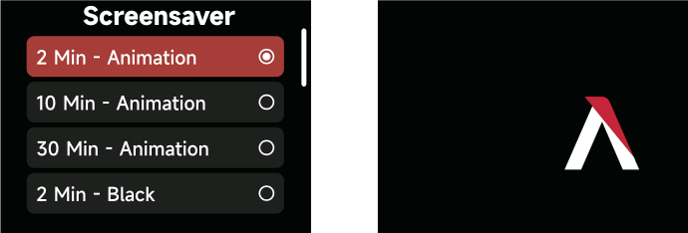

Screensaver

Select the Screensaver time and display behavior.

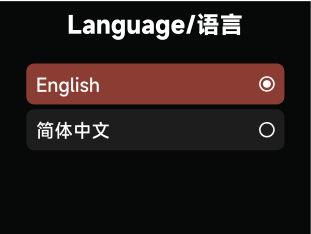

Language

Select between English or Chinese and press the Select Wheel to confirm.

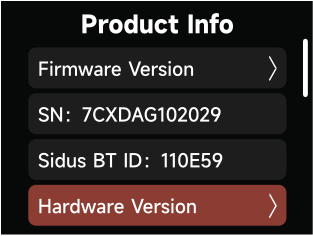

Product Information

The Firmware Version, SN, Sidus BT ID, Hardware Version and Operating Status, can all be checked in the Product Info interface.

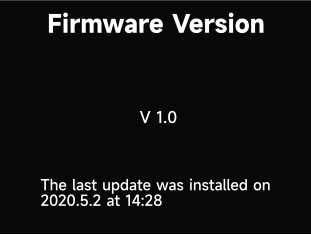

1. Firmware Version: display the Firmware Version of the Control Box and attached Lamp Head.

2. SN: Serial Number

3. Sidus BT ID

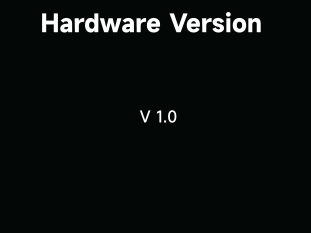

4. Hardware Version: display the hardware versions of the Control Box and attached Lamp Head.

5. Operating Status: display the Temperature, Lamp Head Run Time, and any Error Codes.

1. Firmware Version: display the Firmware Version of the Lamp.

2. Hardware Version: display the hardware version of the Lamp Head.

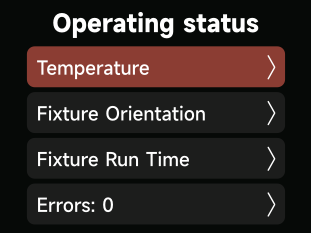

3. Operating Status: display the Temperature, Lamp Head Run Time, and any Error Codes.

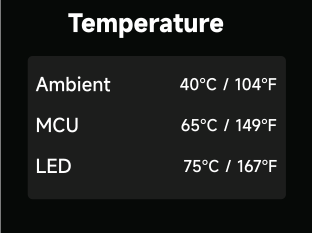

a. Temperature: Display the Ambient temperature, MCU temperature, and LED temperature.

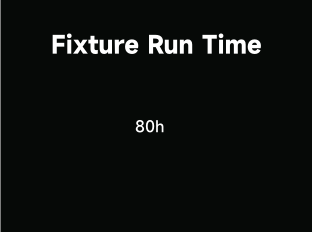

b. Fixture Run Time: Display the LED engine use time

c. Errors:

If the lamp is operating as expected, then the display will read: "Errors: 0" Errors are divided into two categories.

i. Serious error: When a serious error occurs, the fixture cannot be used and will be locked for protection. Please respond to the error according to the fault prompt.

ii. General error: When a general error occurs, the fixture is still available for use; enter the Product Info interface to view the error details.

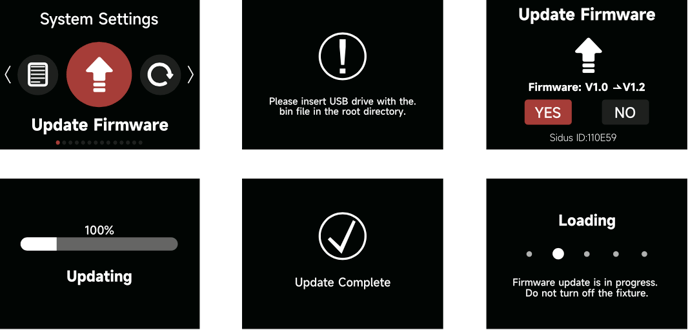

Firmware Update

Upgrade the firmware by inserting a USB flash drive with the latest firmware on its root drive into the USB-A port of the Control Box. The current firmware version is also listed in this interface.

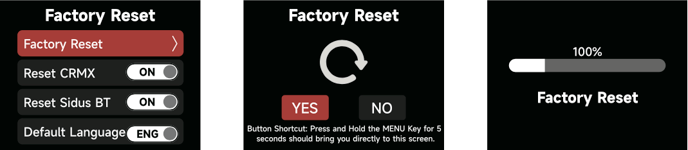

Factory Reset

In the Factory Reset Menu, select "YES" if you wish to Factory Reset the fixture; select "NO" to cancel. Choose whether to reset the CRMX and Sidus BT and the desired Default Language.

Factory Settings:

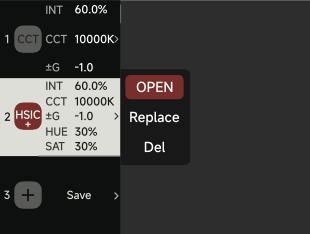

Presets

10 Light Mode Presets can be saved. Choose your settings within the CCT, xy, or FX mode.

Then press the PRESET button to open the Preset Interface. Select the Preset number to open, replace or delete the Preset.
