[STORM 1200x] Accessing the Menu

Accessing the Menu of STORM 1200x

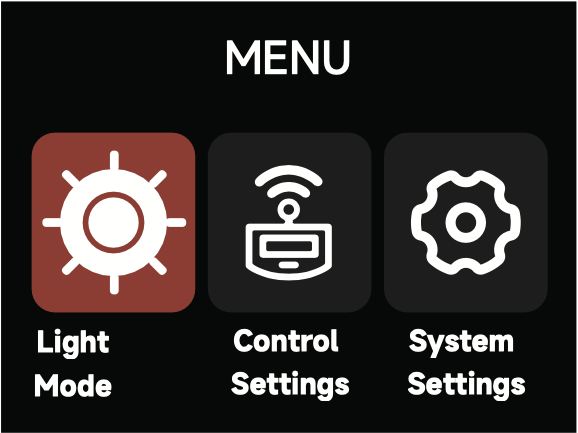

Press the MENU button to enter the System Menu interface. Choose between Light Mode, Control Settings or System Settings.

storm_1200x_menu

Accessing Lighting Modes

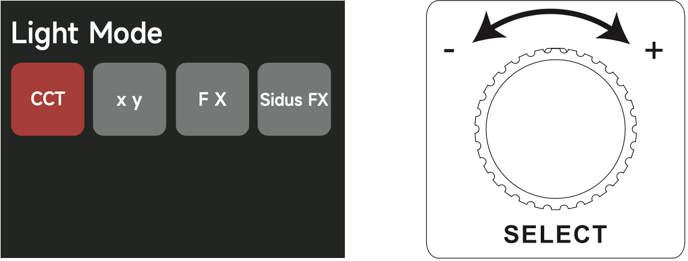

Press the Light Mode Button on the Control Box to enter the Light Mode interface. Choose

between CCT, xy, FX, and Sidus FX Modes.

storm_1200x_accessing_lighting_modes

Light Modes can only be accessed when no DMX data is present. Please ensure that
DMX data is not being listened to by the Control Box in order to use Light Modes.

Please click here to access different Lighting Modes



Control Settings

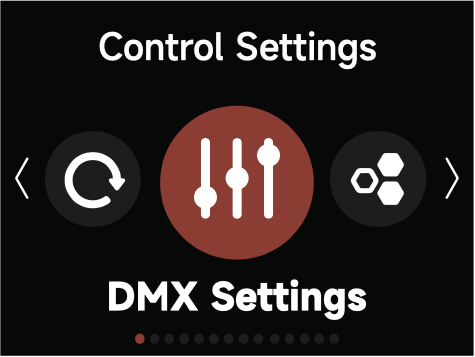

Choose between: DMX Settings, CRMX Settings, Sidus BT Settings and Ethernet Settings.

storm_1200x_control_settings

System Settings

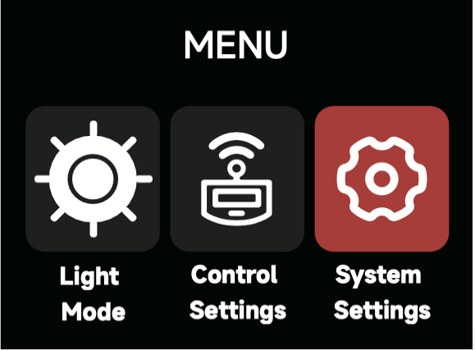

System Settings include: Dimming Curve, Output Settings, White Light Standard, Lead/Follow Mode, High-Speed Mode, Fan Mode, Studio Mode, Screensaver Settings, Language, Product Info, Firmware Update, and Factory Reset options.

storm_1200x_system_settings

Presets

10 Light Mode Presets can be saved. Choose your settings within the CCT, xy or FX Mode.
Then press the PRESET button to open the Preset interface. Select the Preset number to
open, replace or delete the Preset.

storm_1200x_presets
